Three named reactions produce essentially every plasticizer on a PVC compounder’s shortlist: esterification of an aromatic or aliphatic acid with a long-chain alcohol, hydrogenation of an aromatic phthalate ester to its cyclohexanoate, and epoxidation of an unsaturated vegetable oil with a peracid generated in situ. The catalyst, temperature, and pressure under which each reaction runs are what set the residual species, color, water, and oxirane oxygen lines a procurement engineer reads on a supplier’s certificate of analysis. Each chemistry family below is mapped to its named route plus the spec the route controls, so the CoA your supplier sends connects back to the unit operation that put each number there.
Phthalate Esters and the Acid-Catalyzed Esterification Route

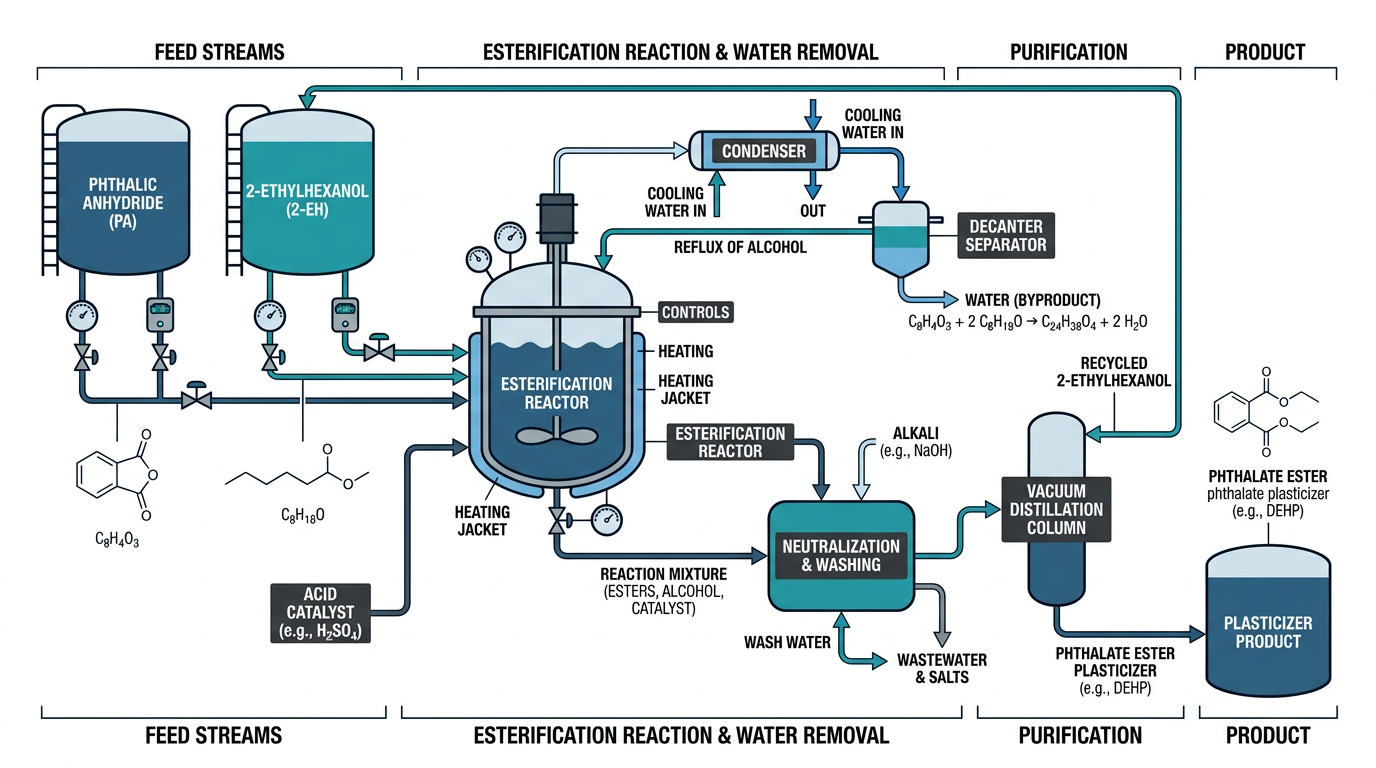

Phthalates are produced by esterifying phthalic anhydride with two equivalents of a C8-C10 alcohol over a Brønsted-acid catalyst, with continuous water removal driving conversion to completion. For dioctyl phthalate, that alcohol is 2-ethylhexanol; for diisononyl phthalate, it is a mixed isononanol (C9) stream; for diisodecyl phthalate, an isodecanol (C10) cut.
Wikipedia’s DEHP entry summarizes the route in industrial form: “produced commercially by the reaction of excess 2-ethylhexanol with phthalic anhydride in the presence of an acid catalyst such as sulfuric acid or para-toluenesulfonic acid.” The acid catalyst — historically sulfuric, increasingly p-toluenesulfonic acid (PTSA) for cleaner residual profiles — sits at 1-2 wt% loading and is neutralized and washed out before final stripping.
The route shapes the spec in a way most CoAs do not flag explicitly. Commercial DEHP is a 1:1:2 statistical mixture of stereoisomers, inherited from the racemic 2-ethylhexanol feedstock — that distribution is locked in by the alcohol, not by anything the producer adjusts at the kettle.
The CoA parameters this route controls:
- Acid value (mg KOH/g) — neutralization completeness
- Water — final stripping and dewatering
- Color (APHA / Pt-Co) — feedstock purity + any thermal abuse during esterification
- Residual catalyst — wash efficiency
For the full DINP-specific run-through — including the reactive distillation variant and the DINP-vs-DIDP alcohol cost ratio — the deep dive on how plasticizer DINP is made walks the kettle conditions step by step. The chemistry here is the most mature of the six families: esters of polycarboxylic acids were identified as the route foundation in the 1920s, and DEHP itself first ran at commercial scale in Japan circa 1933 and the United States in 1939. Roughly three million tonnes of DEHP move through global kettles annually — the route is the highest-volume ester chemistry in the plasticizer industry.
Terephthalate Esters and the Two-Route Question

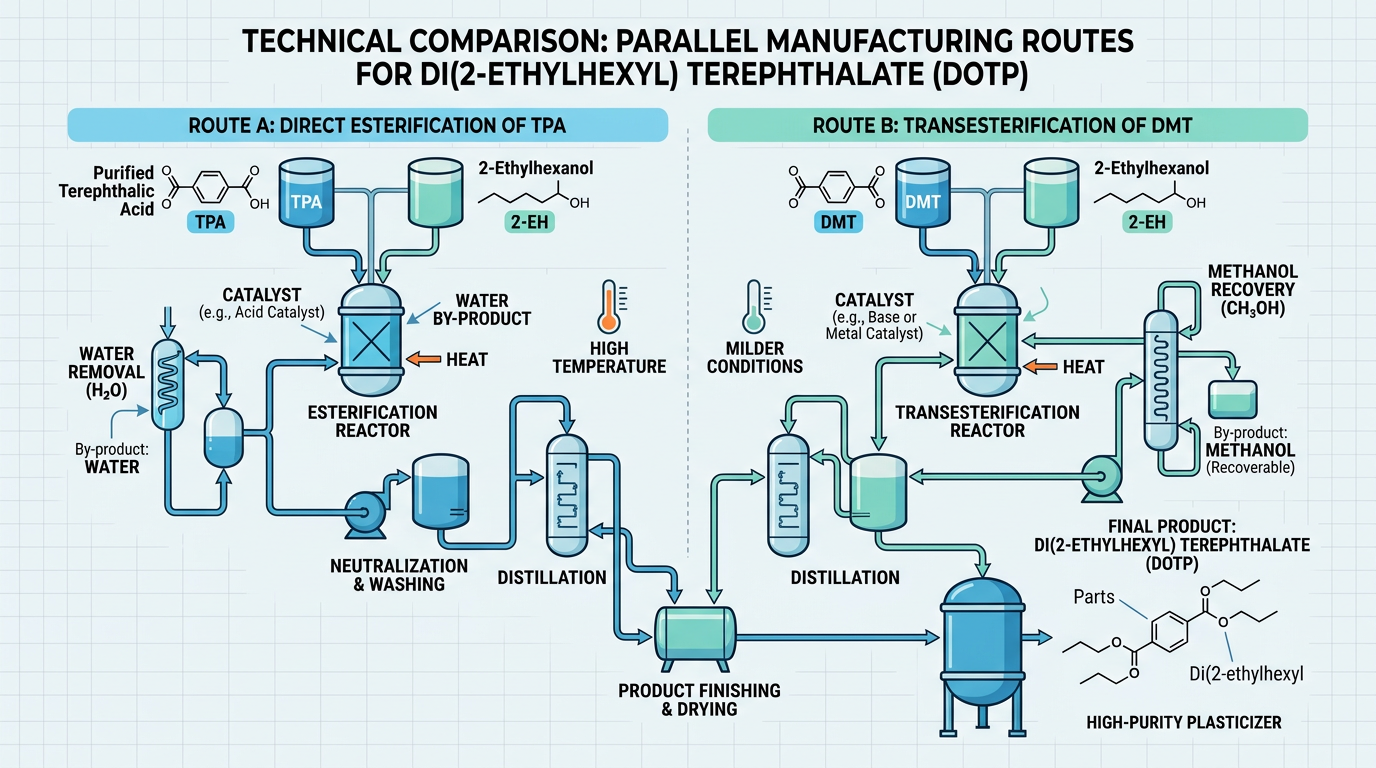

Di(2-ethylhexyl) terephthalate (sold as DEHT in some catalogs) reaches the same finished molecule by two routes that look similar on the CoA but differ at the residue level. Direct esterification heats purified terephthalic acid (PTA) with 2-ethylhexanol at a 1:2 molar ratio between 160 and 235 degC for several hours, with water removed continuously to drive equilibrium toward the di-ester.
Transesterification starts from dimethyl terephthalate (DMT) instead, exchanging the methyl ester for the 2-ethylhexyl ester and recovering methanol overhead in a distillation column. Both routes purify down to the same target purity, so the headline number on a buyer’s spec sheet looks identical across suppliers running different chemistry.
The residue profile is where the routes part. PTA esterification produces water as the only stoichiometric byproduct and leaves residual catalyst (sulfonic acid or titanate) plus unreacted PTA fines as the species the wash and filter steps must remove. DMT transesterification produces methanol as the byproduct and adds residual methanol plus titanate as the species the stripping section has to scrub.
A buyer comparing two terephthalate ester CoAs at the same purity may be looking at different residual catalyst metals, different methanol traces, and different ester intermediate carryover — none of which the purity number alone exposes.
The Metrohm AN-PAN-1053 inline-monitoring application note tracks four parameters during this esterification in real time. The CoA-visible numbers route choice controls:
- 2-ethylhexanol residual — 20.4-67.9 wt% across the kettle profile
- TPA pellet content — 0.025-31.3 wt%
- Product (di-ester) — 0-78.4 wt%
- Water — 0.1-0.5 wt%
When a CoA reports tighter water than competitors, it usually means the producer ran a longer azeotropic strip on the PTA route or held a tighter vacuum profile on the DMT route, not that the molecule itself is different.
Cyclohexanoates and the High-Pressure Hydrogenation Route
Cyclohexanoate plasticizers — the diisononyl and di(2-ethylhexyl) cyclohexane-1,2-dicarboxylates — are not made by esterification at all. They are the hydrogenation of an already-finished phthalate.

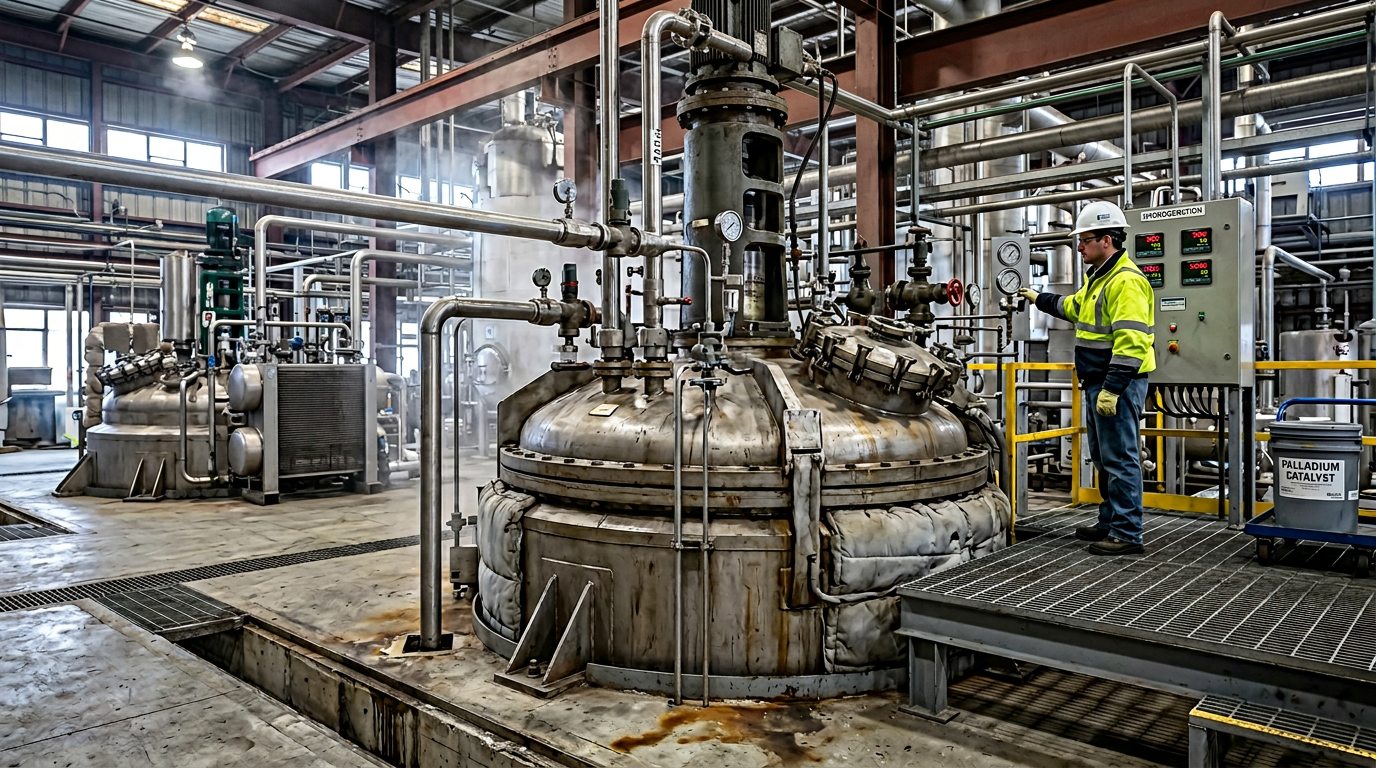

The producer first makes diisononyl phthalate by the standard PA esterification above, then loads it into a high-pressure reactor on a substrate-supported ruthenium catalyst, and saturates the aromatic ring under pure hydrogen at 120 degC and 20 MPa to deliver 100 percent phthalate conversion and 99.4 percent cyclohexanoate yield. BASF invented Hexamoll DINCH in 2002 and produces it from two operating plants in Ludwigshafen, Germany. The C8 cyclohexanoate analog (DEHCH) follows the same hydrogenation logic on a different starting phthalate.
The cost story most buyers misread sits in this two-step structure. The cyclohexanoate is more expensive than the parent phthalate not because the alcohol costs more — it is the same isononanol — but because the second unit operation carries a price tag the first one does not. The high-pressure hydrogen system, the noble-metal catalyst inventory (Ru or Pd), and the extra reactor footprint are the cost premium.
The full cyclohexanoate process detail, including catalyst loading and gas recycle economics, lives in the dedicated walkthroughs on how DINCH plasticizer is manufactured and the DEHCH plasticizer manufacturing process.
The CoA parameters this route controls are different from the phthalate family above:
- Aromatic content (residual unsaturated phthalate) — anything above ~0.5% indicates the catalyst is poisoned or residence time too short
- Residual ruthenium (ppb) — catalyst leaching + post-reactor filter efficiency
- Color — generally lighter than the parent phthalate because hydrogenation also saturates the chromophores responsible for trace yellowing
Trimellitate Esters and the Third Ester Arm

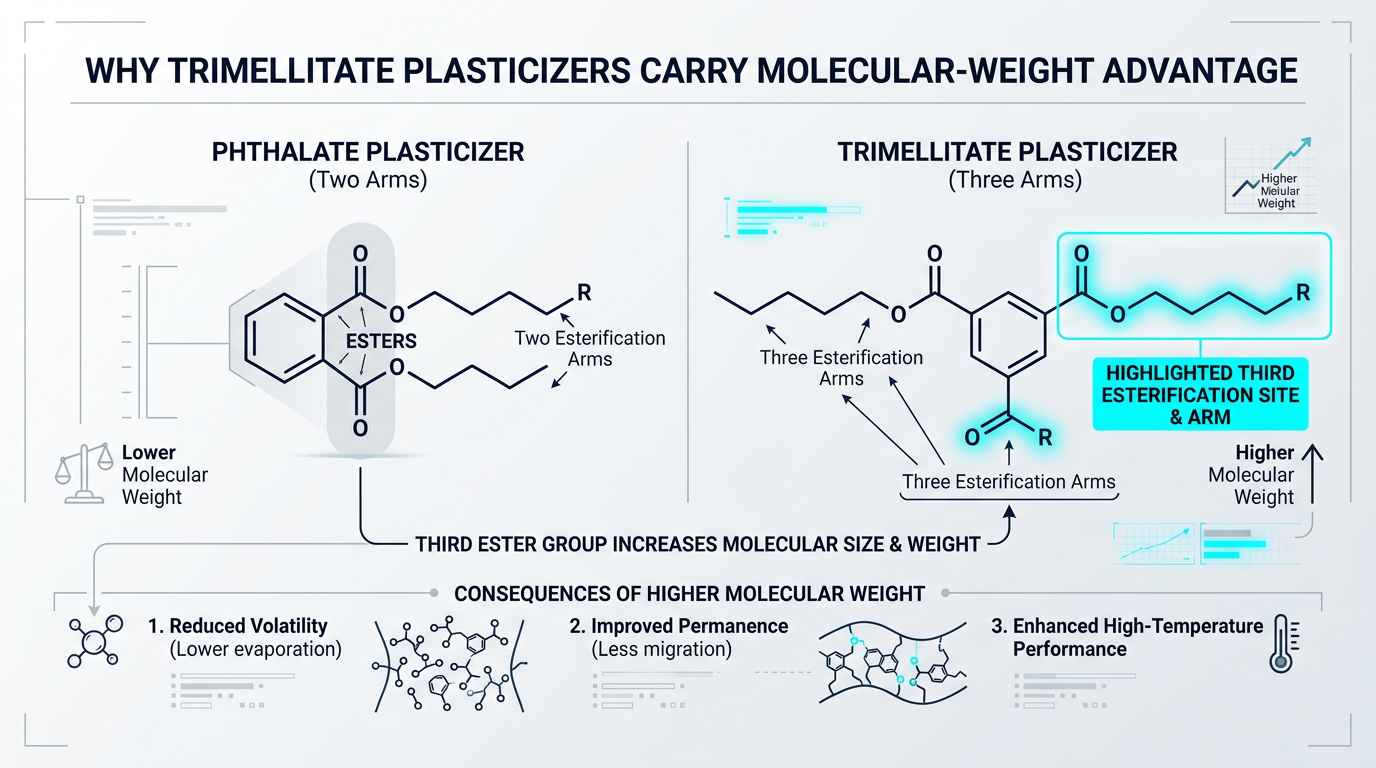

Tri(2-ethylhexyl) trimellitate extends phthalate logic by one more ester arm. The trimellitic anhydride (TMA) feed carries three carboxyl groups instead of phthalic anhydride’s two, so each trimellitate molecule reacts with three equivalents of 2-ethylhexanol — and that third esterification is what differentiates trimellitates from phthalates structurally and economically.
Industry-typical conditions hold TMA and excess 2-ethylhexanol at 150-250 degC over an acid catalyst (usually p-toluenesulfonic acid), with water continuously removed under vacuum to drive the reaction past 98 percent yield. The third esterification is slower than the first two; if the producer stops the kettle early, the CoA shows residual mono- and di-ester intermediates instead of pure tri-ester.
The trade-off for that third arm is what shows up in the CoA: trimellitates carry higher molecular weight, lower volatility, and improved long-term compatibility with PVC — which is why they dominate wire and cable insulation rated for 105 degC and above, where DOP would migrate to the surface within months.
The third ester functionality is doing the work, but the producer paid for it in process time and tighter vacuum-distillation hardware. Trimellitates also run at higher viscosity than DOP, both at the kettle and on the buyer’s compounding line — that is route-locked, not formulation-tunable.
For the TXIB-class specialty ester chemistry that sits adjacent to trimellitates on the technical-ester shelf, the industrial synthesis of TXIB plasticizer walks through the same kind of multi-step esterification at the C5/C6 acid scale.
Epoxidized Soybean Oil and the Peracid Epoxidation Route
Epoxidized soybean oil is the only plasticizer in the major shortlist made by a named reaction other than esterification or hydrogenation: epoxidation. The route runs biphasically — hydrogen peroxide reacts with formic or acetic acid in the aqueous phase to generate the corresponding peracid (performic or peracetic), which migrates into the soybean oil phase and converts the C=C double bonds in the oil’s unsaturated fatty-acid chains (mostly C18-2 linoleic and C18-3 linolenic) into oxirane rings.
A mineral acid catalyst (usually sulfuric) sits in the aqueous phase to keep the peracid generation cycling. The reaction is strongly exothermic — ChemCeed’s process description flags it explicitly as “an extremely exothermic reaction” — which makes temperature control and feed staging the safety-critical control variables.
The CoA parameter buyers care about most is oxirane oxygen content, typically reported between 6.0 and 7.2 wt%. That number is feedstock-bound, not process-tunable past a certain ceiling: the achievable oxirane oxygen tracks the soybean crop’s unsaturation profile, which tracks growing-season weather.
“Very hot, dry weather is known to inhibit the formation of the unsaturated C18-3 and C18-2 double bonds in the soybean oil and will therefore lead to lower oxirane values” — so a buyer scanning these CoAs across crop years is partly reading a weather report, with American Midwest soy generally producing the highest oxirane grades. No amount of process optimization can put double bonds into oil that the soybean did not grow.
The other CoA lines this route controls:
- Acid value — peracid neutralization completeness
- Water — post-reaction phase separation + stripping
- Iodine value — residual unsaturation that did not epoxidize (the inverse of oxirane oxygen)
This is also the route that demands the most explicit buyer attention to crop-year vintage on the spec sheet, which most CoAs do not call out without prompting.
Citrate Esters: ATBC and TBC
Citrate plasticizers (ATBC, acetyl tributyl citrate; TBC, tributyl citrate) are the route that starts from a fundamentally different feedstock origin: fermented citric acid rather than petroleum-derived acid or oil.
The PMC review on biomass-derived plasticizers anchors the feedstock pedigree directly: “Citric acid has been commercially produced through large-scale fermentation, thus undoubtedly is considered a raw material for producing plasticizers for PLA.” The base esterification reacts citric acid with three equivalents of n-butyl alcohol over an acid catalyst to give TBC; an optional acetylation step then converts the central tertiary hydroxyl to an acetate ester, yielding ATBC and the food-contact-grade migration profile that drives most citrate selection in toy and medical-tubing applications.
The CoA story for citrates is dominated by trace-fermentation residues from the citric acid feedstock — residual oxalate, residual sulfate, and trace heavy metals at the ppb level — that have no analog in the petroleum-derived families above. The acetylation step adds residual acetic acid and residual acetic anhydride to the species the stripping section must remove. Color and water are controlled by the same wash-and-strip logic as the phthalate route, but the upstream feedstock variability (fermentation broth quality varies more than petrochemical feedstock) gives citrate suppliers a wider QC band than DOP suppliers operate within.
How Plasticizer Manufacturing Routes Compare on Cost and Compliance

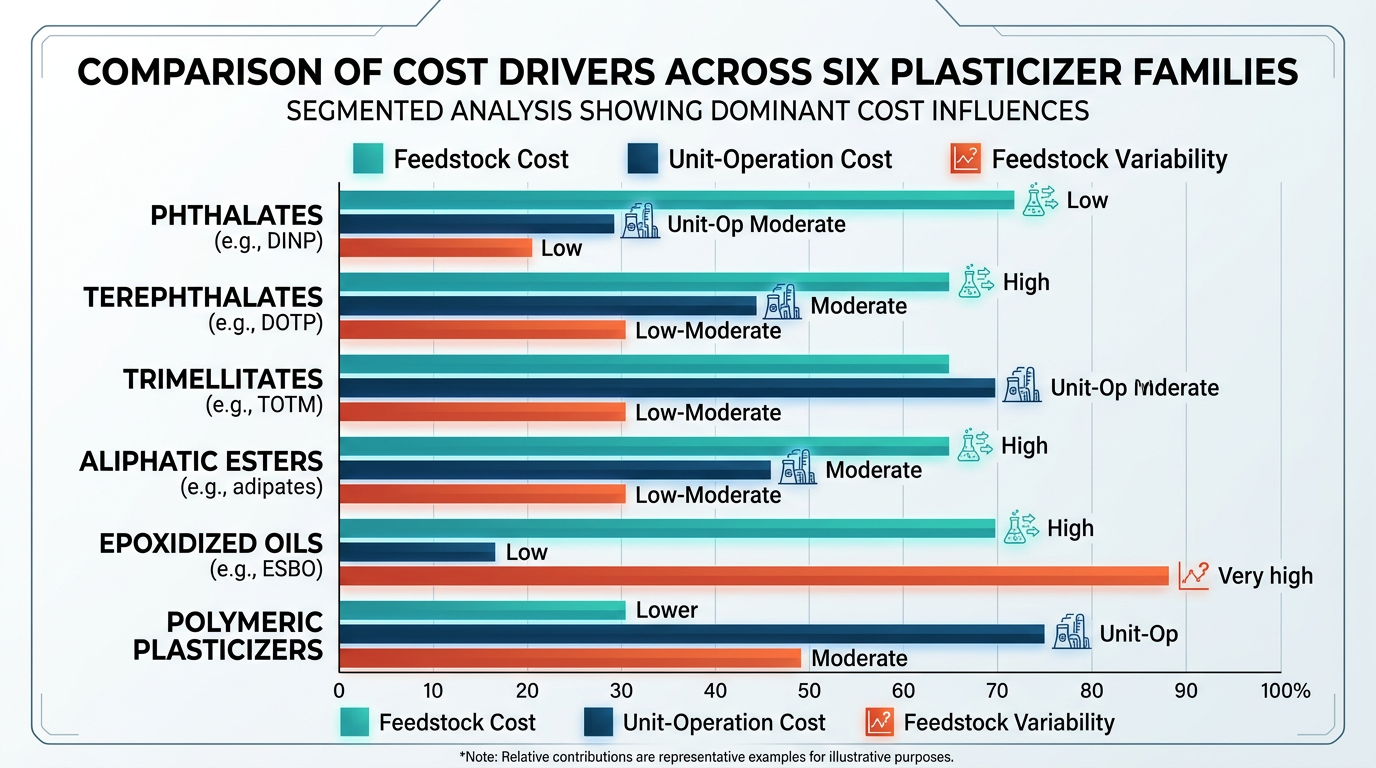

The six manufacturing routes price along three cost-driver axes that buyers conflate. Feedstock cost dominates phthalate, terephthalate, and trimellitate pricing — the alcohol carbon number sets the floor, and PTA-vs-DMT route choice for the terephthalate ester makes a 5-15 percent difference at constant alcohol cost.
Unit-operation cost dominates the cyclohexanoate family — the high-pressure hydrogenation reactor and Ru catalyst inventory carry the premium, not the alcohol. Feedstock variability dominates epoxidized soybean oil and citrate — crop-year weather sets the achievable oxirane ceiling, fermentation broth quality sets the citrate residue floor.
| Family | Named Route | Cost Driver | Compliance Profile |
|---|---|---|---|
| Phthalate (DEHP, DINP, DIDP) | PA esterification | Feedstock alcohol | DEHP under REACH SVHC restriction; DINP/DIDP cleared for most non-toy contact |
| Terephthalate ester | PTA esterification or DMT transesterification | Route choice + alcohol | Non-phthalate; broad food-contact and toy clearance |
| Cyclohexanoate | Phthalate-then-Ru-hydrogenation | Hydrogenation unit-op | Non-phthalate; medical and toy approved |
| Trimellitate | TMA tri-esterification | Third ester arm + vacuum | Wire/cable thermal class; not food-contact preferred |
| Epoxidized soy oil | Peracid epoxidation | Crop-year unsaturation | Bio-based; FDA 21 CFR cleared; PVC stabilizer dual function |
| Citrate (ATBC, TBC) | Citric acid esterification + acetylation | Fermentation feedstock | Bio-based; medical tubing and toy preferred |
Compliance maps to route only loosely. As of 2022, S&P Global tracked global phthalate consumption at more than 3 million tons against a Ceresana projection of roughly 2.6 million tons of non-phthalate demand by 2032 — the route diversification across the industry is real, driven by REACH SVHC listings on DEHP and the corresponding pull from terephthalate, cyclohexanoate, and bio-based routes.
For PVC compounders sourcing across this shift, the taxonomy of plasticizer types and the regulatory and cost positioning between phthalate and non-phthalate plasticizers sit one layer above route selection. Bastone produces phthalate, terephthalate, and bio-based plasticizers across the routes above — the choice between families on a given application is rarely a route preference, it is a compliance and migration trade-off.
Availability is the third axis and the most volatile. Phthalate kettle capacity is mature globally with multiple producers per region; terephthalate ester capacity has expanded substantially since DEHP’s REACH listing; cyclohexanoate supply is concentrated in BASF’s two Ludwigshafen plants and a handful of Asian licensees; epoxidized oil capacity tracks soy crushing geography (Midwest US, Brazil, Argentina); citrate capacity tracks fermentation infrastructure (concentrated in China). Sourcing two non-phthalate options for redundancy is harder than sourcing two phthalate options at any given volume.
How Plasticizer Manufacturing Routes Map Back to the CoA
Route choice locks the four CoA lines that matter for downstream compounding before the buyer ever sees the spec sheet: residual acidity from neutralization completeness, water from final stripping, color from feedstock purity and thermal history, and the route-distinctive residual species — methanol on the DMT-route terephthalate ester, ruthenium on the cyclohexanoate, oxirane oxygen on the epoxidized oil, fermentation residues on the citrate.
Reading a CoA is reading the route backward, and a buyer who can do that translation can spot which supplier ran tight kettle conditions versus which one cleared on minimum spec. For a deep dive into the specific kettle, hydrogenation, or epoxidation conditions of any single family, the per-chemistry articles linked through the sections above carry the full unit-operation walkthrough that the enumerative scope here deliberately leaves to them.
