Phthalate vs. Non-Phthalate Plasticizers

Phthalate and non-phthalate plasticizers differ in the acid at the core of the ester, and everything that separates them in practice — regulatory status, migration, the loading you need — follows from that one structural fact. In flexible PVC the two families overlap almost completely on compatibility and efficiency; the choice between them is decided by which regulation your article falls under, which extreme it has to survive, and whether a “phthalate-free” line has been written into the specification.

Phthalate vs. Non-Phthalate Plasticizers: Key Differences

On compatibility and plasticizing efficiency the two families are close to a tie for general-purpose PVC; the rows that actually decide a substitution are migration, regulatory pressure and cost. The table sets the two families side by side on the factors a compounder weighs when choosing a plasticizer.

One term in the table needs pinning down before the rest of the comparison makes sense. “Phthalate”, as regulators use it, means the ortho-phthalate: the diester of phthalic anhydride, with both alkyl chains on adjacent ring carbons. DOTP is a phthalate isomer by formula, but its chains sit para to each other, so it is a terephthalate and falls outside every ortho-phthalate restriction in the EU and US. “Non-phthalate” is a regulatory label, not a chemical family.

Common Phthalate Plasticizers

The ortho-phthalates a compounder still meets are DEHP (DOP), DINP, DIDP and DPHP as general-purpose esters, and DBP, DIBP and BBP as fast-fusing low-molecular-weight grades — and the regulatory line runs between those two groups, not around the family.

Molecular weight is what sorts them. It climbs from DBP at 278.3 g/mol through DEHP at 390.6 to DINP at 418.6 and DIDP at 446.7, and volatility and migration fall in the same order: DBP fuses fast and leaves fast, which is why it survives as a fusion aid rather than a primary plasticizer, while DIDP holds up in cable jacket and automotive trim where DEHP does not.

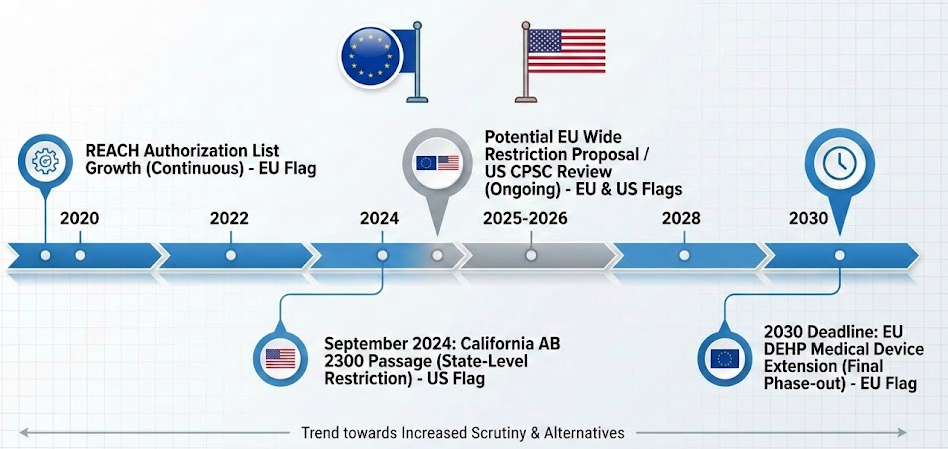

Entry 51 is the restriction that reaches beyond toys. Since 7 July 2020 it caps DEHP, DBP, BBP and DIBP — singly or combined — at 0.1 % by weight of the plasticised material in most articles placed on the EU market, but it exempts articles for exclusively industrial or agricultural use, motor vehicles and aircraft, medical devices, food-contact materials and electrical equipment.

RoHS then catches the electrical equipment at the same 0.1 % from 22 July 2019, and medical and monitoring instruments from 22 July 2021. An industrial hose can still legally run DEHP in Europe; the cord on a consumer appliance cannot.

DINP is where the two regulators part company. The EU restricts it only in toys and childcare articles that can be mouthed, having found no unacceptable risk in any other use; the US CPSC judged it antiandrogenic and made its ban permanent across all children’s toys and child care articles. A DINP compound that is compliant in a European toy is not compliant in an American one.

Common Non-Phthalate Plasticizers

Five non-phthalates cover almost every substitution a PVC compounder will make: DOTP as the general-purpose replacement for DOP and DINP, DINCH where a toy, medical or food-contact specification asks for a hydrogenated ring, TOTM where heat ageing and extraction set the limit, DOA where the part must stay flexible in the cold, and ATBC where the specification is tightest of all.

DOTP deserves the closer look because it is the ester most substitutions land on. It has exactly the formula and molecular weight of DEHP — C24H38O4, 390.6 g/mol — so its lower migration and volatility are a structure effect, not a mass effect: the para arrangement gives a more linear, more symmetric molecule that holds in the PVC matrix better than its ortho isomer.

The regulatory difference is metabolic. Ortho-phthalates hydrolyse to the monoester that drives their reproductive toxicity; DEHT does not form that monoester in any significant amount, which is why the CPSC’s 2018 toxicity review found no reproductive effects in a two-generation rat study and why DEHT sits outside every EPA and CPSC ortho-phthalate rule — though the same review stops short of calling it non-toxic outright.

For food contact and medical work the field narrows to the esters with clearances already in place. ATBC, DOA, DINCH and DOTP are in current use in food-contact flexible PVC, alongside epoxidised soybean oil; TOTM carries only limited recent clearances, so it is specified for extraction resistance in medical tubing rather than for packaging. Measured migration of DINCH, DOTP and TOTM into aqueous and low-alcohol food simulants sits well below the established limits, so a food-contact substitution is a choice among those three and ATBC, not a search.

Which Performs Better

Neither family wins outright: the best non-phthalates match the ortho-phthalate they replace to within a few percent of loading, and the real separations appear at the extremes — cold, heat and extraction — where the winner is a specific ester, not a family.

Plasticizing efficiency is the first number to check, because it sets the loading and therefore the cost of the compound. The substitution factor is the phr needed to reach a durometer hardness of 80, relative to DOP; the closer to 1.00, the closer to a drop-in.

DOTP at 1.03 means a DOP formulation moves across with about 3 % more plasticizer — closer to DOP than DINP is — while TOTM’s 1.17 is the loading price of a triester that is also the slowest to leave. Factors for DINCH and ATBC are not in the handbook table; establish them on your own Shore A curve.

Low-temperature flexibility belongs to the adipates. In a 2024 study of PVC at 40 phr, DOA brought the glass transition down to −65.7 °C against −26.2 °C for DOP — a gap of about 40 °C at equal loading. That is a laboratory Tg, not an ASTM D746 brittleness temperature, but the ranking holds on the brittleness test too: adipate well ahead, DOTP a little ahead of DOP.

High-temperature performance belongs to the trimellitates. TOTM’s three ester arms and 546.8 g/mol give it the lowest volatility in the range, which is why it is the default for high-temperature cable and for any part that must survive heat ageing without losing plasticizer.

Migration is where the “depends on molecular weight” rule breaks down across the family line: two non-phthalates migrate far less than the ortho-phthalate they replace, and one does not reliably. The clearest head-to-head is a published trial on PVC infusion lines that ran TOTM, DOTP, DINCH and DINP side by side. After 24 hours TOTM and DOTP had lost a fraction of what DINCH and DINP had, and DINCH and DINP came out roughly equal.

In food simulants DINCH does sit in the low-migration group, so the point is not that DINCH migrates badly; it is that its advantage over DINP depends on the extraction medium and should be measured in yours, not assumed.

Why Are Manufacturers Moving Toward Non-Phthalates

Manufacturers are moving for two reasons that do not always point at the same ester: the four low-molecular-weight ortho-phthalates are legally closed off for most consumer-facing articles in the EU and US, and customers have started writing “phthalate-free” into specifications that never distinguished DEHP from DINP.

The shift shows in the volumes, and it is regional. Where regulation bit first, the low-molecular-weight grades collapsed — and it was the high-molecular-weight ortho-phthalates, not the non-phthalates, that took most of their volume, according to 2017 industry estimates. Globally DEHP alone is still almost 40 % of consumption, which is why a compounder in Asia, the Middle East or Latin America can be running DOP profitably while a European customer refuses it at the gate.

Medical is the sector where the pressure is procedural rather than a ban. Under the EU Medical Device Regulation, an invasive device containing more than 0.1 % w/w of a CMR category 1A/1B or endocrine-disrupting substance must carry a documented justification and must be labelled for it. Nobody wants to write that file for DEHP when TOTM, DOTP and DINCH are on the shelf, which is why medical-grade PVC compounds have moved fastest of all.

The second driver is the specification itself. A “phthalate-free” line in a purchase order is broader than any regulation: it takes DINP and DIDP out of a flooring or synthetic-leather compound that no law would have touched, and it puts the burden on the supplier to back the claim on a certificate of analysis. That is a perception cost, not a toxicology finding — ECHA’s own committee declined to classify DINP — but it is real money, and it is why terephthalate volume grows in applications regulation never reached.

Conclusion

Choose by the rule your article falls under, then by the extreme it must survive. If it is a toy, a childcare article, a consumer good inside entry 51, electrical equipment under RoHS or an invasive medical device, the four low-molecular-weight ortho-phthalates are out, and DINP is out for anything sold to children in the US.

Within the non-phthalates, DOTP is the drop-in at about 3 % more loading, TOTM where heat or extraction sets the limit, DOA for the cold, and DINCH or ATBC where a toy or food-contact specification is tightest. If the article is industrial hose, membrane, or a part that never reaches a consumer, DINP and DIDP remain legal, non-classified and cheaper — and the only thing that moves you off them is a customer’s specification.

Whichever way the decision goes, the substitution factor and the migration result are things to measure on your own compound rather than read off a table. Even the easiest change in the industry, switching a DOP line to DOTP, shifts fusion and plastisol viscosity enough to need a trial before the first order ships.
