Six chemistry families now cover the REACH and RoHS compliant DEHP replacements for flexible PVC. The shortlist runs across terephthalate, ortho-phthalate, cyclohexanoate, adipate, trimellitate, and citrate.
The application sector pushing the substitution governs the shortlist more than the chemistry itself. REACH Annex XIV hit DEHP hard in Europe, RoHS 2011/65/EU folded it into restricted electronics, and FDA reclassified it for several food-contact uses. EN 71-3 closed it out of toys.
Compliance now crosses jurisdictions in ways that make single-axis substitution thinking expensive. Each alternative below lists its CAS number, regulatory standing, primary application fit, and a drilldown to the per-pair head-to-head.
DOTP (Dioctyl Terephthalate)
DOTP (di-2-ethylhexyl terephthalate, CAS 6422-86-2) is the highest-volume DEHP replacement worldwide — REACH and RoHS compliant, no SVHC listing. It is the commodity-priced default for automotive interior, wire-and-cable insulation, and general flexible PVC. NOAEL lands around 500-700 mg/kg/day against DEHP’s 4.8 mg/kg/day.
DOTP outsells the next-closest non-phthalate (TOTM) by roughly 12 to 2 in global volume. As of 2016, DOTP-based compounds priced 10-15 cents per pound below the trimellitates.
The volume dominance is real but sector-dependent. DOTP leads automotive trim and cable jacketing, while DINCH leads where EN 71-3 toy specs or biocompatibility tests govern. Default-picking DOTP across all sectors is the most common shortlist mistake.
Phr deltas, gelation behavior, and the processing window for the swap are detailed in our DOTP vs DEHP technical comparison.
DINCH (Diisononyl Cyclohexane-1,2-Dicarboxylate)

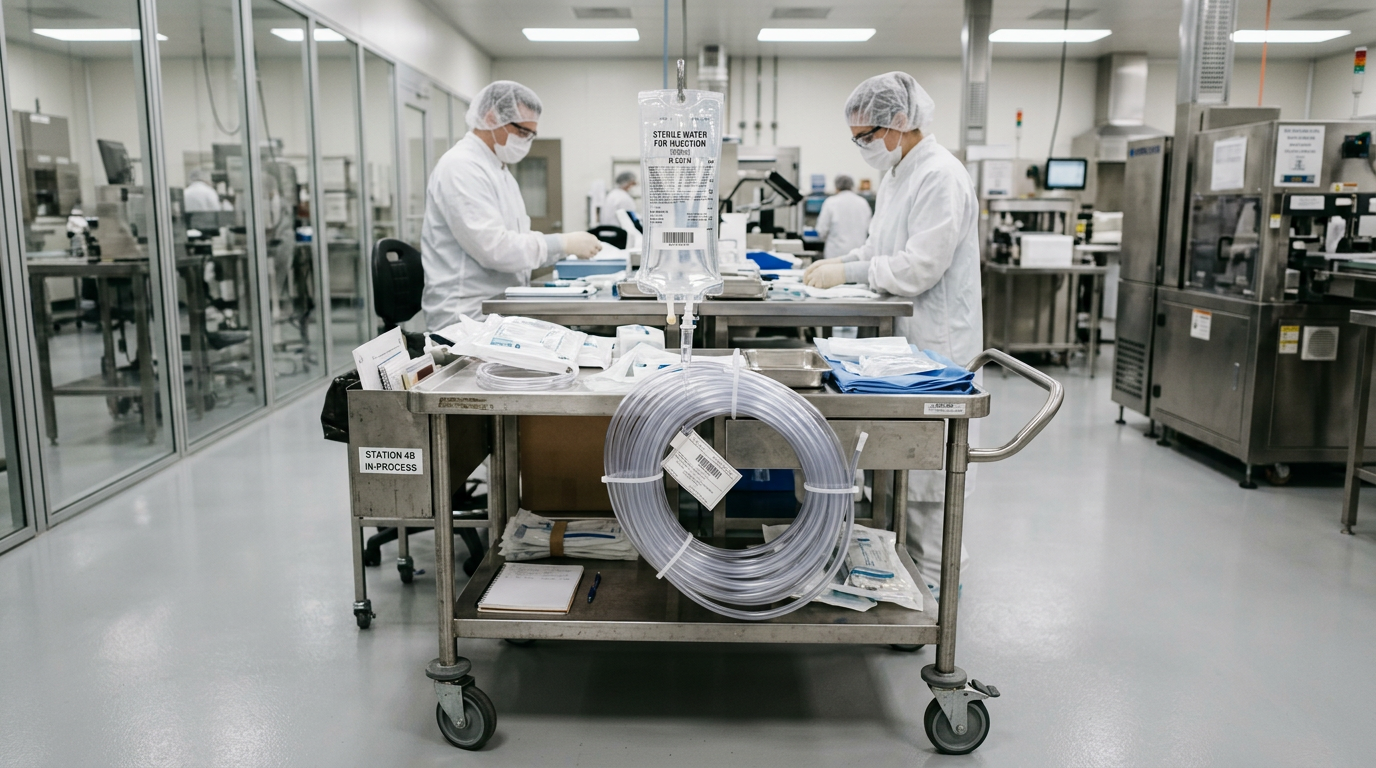

DINCH (CAS 166412-78-8) is the non-aromatic cyclohexanoate that dominates medical PVC, sensitive-skin toys, and food-contact applications. EN 71-3 toy safety and biocompatibility tests govern the use cases.
Migration runs roughly 8 times lower than DEHP in enteral feeding tests. NOAEL sits at 1000 mg/kg/day — a 200-fold safety-factor swing.
The market trend across applications is sector-driven adoption, not blanket replacement. Once major toy manufacturers and IV-bag makers wrote DINCH into their brand specs, the downstream supply chain followed. The shift held even in markets where ortho-phthalates were still legally permitted.
ATBC handles squeeze toys and bath ducks under the same EN 71-3 regime. TOTM holds the blood-bag and chemotherapy infusion niche. The medical, toy, and food-contact decision splits further by sub-application in our DINCH vs DEHP cross-sector comparison.
DEHCH (Di-2-Ethylhexyl Cyclohexanoate)
DEHCH is the closest non-phthalate structural analog to DEHP. The same C8 ester side chains sit on a saturated cyclohexane ring instead of an aromatic phthalate.
That structural parity gives the smoothest drop-in retrofit where regulatory approval already covers the application. Plasticization efficiency, volatility, and Shore-A hardness curves track DEHP closely. Phr adjustment is minimal compared to a terephthalate or cyclohexanoate-family swap.
The trade-off: regulatory acceptance is narrower than DOTP or DINCH. DEHCH is a younger chemistry with thinner test coverage in some jurisdictions.
Formulators needing a near-zero process-change swap pick DEHCH first; formulators with the longest regulatory horizon pick DINCH or DOTP. The formulation parity and approval-status caveats for each application are walked through in our DEHCH vs DEHP comparison.
DINP (Diisononyl Phthalate)
DINP (diisononyl phthalate) took DEHP’s place in non-toy and non-child-care industrial flexible PVC. Cable insulation, flooring, roofing membrane, and automotive trim are the main targets. REACH Annex XVII toy restrictions do not apply to these uses.
DINP remains a phthalate. Annex XVII paragraph 52 restricts use in toys and child-care articles that can be placed in the mouth; broad approval holds everywhere else.
For a procurement specifier whose application is industrial-only — cable jacket, flooring backing, conveyor belt — DINP often wins on cost and processing familiarity even after a DEHP audit. For anyone with mixed toy and industrial product lines, DINP introduces a per-application compliance check that DOTP and DINCH bypass entirely.
Annex XVII paragraph 52 and the industrial-only application boundary are mapped per use case in our DINP vs DEHP plasticizer comparison.
DINA (Diisononyl Adipate)
DINA (diisononyl adipate) bridges the gap between DOA’s cold-flex performance and DEHP’s volatility profile. It offers better low-temperature flexibility than DEHP, lower volatility than DOA, with REACH-compliant regulatory standing.
Where DOA suffers volatility losses during high-temperature processing — calendering above 180 °C or hot-air aging — DINA holds the cold-flex benefit with materially less plasticizer migration.
The application sweet spot is cold-climate cable jacketing, refrigerated transport sheeting, and flexible PVC where service temperature ranges from sub-zero to moderate heat. Adipate-family efficiency curves and the permanence trade against DEHP are detailed in our DINA vs DEHP breakdown.
DOA (Dioctyl Adipate)

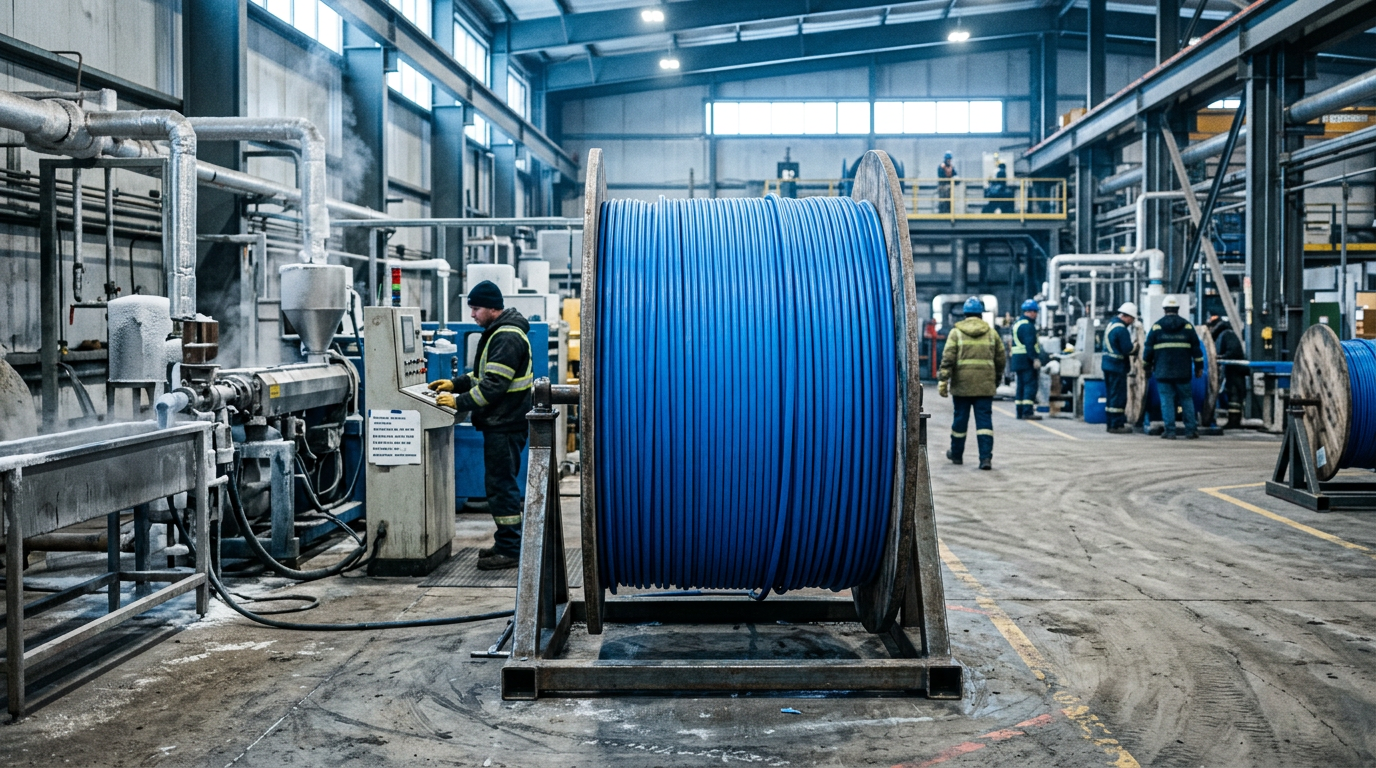

DOA (dioctyl adipate, CAS 103-23-1) wins on cold-flex efficiency below 25 °C, where DEHP and the terephthalates stiffen. The application set covers refrigerator-door gaskets, cold-climate cable, frozen-food packaging films, and outdoor flexible PVC in sub-freezing service.
Among the common plasticizers, DOA delivers the best low-temperature efficiency. That single-axis strength justifies its use despite higher volatility and price than DOTP.
DOA pairs with DOTP or DINP as a secondary cold-flex agent in many automotive interior and wire-jacket formulations. The primary plasticizer carries the bulk of the loading; DOA tunes the low-temperature behavior. The cold-flex envelope and the REACH-compliance framing for the swap are detailed in our dioctyl adipate vs DEHP comparison.
Once a shortlist lands, the process-side reality decides whether the swap holds in production — phr split, gelation curve, stabilizer pairing, transition strategy. That work is mapped in our guide to replacing DEHP in PVC products.
Verdict by Application
DOTP and DINP are the default automotive and wire-and-cable picks where cost and processing familiarity dominate. DINCH and TOTM lead medical and toy applications under EN 71-3 and biocompatibility tests, with ATBC carrying the food-contact and squeeze-toy niches. DEHCH is the closest drop-in where regulatory approval already exists, and DOA covers sub-25 °C cold-flex, often paired with DOTP or DINP.
The shortlist should fall to one or two candidates per application sector before a per-pair head-to-head. Chemistry-first selection without sector anchoring leads to over-specifying TOTM where DOTP would suffice, or default-picking DOTP where EN 71-3 demands DINCH.
