A processor seeing voids and splay on the line often assumes PVC needs the same hopper-drying step as the PET or nylon next to it. PVC is non-hygroscopic, so routine drying is usually unnecessary. The real question isn’t the polymer — it’s whether your lot and its storage pushed it past the moisture the line tolerates.
Is PVC Resin Hygroscopic?

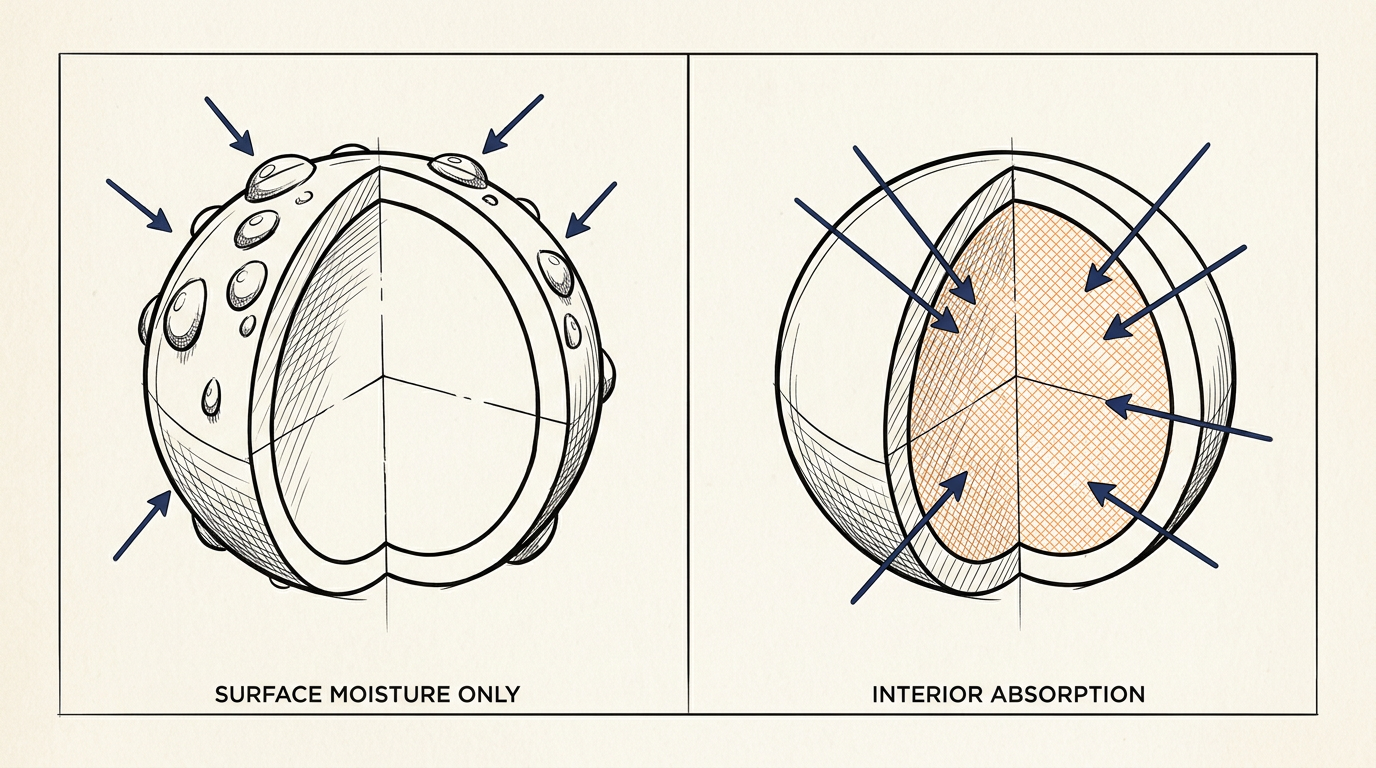

PVC resin is non-hygroscopic: it does not draw moisture into its molecular structure. PE, PP, and PVC all share this — any water they carry sits on the particle surface, not bound inside the polymer.
That is why PVC does not get routinely hopper-dried the way PET, nylon, or polycarbonate do. Those resins absorb water internally and hydrolyze if you skip a drying cycle.
The practical consequence: a standard hot-air hopper dryer is enough when PVC does need a moisture knock-down. There is no bound water to drive out, only surface moisture.
PVC also sits in the cosmetic-concern tier, not the hydrolysis-damage tier. Moisture in PET or nylon degrades the polymer chain and tanks mechanical properties. Moisture in PVC shows up as a surface or appearance defect, not a strength loss.
So the honest answer is: not by default, and not because of the polymer. What flips that, what number to hit, and how to hit it are where the decision actually lives.
When PVC Actually Needs Drying
Storage state overrides the material classification. A non-hygroscopic resin that was properly packaged may need no drying, while the same resin stored carelessly can need a full drying cycle. Same PVC, different warehouse, different answer — the part the textbook drying tables leave out.
Four conditions move PVC from “no drying needed” to “dry it first”:
- Humid-warehouse or transport condensation. Bags in high humidity, or temperature swings in shipping, leave free surface water with nowhere to go but the barrel.
- Wet reground or returns. Reground that picked up moisture, or returns stored open, carry far more surface water than virgin resin from a sealed bag.
- Hygroscopic fillers in the dry blend. Calcium carbonate and similar fillers hold moisture even when the PVC is dry; the blend becomes the source.
- Paste (P-PVC) resin. Paste-grade is more moisture-sensitive than suspension (S-PVC), so storage that leaves S-PVC fine can leave paste resin needing attention.
Before adding to the mixer, the check that matters isn’t “is this PVC?” — it’s where the material has been and what’s in the blend. Resin form is part of that call, so matching the PVC resin grade to your process tells you the moisture margin you actually have.
What Moisture Level Matters for PVC?
PVC processing wants moisture below roughly 0.3% by weight, with about 0.15% cited to prevent caking and feeding problems. Treat these as ranges, not a single spec — the number that matters shifts with the process.
Splay-sensitive injection molding tightens the window. For appearance-critical injection work, the cosmetic-tier target drops to about 0.05% to 0.10% to keep splay and silver streaking off the part.
Extrusion and calendering tolerate more than injection, but transparent product still shows defects far sooner than opaque.
These PVC targets are looser than PET or nylon because of the tier. PET runs around 50 ppm, or 0.005% — more than ten times tighter than PVC’s cosmetic target — because there the moisture causes chain scission, not a surface blemish.
To confirm rather than guess, a loss-on-drying moisture balance gives a quick number, and a Karl Fischer titration gives a chemically specific one in about 20 minutes when a blemish dispute needs settling.
How Is Moisture Removed From PVC?
The right removal route depends on whether you’re dry-blending or feeding resin directly, and neither one usually calls for a desiccant dryer:
| Situation | Route | Why |
|---|---|---|
| Dry-blend compounding | Hot mixer (already running) | Moisture driven off above 100°C |
| Surface-wet feed resin | Hot-air hopper dryer | Surface moisture only, no bound water |
| Confused PVC with PET/nylon | Desiccant dryer | Wrong, costlier tool for PVC |

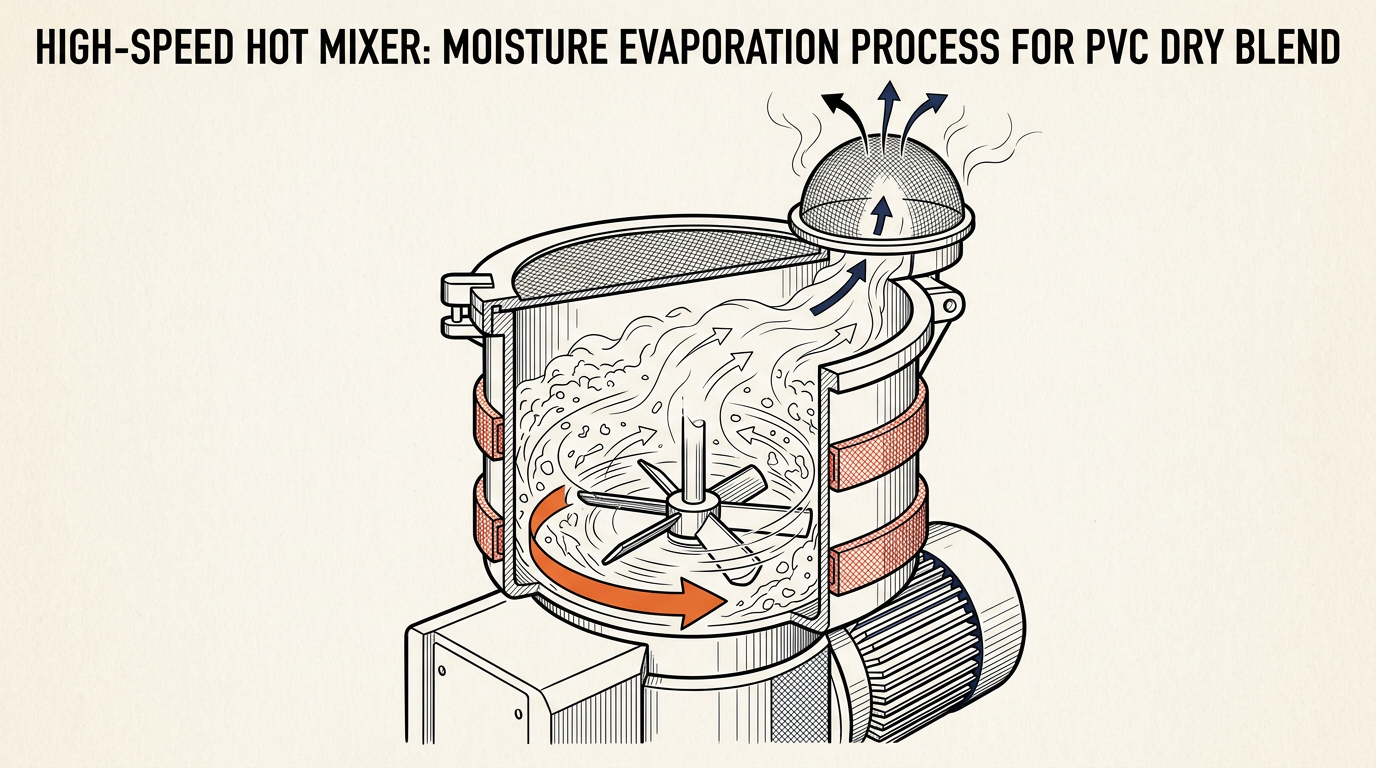

For dry-blend compounding, the hot mixer already removes the moisture. As the batch temperature crosses 100°C, water in the ingredients is driven off; a UPVC dry blend typically discharges around 120°C, and the cold mixer collects it near 45°C, expelling more during cooling.
A breather bag on the mixer lid carries that vapor away, so clean or replace it weekly before it loads up and stops venting. That in-process dehydration is why most dry-blend processors need no dedicated drying step.
When the issue is surface moisture on resin you feed directly, a hot-air hopper dryer handles it. There is no bound water to extract, so dew-point-controlled desiccant drying is overkill — it costs more to run and buys nothing PVC can use.
What Defects Signal a PVC Moisture Problem?
Voids, bubbles, and blisters are the clearest moisture signature: water vaporizes in the hot barrel above 100°C and expands as steam, leaving gas pockets in the melt or air bubbles in the sheet.

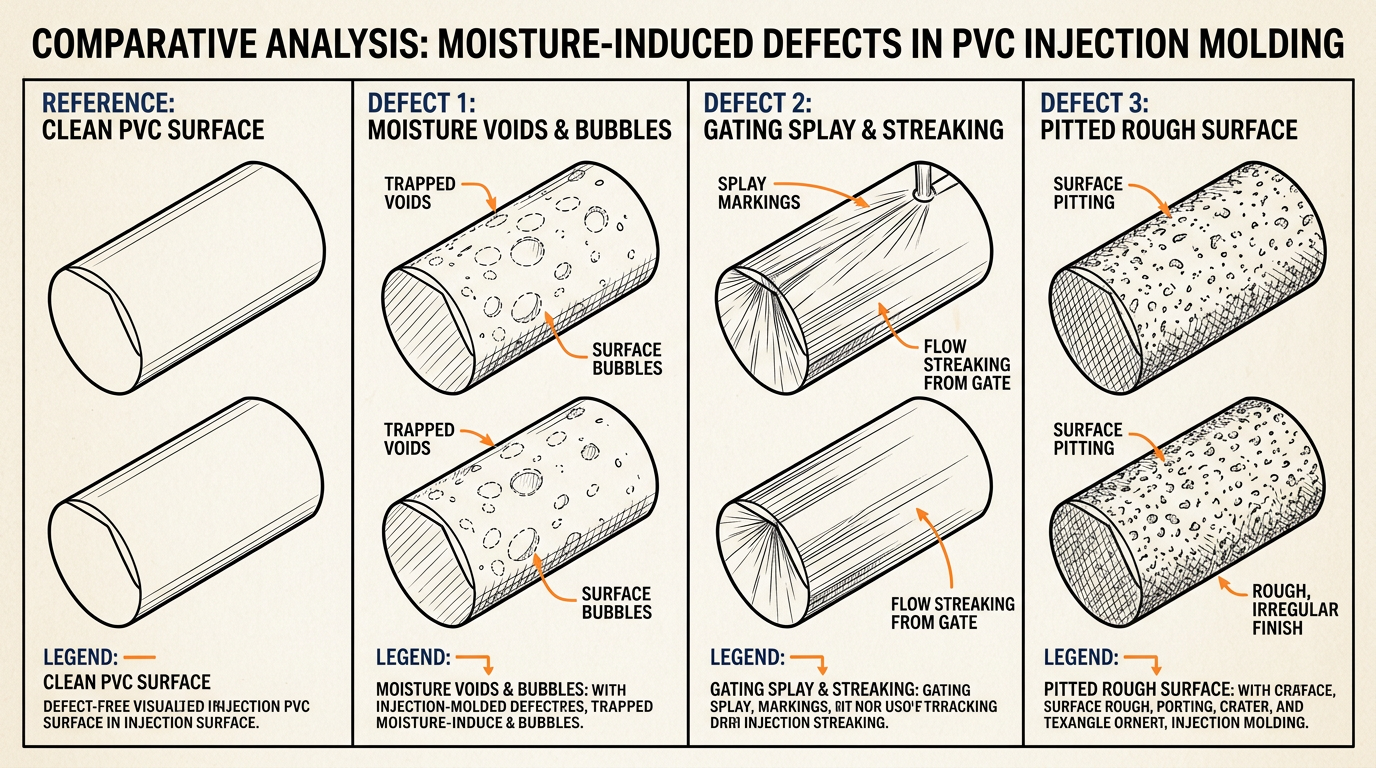

The full defect set tracks back to the same vaporization cause:
- Voids, bubbles, blisters — steam pockets trapped in the melt.
- Splay and silver streaking — gas escaping through the melt surface as the part forms.
- Surface pitting and roughness — finer surface disruption, worst on transparent product.
Transparent PVC products betray all of these far sooner than opaque ones, where a thin filler load hides what a clear sheet cannot.
If you see this set, check storage and blend moisture before you touch barrel temperature or screw speed. PVC already runs close to its decomposition temperature, so cranking heat to burn off a bubble risks degradation instead of fixing the cause.
Diagnosing the fish-eye defects in PVC that share this surface is a separate gelation question. Here the read is direct: vaporized water, traced to where the material got wet.
What This Means in Practice
Start the drying decision with your warehouse and your blend, not with a drying chart. PVC is non-hygroscopic, so the polymer almost never drives the need.
Storage condensation, wet reground, hygroscopic fillers, and paste-grade resin do — and the line tolerates moisture up to roughly 0.15% to 0.3% before it shows.
The most common waste here is buying a desiccant dryer to solve a problem a hot mixer or a hot-air hopper already handles. Read voids and splay back to a wet lot, fix the storage and blend, and you’ve solved the real problem instead of the one the drying tables predicted.
