Direct drop-in replacement of DOP with DEHCH fails more often than it works. I have run enough transitions to tell you that the plasticizer swap itself is the easy part — it is the three adjustments you make afterward that determine whether the compound runs cleanly on your production line.
The good data on DEHCH sits in patents and technical data sheets, but none of it tells you how to get from your current DOP or DOTP recipe to a validated DEHCH formulation. Start with your existing recipe, convert the PHR, adjust your lubricant, co-stabilizer, and processing temperature, then validate. Most formulations need nothing more.

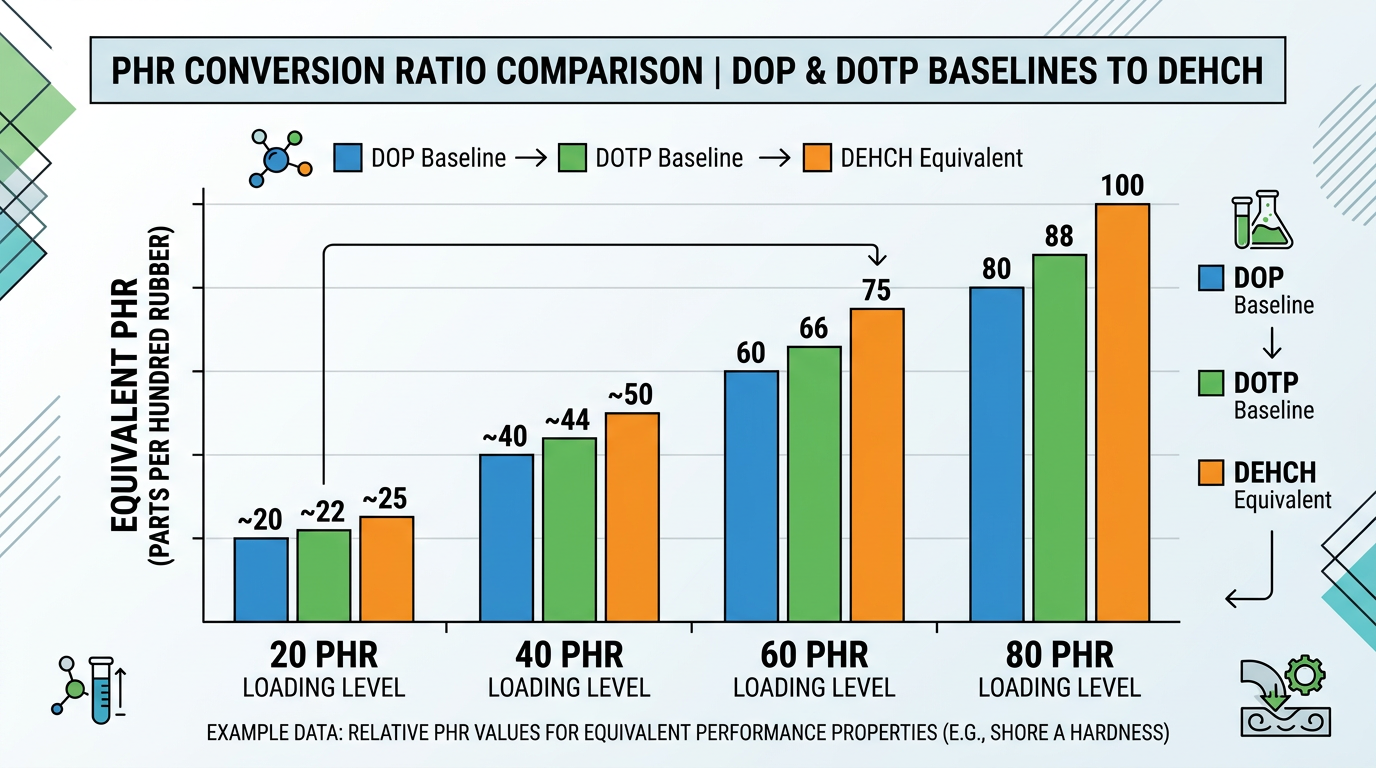

How to Convert DOP or DOTP Loading to DEHCH
DEHCH — bis(2-ethylhexyl) cyclohexane-1,4-dicarboxylate — has plasticizing efficiency similar to DINP: roughly 15-20% beyond linear alternatives like DOTP. That single fact makes PHR conversion straightforward, but the direction of adjustment depends on which plasticizer you are replacing.
DOP-to-DEHCH Conversion
DOP is the industry baseline at efficiency 1.0. DEHCH runs at approximately 0.96-1.0 relative to DOP, meaning the conversion is nearly 1:1. A formulation using 50 PHR DOP typically needs 48-52 PHR DEHCH to hit the same Shore A target.
Start at a 1:1 ratio and measure Shore A hardness on your first trial batch. If the compound is 2-3 points harder than your DOP baseline, increase DEHCH by 2 PHR. Do not jump to 5 PHR increments — overdosing causes bleeding and reduced tensile strength, not better flexibility.
DOTP-to-DEHCH Conversion
DOTP carries roughly a 7% efficiency penalty versus DOP — a 35 PHR DOP recipe needs approximately 37-38 PHR DOTP for equivalent hardness. DOTP users are already loading more material. Switching to DEHCH means you can reduce loading by approximately 5-7% from your DOTP baseline and hit the same hardness target.
| Baseline Plasticizer | Typical Loading | DEHCH Equivalent | Direction |
|---|---|---|---|
| DOP at 50 PHR | 50 PHR | 48-52 PHR | Roughly equal |
| DOP at 35 PHR | 35 PHR | 34-36 PHR | Roughly equal |
| DOTP at 50 PHR | 50 PHR | 46-48 PHR | Slight reduction |
| DOTP at 35 PHR | 35 PHR | 33-34 PHR | Slight reduction |
Build in a 2-3 PHR safety margin when targeting maximum hardness specifications. Batch-to-batch variation shifts results by 2-5 Shore A points, and you do not want a production lot rejected because you formulated on the razor’s edge.
Three Adjustments Beyond the PHR Swap
Converting PHR gets you close. These three adjustments get you to production-ready. Every DEHCH transition I have managed required all three — skip any one and you will chase defects that make no sense until you trace them back here.
Reduce External Lubricant
DEHCH has a rotational viscosity of 30-50 mPa.s at 25 C. DOP sits at roughly 80 mPa.s. That 40-60% viscosity drop means DEHCH acts as a more effective internal lubricant than DOP does, and your existing external lubricant loading becomes excessive.
The symptom is plate-out — a waxy film that builds up on calender rolls, die lips, or mold surfaces. If you see it after switching to DEHCH, check your external lubricant loading first. Reduce stearic acid or paraffin wax by 0.2-0.5 PHR. Start with 0.2 and run a short production trial before cutting further.
The viscosity gap between DEHCH and DOP drives the lubricant imbalance, and the property difference between DEHCH and DEHP makes it easy to overlook. Adjust lubricant before anything else.
Add a Co-Stabilizer
Switching plasticizer type can shift thermal stability even when you keep the same stabilizer package. The fix is not replacing your stabilizer system — it is adding a co-stabilizer.
If you run calcium-zinc stabilizers, add 0.3-0.5 PHR of a phosphite or beta-diketone co-stabilizer. This compensates for the subtle interaction change between DEHCH and your existing metal soap system. Adding the co-stabilizer at around 60 C during high-speed mixing gives the best dispersion — add it too early at low temperature and it clumps with the resin instead of coating it evenly.
Verify with a Congo Red thermal stability test after reformulation. Target your mixer discharge temperature at 120-130 C. If the Congo Red time drops more than 10% compared to your DOP baseline, increase the co-stabilizer by 0.1 PHR increments until stability matches.
Tune Processing Temperatures
DEHCH absorbs into PVC resin faster than DOP in most grades, which shifts your fusion point. For high-speed mixer compounding, the first stage typically runs at 500-1000 rpm between 60-90 C, with the second stage at 1100-1600 rpm between 100-140 C. These ranges come from medical PVC formulations at K-values 65-80, so adjust based on your specific resin grade.
For extrusion, start with your existing barrel profile and watch for under-fusion or over-fusion indicators. DEHCH’s flash point sits above 190 C, giving you a comfortable processing window. If your compound fuses earlier than expected, reduce barrel zone temperatures by 3-5 C in the metering section. Each additional PHR of plasticizer drops heat distortion temperature by 2-3 C, so if you loaded slightly more DEHCH than your DOP baseline, account for that thermal shift.

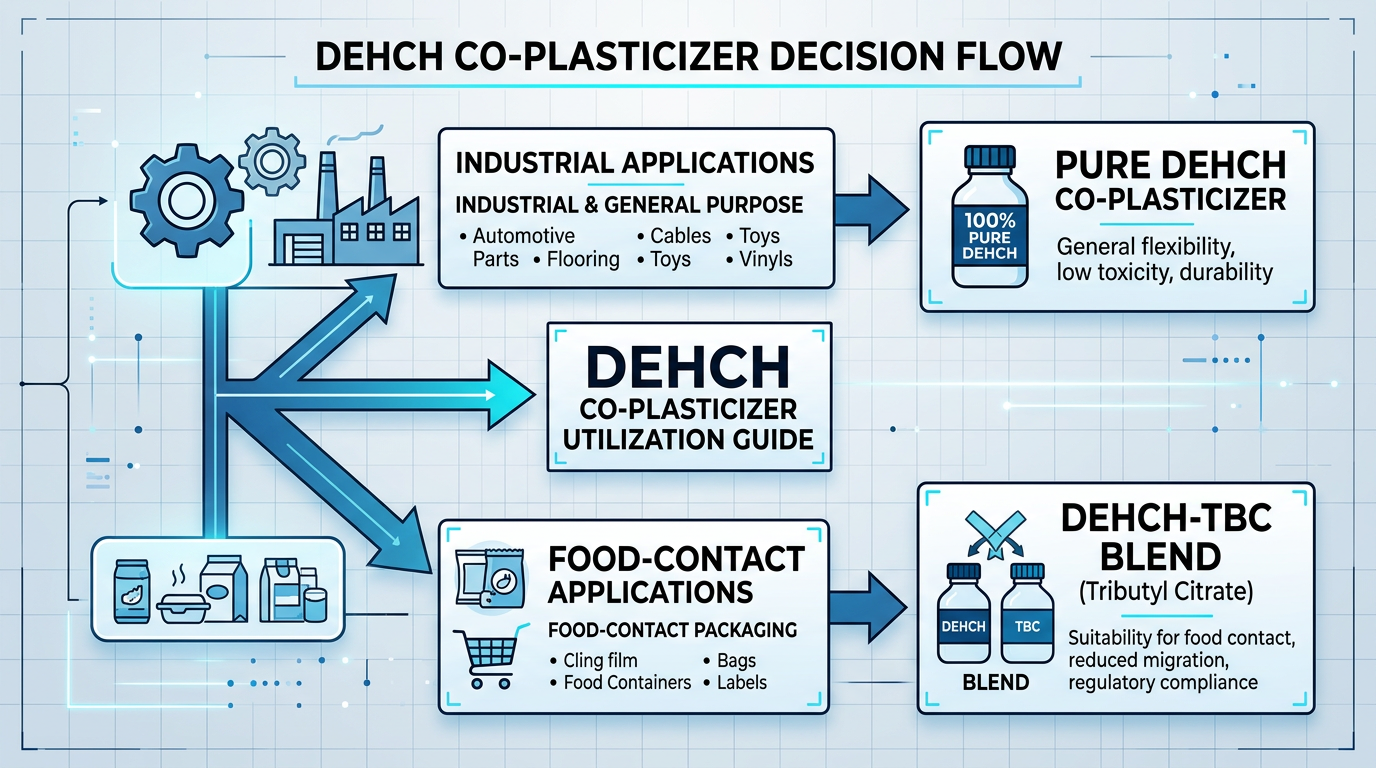

When to Blend DEHCH with a Co-Plasticizer
Pure DEHCH handles most general-purpose flexible PVC applications — cable insulation, garden hose, flooring, general tubing. But if your end product contacts paper or food packaging, DEHCH alone has a migration weakness that a co-plasticizer fixes.
In plastisol testing, pure DEHCH scored 3.5 out of 5 on gelling rate and 2.8 out of 5 on migration resistance to paper. A 7:3 blend of DEHCH with tributyl citrate (TBC) pushed both scores to 5.0 out of 5. Plastisol users gain faster gelation; anyone storing product against paper or cardboard eliminates the migration risk.
For general-purpose dry-blend compounds where migration to paper is not a concern, skip the co-plasticizer. Adding TBC increases raw material cost and introduces a second plasticizer to manage in inventory. The formulation ratio I recommend is pure DEHCH for industrial and construction applications, and DEHCH:TBC at 7:3 by weight for food-contact films and paper-adjacent packaging.
This is not a universal requirement — it is the fourth adjustment that applies only when your application demands it.
How to Validate the Reformulated Compound
Before scaling from trial batch to production, run these three checks against your DOP or DOTP baseline. A reformulation that passes all three is ready for the line.

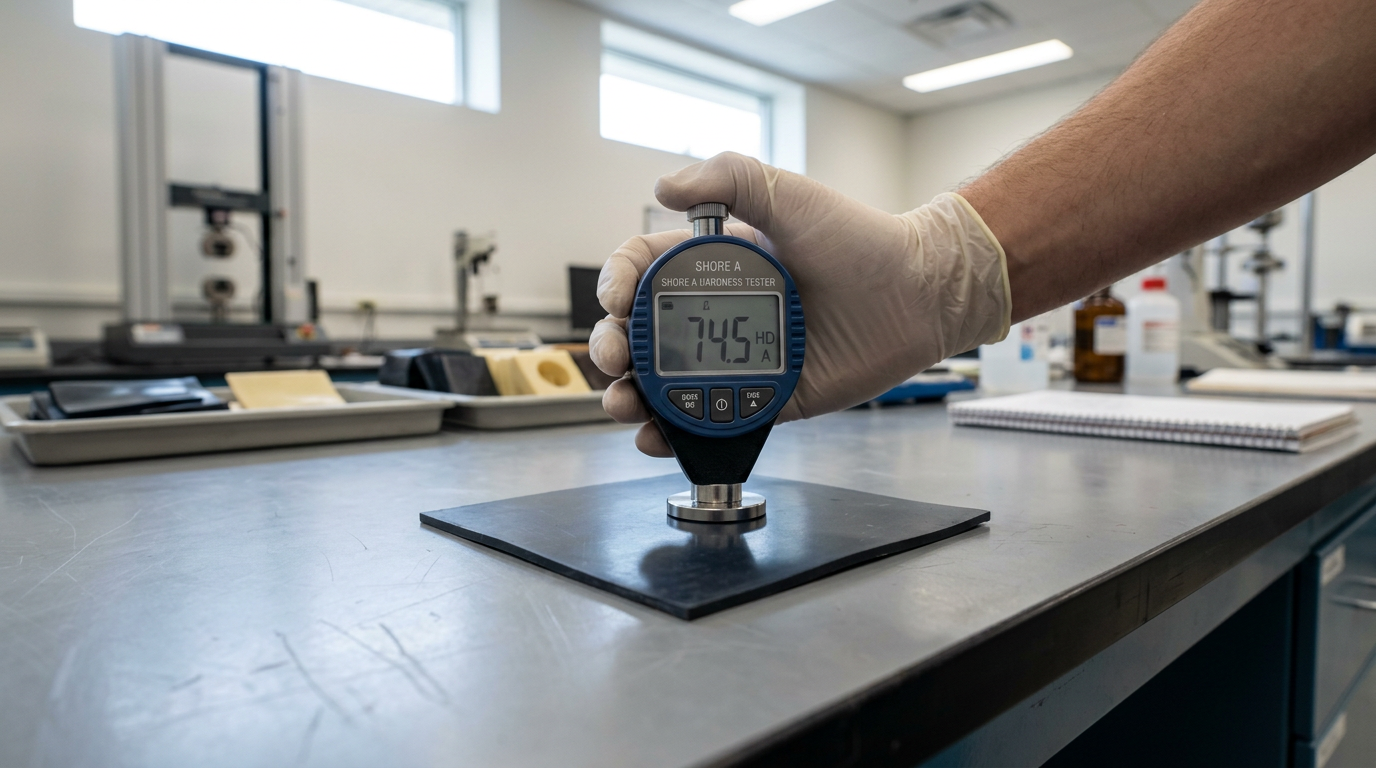

Shore A Hardness Check
Measure Shore A at 15 seconds on conditioned specimens. Target within +/- 2 points of your DOP baseline. If hardness runs 3-5 points high, increase DEHCH by 2 PHR. If hardness runs more than 5 points off, recheck your PHR conversion — the efficiency assumption may not hold for your specific PVC resin grade.
Build in a 2-3 PHR safety margin below your maximum allowable hardness. Batch variation alone shifts Shore A by 2-5 points, and a failed lot costs more than 2 PHR of extra plasticizer.

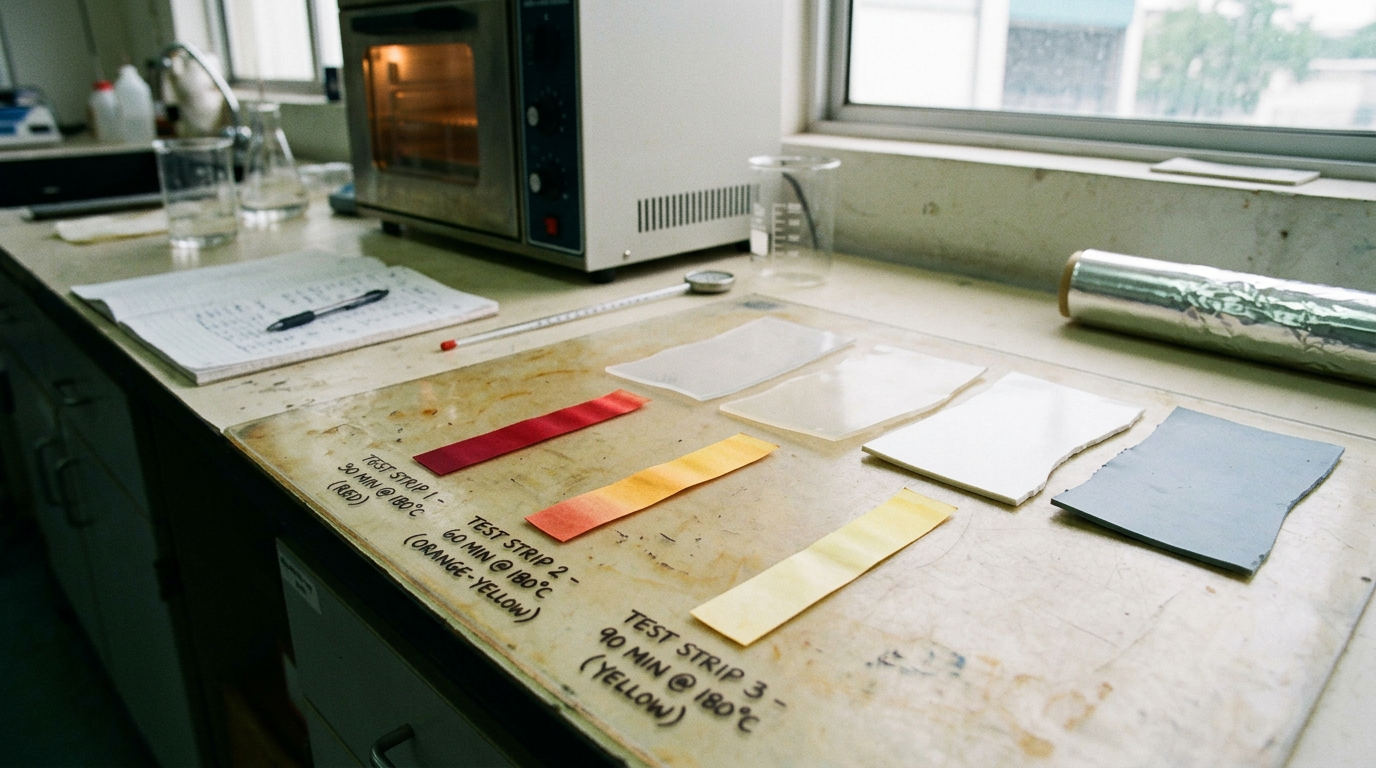

Thermal Stability (Congo Red Test)
Run Congo Red on pressed sheets at the same temperature and thickness as your DOP baseline test. The DEHCH formulation should match or exceed DOP’s stability time. A drop of more than 10% signals that your co-stabilizer addition needs adjustment — increase phosphite or beta-diketone by 0.1 PHR and retest.
Watch for haze or discoloration in the pressed sheet. Cloudiness on cooling can indicate plasticizer compatibility issues with your specific resin grade — run a compatibility soak test (plasticizer on PVC film, 24 hours at 70 C) before blaming the stabilizer.
Migration and Aging Tests
For general-purpose applications, run a 7-day aging test at 70 C and check for surface exudation, weight loss, and Shore A drift. For food-contact applications, add paper migration testing per your regulatory requirements — this is where the DEHCH:TBC blend becomes mandatory if pure DEHCH fails.
Document every test result against your DOP baseline. The comparison data becomes your reformulation validation record and saves hours when customers or auditors ask how you qualified the transition.
Next Steps
Three adjustments — lubricant, co-stabilizer, processing temperature — cover the gap between a PHR swap and a production-ready DEHCH formulation. Teknor Apex proved this approach works at industrial scale when they transitioned garden hose production from DEHP to a non-phthalate plasticizer with no new equipment and minimal reformulation.
Start with a 5-10 kg trial batch using the PHR conversion from your current recipe. Make all three adjustments before the first trial, not after you see defects. Run Shore A, Congo Red, and a 7-day aging test. If all three pass within tolerance of your DOP baseline, scale to a pilot run. The entire qualification sequence typically takes two to three weeks — not the months-long redesign that the patent literature might suggest.
