Phthalic anhydride is an organic compound with the chemical formula C8H4O3, sometimes written as C6H4(CO)2O. Think of it as benzene – the basic six-carbon ring that chemistry students learn about – but with two carbon-oxygen groups attached in a specific way that makes it behave differently.
The name itself tells you what it is. “Phthalic” comes from naphthalene, the raw material chemists originally used to make it. “Anhydride” means the compound is missing water molecules compared to its parent compound, phthalic acid. That missing water makes all the difference in how the chemical behaves.
Physical Property

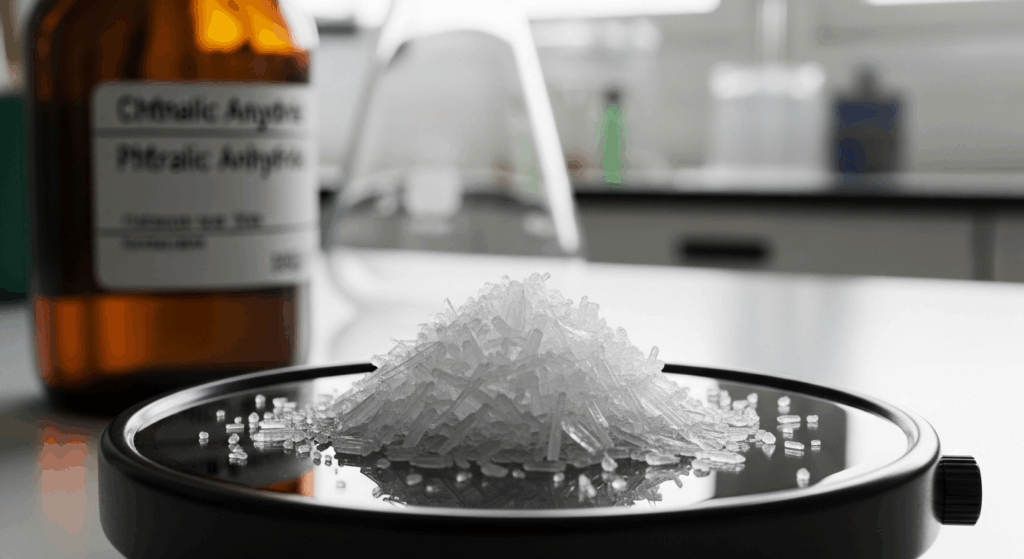

At room temperature, phthalic anhydride appears as a white or off-white powder with fine, scaly crystals. It weighs about 1.5 times as much as water (1.527 grams per cubic centimeter). The molecular weight is 148.12 grams per mole – a number that matters when chemists mix it with other compounds.
It doesn’t dissolve well in cold water or most solvents. This is actually important for industrial use, because it means manufacturers can handle and store it without constant worry about it dissolving where it shouldn’t.
The compound’s melting point sits around 131°C (about 268°F). When it sits in storage under normal conditions – dry and cool – it stays stable for years without breaking down.
Chemical Property
The anhydride group is the key difference between phthalic anhydride and phthalic acid. That anhydride structure – essentially a carbon-oxygen ring with specific bonds – makes the compound highly reactive with certain substances while remaining relatively stable with others.
This reactivity is both its strength and its main safety concern. The same chemical structure that makes it useful in manufacturing also means it reacts violently with water.
Chemical Behavior
Phthalic anhydride’s most important reaction is with water. When water touches phthalic anhydride, they react exothermically – meaning heat releases rapidly. This isn’t a gentle reaction.
The compound accepts water molecules and transforms into phthalic acid. In one molecule plus one molecule of water, you get one molecule of phthalic acid. This happens quickly if the water is warm or if local heating speeds things up, and the reaction can become violent.
Beyond water, phthalic anhydride reacts with alcohols and amines – nitrogen-based compounds. These reactions are actually useful in manufacturing because chemists deliberately use them to make new compounds. But they’re dangerous in industrial accidents, so workers must understand what shouldn’t mix with what.
How is Phthalic Anhydride Made?
The Traditional Route: Naphthalene Oxidation
Step 1: Preparation – Workers receive naphthalene as a solid, typically in flake form. They select batches with the right purity because impurities can interfere with later steps.
Step 2: Heating to Vapor – The naphthalene gets heated to around 250-300°C. At this temperature it transforms into a vapor – a gas that flows easily into the reactor.
Step 3: The Reactor – The naphthalene vapor enters a fluidized bed reactor. Inside, vanadium pentoxide catalyst particles float suspended in a bed of air. The catalyst particles look almost like sand grains that won’t settle because air pushes up constantly.
Step 4: The Chemical Transformation – Oxygen in the air oxidizes naphthalene molecules in the presence of the catalyst. The temperature stays precisely controlled at 350-360°C. This is the sweet spot where naphthalene transforms into phthalic anhydride without forming too many unwanted byproducts.
Step 5: Heat Management – This oxidation releases enormous amounts of heat – it’s highly exothermic. The reactor design becomes critical here. Most industrial reactors use multiple tubes filled with naphthalene vapor, surrounded by molten salt coolant that removes heat and keeps temperatures uniform.
Step 6: Collection and Cooling – The phthalic anhydride vapor leaving the reactor gets cooled. As it cools, it condenses into solid form. Downstream equipment separates the product from unreacted materials and byproducts.
Step 7: Purification – The crude phthalic anhydride gets refined further, usually through crystallization or sublimation processes, to reach the purity required for different industrial uses.
O-Xylene Oxidation
Since the 1980s, most new facilities use o-xylene instead of naphthalene. O-xylene is a liquid hydrocarbon from petroleum refining, which makes handling easier than solid naphthalene.
The process is similar but with key differences:
Step 1: Feedstock Vaporization – O-xylene liquid gets vaporized and mixed with air to the right proportions. This creates a consistent vapor stream entering the reactor.
Step 2: Vapor-Phase Oxidation – The o-xylene vapor flows over vanadium pentoxide catalyst at 380-400°C. This temperature is higher than the naphthalene process because o-xylene requires more energy to oxidize.
Step 3: Selective Oxidation – Here’s where the chemistry gets elegant. At the right temperature and pressure, o-xylene oxidizes preferentially to phthalic anhydride rather than other products. Getting this right saves money by maximizing product yield.
Step 4: Heat Removal – Again, multitubular reactors with external cooling remove the intense heat this reaction generates. Temperature control within one degree Celsius makes a real difference in product quality.
Step 5: Product Separation – The reactor outlet contains phthalic anhydride vapor, excess o-xylene vapor, carbon dioxide, water vapor, and other minor compounds. Condensation separates most of the phthalic anhydride as a solid.
Step 6: Further Purification – Depending on the intended use, manufacturers crystallize or sublimate the product to reach required purity levels.
FAQs
Why is phthalic anhydride still the most common plasticizer?
Phthalate plasticizers remain dominant because they’re cost-effective, proven reliable across decades of use, work with existing manufacturing equipment, and deliver consistent performance across diverse applications. Switching to alternatives would require retooling production facilities and developing new supply chains – a costly undertaking that most manufacturers don’t justify unless forced by regulation.
What’s the difference between high-phthalate and low-phthalate products?
The term refers to molecular size. High-molecular-weight phthalates (like DINP) have larger chemical structures that don’t migrate from plastics as readily as low-molecular-weight phthalates (like DEHP). This reduced migration means less exposure to users and less environmental persistence, which is why they’re now preferred over older formulations.
Why do manufacturers prefer vanadium pentoxide as a catalyst?
Vanadium pentoxide efficiently catalyzes naphthalene or o-xylene oxidation to phthalic anhydride through a well-understood redox mechanism. It doesn’t get consumed in the reaction, allowing long-term operation. Decades of optimization have shown V2O5 outperforms other catalyst options in selectivity and cost effectiveness.
