A compounder picking up a legacy formulation that lists DIBP — the DIBP chemical commonly written as di-iso-butyl phthalate or di iso butyl phthalate — has three questions to answer before the next batch runs:
- Is the dibp phthalate ester still legal in this market?
- Where does it sit relative to its straight-chain sister DBP at the formulation table?
- What is the realistic substitute by application class?
Most encyclopedia entries answer one of those three and stop. This entry is a plasticizer reference written for the specifier — chemistry-precise, regulation-locked, and tied at every step to a sourcing decision.
DIBP at a Glance: Identity, Formula, and the Iso-Butyl Distinction

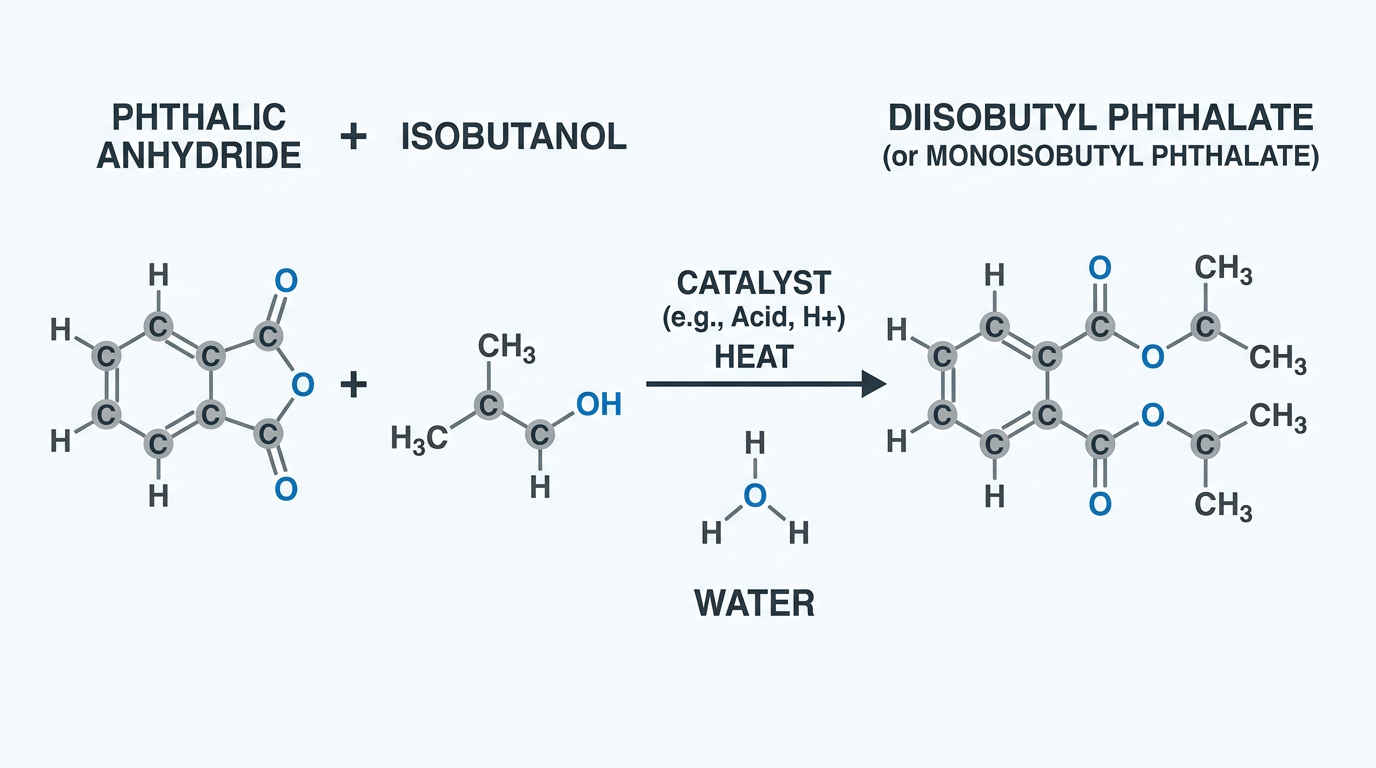

Diisobutyl Phthalate (DIBP, CAS 84-69-5) is the bis(2-methylpropyl) ester of benzene-1,2-dicarboxylic acid. Molecular formula C16H22O4, molar mass 278.348 g/mol. The full form unpacks the abbreviation directly: DI (two) + IB (iso-butyl) + P (phthalate).
In specifications and supplier datasheets the same compound surfaces as Di-iso-butyl Phthalate, Di(i-butyl)phthalate, DiBP, or trade names such as Palatinol IC. The CASRN 84-69-5 is the only unambiguous identifier across jurisdictions.
The Iso-Butyl Branching at the Heart of the Isomer Distinction
DIBP and DBP are structural isomers with the same molecular formula and identical molar mass. The difference lives entirely in the alcohol chain esterified onto the phthalate backbone. DBP carries two linear n-butyl groups; DIBP carries two branched iso-butyl (2-methylpropyl) groups.
The molecular structure explains why this matters at the compounding table. Branching slightly lowers density (1.038 g/cm³ for DIBP versus ~1.045 for DBP) and drops the freezing point (DIBP melts at −37 °C). It also tightens the volatility-versus-gelation trade-off in nitrocellulose-based coatings.
Same family, same regulatory class, measurably different handling at the formulation table.
Physicochemical Properties That Drive DIBP’s Compounding Behavior
DIBP is a colorless viscous liquid with the property profile every plasticizer datasheet has to publish, plus a few numbers that decide whether it earns a slot in your formulation.
| Property | Value | Compounding implication |
|---|---|---|
| Molecular formula | C16H22O4 | Identifies the ester family |
| Molar mass | 278.348 g/mol | Short-chain phthalate band |
| Density at 20 °C | 1.038 g/cm³ | Slightly below DBP — handling delta |
| Melting point | −37 °C | Stays liquid through cold storage |
| Boiling point | 320 °C | Volatility at process temperatures |
| Water solubility | 1 mg/L at 20 °C | Hydrophobic; partitions into polymer |
| log Kow (log P) | 4.11 | High lipophilicity, low aqueous mobility |
| Vapor pressure | 0.01 Pa at 20 °C | Migration risk at elevated temperature |
| Flash point (closed cup) | 185 °C | Standard handling envelope |
What These Numbers Tell a Formulator
The phthalate softening efficiency rank in PVC runs DBP > BBP > DEHP > DINP > DIDP > DTDP. Gelling ability runs BBP > DBP > DIHP > DEHP > DINP > DIDP > DTDP. DIBP sits next to DBP at the short-chain end of the family — high gelling ability, fast fusion, commensurately higher volatility at process temperatures.
The compatibility between plasticizer and polymer governs how this lands in practice. DIBP is too volatile to carry a flexible PVC compound on its own. It earns its slot as a co-plasticizer or gelling aid, where the iso-butyl branching gives a small but real handling advantage over DBP in cold storage and a cleaner gel front in nitrocellulose coatings.
Where DIBP Earns Its Specialty Plasticizer Role
DIBP is a specialist plasticizer used in combination with higher-molecular-weight phthalates as a fast-fusing gelling aid. By itself it is too volatile for sole-plasticizer duty in PVC. In combination it accelerates fusion, lowers the gelling temperature, and improves flex resistance and adhesion of the final compound.
Per TSCA Chemical Data Reporting, US production volumes ran 380,000 to 441,000 pounds per year between 2016 and 2020 — specialist scale, not commodity. The supply chain is thinner than for DBP, DEHP, or DINP, which means substitution may be commercially driven before it is regulatorily forced.
Outside PVC, DIBP has historically served as a plasticizer for nitrocellulose, cellulose ether, polyacrylate, and polyacetate dispersions. The nitrocellulose-based coatings application is where its iso-butyl branching delivers superior stability, flex resistance, adhesion, and water resistance compared with DBP. Adhesives, sealants, and certain defense applications round out the legacy use map.
The pattern across all of these: DIBP’s value sits at the gelling-ability end of the phthalate family. Substitution decisions have to preserve that gelling role, not just match the softening curve.
DIBP’s Jurisdictional Regulatory Posture and Substitution Logic
DIBP carries a Repr. 1B reproductive toxicity classification under EU CLP Regulation 1272/2008 — same hazard class as DBP, DEHP, and BBP — with hazard codes H360Df. That classification is the underlying mechanism for every restriction below. Per REACH regulations, DIBP has been listed as a Substance of Very High Concern since 2008 and sits on the Authorization List (Annex XIV).
Below this threshold the regulatory clock differs by jurisdiction, and the specifier has to read each region separately.
The Jurisdictional Regulatory Clock
| Jurisdiction | Status | Effective date |
|---|---|---|
| EU REACH SVHC | Listed | 2008 |
| EU REACH Annex XIV | Authorization required | post-2008 listing |
| EU RoHS 2 (Directive (EU) 2015/863) | ≤0.1% in EEE | 22 July 2019 (general); 22 July 2021 (Cat 8 medical / Cat 9 monitoring) |
| US TSCA | Draft Risk Evaluation released | 31 July 2025 (final pending) |
| California Prop 65 | Listed | active |
| US CPSIA federal toy ban | DIBP not explicitly named | n/a |
EPA preliminarily found unreasonable risk to workers in 2 of 28 conditions of use and to the environment in 4 of 28. The remaining 22 were not flagged, and the agency did not preliminarily identify unreasonable risk to consumers or the general population for any COU. The public comment period closed 6 October 2025 and final action awaits SACC peer review of the companion DBP/DEHP/DCHP documents.
The biological basis for the SVHC and TSCA listings is the same. DIBP is hydrolyzed in the body to mono-isobutyl phthalate (MiBP), the metabolite implicated in reproductive toxicity studies underpinning the Repr. 1B classification.
Substitute Logic by Application Class
The most important sourcing rule sits inside the regulatory equivalence: the DBP-to-DIBP swap does not escape the EU restriction. Both isomers carry Repr. 1B, both are SVHC, both are restricted under RoHS 2 at ≤0.1% in EEE. Application-wise the two substitute for each other in most uses, but regulatorily they are interchangeable in restriction posture.
Real substitution paths split by application class. For nitrocellulose and cellulose ether dispersions where DIBP’s gelling speed is the value driver, ATBC (acetyl tributyl citrate) is the regulatory-clean short-chain substitute. For PVC plastisol where DIBP is a fast-fusing co-plasticizer, DOTP and DINCH are the volume substitutes, with epoxidized soybean oil (ESO) carrying the bio-based co-plasticizer load where compatibility allows.
The full phthalate-versus-non-phthalate decision frame sits one level above this article. Once the decision shifts from “what is DIBP” to “what do I spec instead,” that read is the next stop.
What Most Compounders Get Wrong About DIBP
The single most expensive error in DIBP specification is treating “restricted” as global. Per REACH regulations DIBP is restricted in the EU electrical and electronic equipment market and authorization-controlled across regulated EU uses. Under US TSCA it sits in draft-evaluation limbo with final action pending.
In California it is Prop 65 listed; in the US CPSIA federal toy framework it is not explicitly named.
A specification written for one region does not map to another, and a substitute selected for one application does not necessarily preserve the gelling-aid role DIBP played in another. Read each jurisdiction separately, hold the gelling-and-volatility profile fixed when you swap, and treat any “DBP for DIBP” swap as a regulatory wash inside the EU even though it works at the formulation table.
