If you work in plastics manufacturing, chemical engineering, or medical device production, you’ve likely encountered Trioctyl Trimellitate—better known as TOTM. This non-phthalate plasticizer is the go-to choice when you need flexibility without volatility. Unlike older plasticizers that migrate out of products or leach into food and blood, TOTM stays put even under high heat.
This guide walks you through exactly how TOTM is synthesized, from raw materials to finished product. Whether you’re evaluating manufacturing processes, optimizing production, or simply want to understand what’s inside your flexible PVC products, you’ll find practical details here.
What Are the Raw Materials Required for TOTM Synthesis?
Creating TOTM requires three key ingredients: trimellitic anhydride, 2-ethylhexanol, and an acid catalyst.
Trimellitic Anhydride (TMA): The Aromatic Backbone

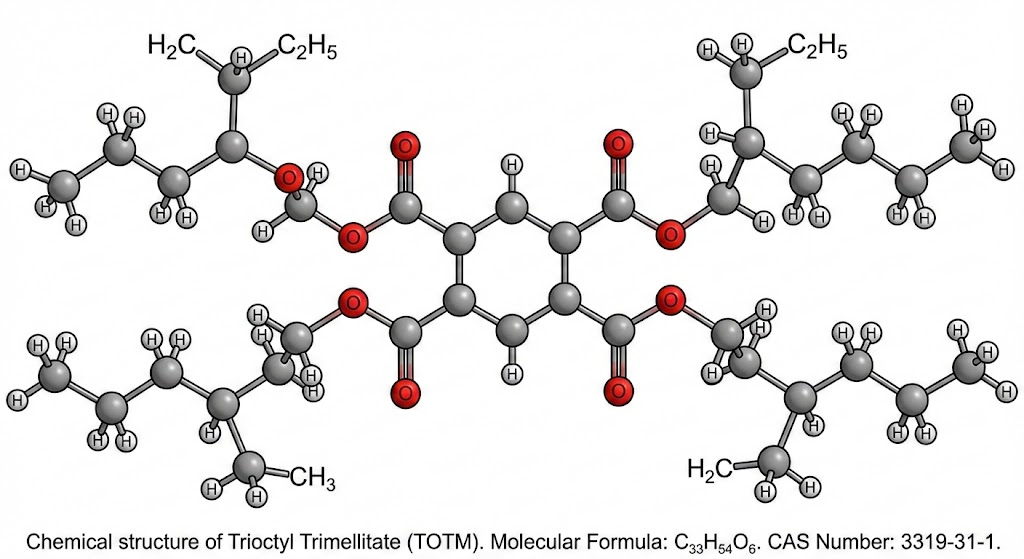

Trimellitic anhydride is your starting point. Think of it as the skeleton of TOTM—it provides the three-armed aromatic structure that makes TOTM so stable and effective.
TMA comes from oxidizing pseudocumene (1,2,4-trimethylbenzene), a hydrocarbon extracted from crude oil refining. During this oxidation process, catalysts like cobalt, manganese, and bromine speed up the reaction. The result is a white powder with a specific chemical structure that’s ready for the next step.
The problem? TMA production isn’t perfectly clean. When manufacturers create trimellitic anhydride, they simultaneously produce some phthalic anhydride as a byproduct. This matters because phthalic anhydride reacts with 2-ethylhexanol to form DEHP—a phthalate plasticizer that TOTM is supposed to replace. As a result, commercial TOTM almost always contains trace amounts of DEHP, typically up to 0.2% contamination from the TMA feedstock alone.
2-Ethylhexanol: The Ester-Forming Alcohol
The second essential ingredient is 2-ethylhexanol. This branched alcohol gets added in excess—typically 3 to 5 times the stoichiometric amount needed. Why the excess? It drives the reaction toward completion and helps remove water, which is crucial for high yields.
2-Ethylhexanol is produced via the oxo process, which starts with propylene and industrial gases. It’s inexpensive compared to exotic alcohols, making TOTM economical to produce at scale. The branched structure of this alcohol also gives TOTM its low volatility—the bulky side chains make it “sticky,” so it doesn’t evaporate during processing or use.
Acid Catalysts: The Reaction Accelerators
Without an acid catalyst, the reaction between TMA and 2-ethylhexanol would be painfully slow. Para-toluenesulfonic acid (PTSA) is the workhorse catalyst used in most industrial processes. It works by protonating the carbonyl oxygen of the trimellitic acid groups, making them vulnerable to nucleophilic attack by the alcohol.
Alternative catalysts include tetraisopropyl titanate (used at 0.3% by mass in some processes) and sulfuric acid. Each has trade-offs in terms of cost, activity, and corrosivity toward equipment.

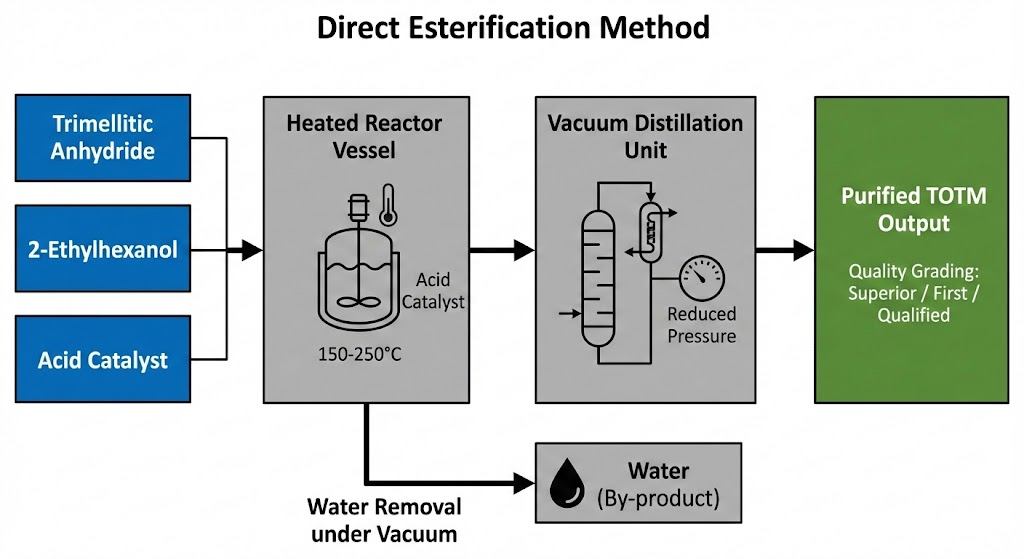

How Does the Direct Esterification Method Work?
The direct esterification method is the most commonly used approach for TOTM synthesis. It’s straightforward: heat TMA and 2-ethylhexanol together in the presence of acid catalyst, remove water continuously, and let equilibrium shift toward product formation.
Step 1: Reactant Mixing and Heating
The process begins with precise measurement. You load trimellitic anhydride and excess 2-ethylhexanol into a reactor vessel equipped with heating, vacuum capability, and a condenser. The acid catalyst (usually PTSA or titanate) gets added at this stage—often 0.3% by mass or less.
Initial heating is gradual. You’re not in a rush. Ramping temperature too quickly can cause side reactions or thermal degradation. Most manufacturers target a gradual rise toward the main reaction temperature.
Step 2: Esterification Reaction at Elevated Temperature
Once the vessel reaches 150-250°C (depending on the specific process), the esterification reaction accelerates. Here’s what’s happening at the molecular level:
The acid catalyst protonates the carbonyl oxygen of trimellitic acid (or its anhydride form). This makes the carbon electrophilic—hungry for electrons. The oxygen of 2-ethylhexanol, being electron-rich, attacks this carbon. A water molecule leaves, and you’ve formed an ester bond.
This happens three times for each trimellitate molecule—once for each carboxylic acid group—creating three ester linkages. Water is generated as a byproduct of each reaction.
The challenge here is equilibrium. In principle, this is a reversible reaction. Without active removal of water, the reaction stalls as water accumulates. That’s where the vacuum comes in.
Step 3: Continuous Water Removal Under Vacuum
This is where the magic happens. As the reaction proceeds, water vapor forms and immediately gets pulled away by the vacuum system. The reduced pressure does double duty: it lowers the boiling point of water, making it easier to remove, and it shifts the equilibrium toward product formation—Le Chatelier’s principle in action.
Manufacturers typically operate at pressures of 10-40 mmHg (about 1-5% of atmospheric pressure). Under these conditions, water that would normally boil at 100°C now boils at 20-30°C. Continuous removal prevents the reverse reaction from occurring.
The result? Yields consistently exceed 98%. Without this vacuum step, you’d be lucky to hit 90%.
The entire reaction cycle takes 4-8 hours depending on batch size and equipment design. Temperature is maintained in the 150-250°C range throughout, and vacuum is held constant.
What Is the Alternative Two-Step Methyl Esterification Method?
Not all manufacturers use direct esterification. Some prefer a two-step process that offers better control and purity. It’s more complex but produces a superior product in some applications.
Step 1: Methyl Esterification Process
In this approach, you first react trimellitic anhydride with methanol instead of 2-ethylhexanol. This creates trimethyl trimellitate—a much simpler, lower-viscosity intermediate product.
The conditions are milder: 60-65°C at normal atmospheric pressure. A titanium-based catalyst like tetraisopropyl titanate (at 0.3% by mass ratio to TMA) drives the reaction. Because methanol is smaller and more reactive than 2-ethylhexanol, this step completes faster and more completely.
The advantage? You purify the trimethyl trimellitate intermediate before moving to the next step. This removes many impurities and unreacted TMA, reducing the final product’s contamination.
Step 2: Transesterification Reaction
Now you take the purified trimethyl trimellitate and react it with 2-ethylhexanol. The alcohol exchanges the methyl groups for 2-ethylhexyl groups—hence “transesterification.”
This happens at higher temperatures (around 150-200°C) with continued vacuum application. The methanol that leaves is easily removed under vacuum because it boils at just 65°C.
The net result: tri(2-ethylhexyl) trimellitate—the final TOTM product—with higher purity than the direct method because you’ve removed intermediate impurities.
This method requires more equipment and more time, so it costs more per unit. But if you’re producing TOTM for medical devices or food contact applications, the reduced DEHP contamination and higher purity justify the expense.
How Is TOTM Purified After Synthesis?
Crude TOTM coming out of the reactor contains unreacted 2-ethylhexanol, byproducts, and trace contaminants. You can’t sell this directly. Purification is essential.
Vacuum Distillation Process
Vacuum distillation is the primary purification method. The crude TOTM is heated under vacuum, and components are separated based on their boiling points.
Here’s why vacuum distillation works well for TOTM: under atmospheric pressure, TOTM would decompose at its boiling point—it simply can’t be separated from impurities without thermal degradation. Under vacuum (typically 0.1-1 mmHg), the boiling point drops by 100°C or more. TOTM volatilizes at a lower temperature where thermal breakdown is minimal.
The process is staged. Temperature gradually increases—often from 180°C to 320°C at the distillation head—while vacuum is maintained. Lighter components (unreacted 2-ethylhexanol, volatile byproducts) come off first. TOTM, with its much higher molecular weight, condenses last.
A well-designed distillation column or short-path distillation apparatus can recover 95%+ of pure TOTM from the crude mixture.
Filtration and Quality Grading
After distillation, the product is filtered to remove any solid impurities (residual catalyst particles, oxidized material, etc.). Modern manufacturers use polishing filters to achieve optical clarity.
The finished TOTM gets graded into three commercial categories:
- Superior Grade: >99.5% purity, colorless to pale yellow, premium applications
- First Grade: 99-99.5% purity, pale yellow color, general industrial use
- Qualified Grade: 98-99% purity, yellow color, cost-sensitive applications
The difference between these grades is measured in purity, color (determined by residual impurities), and viscosity. Superior grade commands premium pricing but guarantees the lowest DEHP contamination and best performance in regulated applications like medical devices.
Conclusion
Making TOTM isn’t simple, but it’s not mysterious either. Two basic synthesis routes exist: direct esterification (faster, simpler) and two-step methyl esterification (slower, purer). Both rely on the same principles: controlled heating, acid catalysis, continuous vacuum to remove water, and careful purification.
The real complexity emerges at industrial scale. Temperature and pressure control become engineering challenges. DEHP contamination from the TMA feedstock requires active management. Raw material price volatility demands strategic sourcing.
If you’re evaluating a TOTM supplier or optimizing your own production, focus on these variables: purity grade (Superior vs. First vs. Qualified), DEHP contamination levels (critical for medical applications), and consistency (batch-to-batch variation). Ask about their synthesis method (direct or two-step), their purity testing protocols (GC specifications), and their raw material sourcing strategy.
