An EHS officer writing a DOP-specific facility SOP cannot lift it from a GHS-format Section 7 — the SDS gives qualitative ranges and stops at “cool, dry, well-ventilated” without naming the four control layers an inspector will ask about. A defensible SOP for dioctyl phthalate adds storage-envelope numbers, gasket compatibility justified by phthalate–elastomer chemistry, PPE anchored to the DEHP DNEL and breakthrough behavior, and a REACH SVHC operational layer that turns Annex XIV status into facility actions.
Per REACH regulations, DEHP is not just an SVHC — it is Annex XIV entry #4 with a sunset date that has already passed, which changes what the SOP must encode.

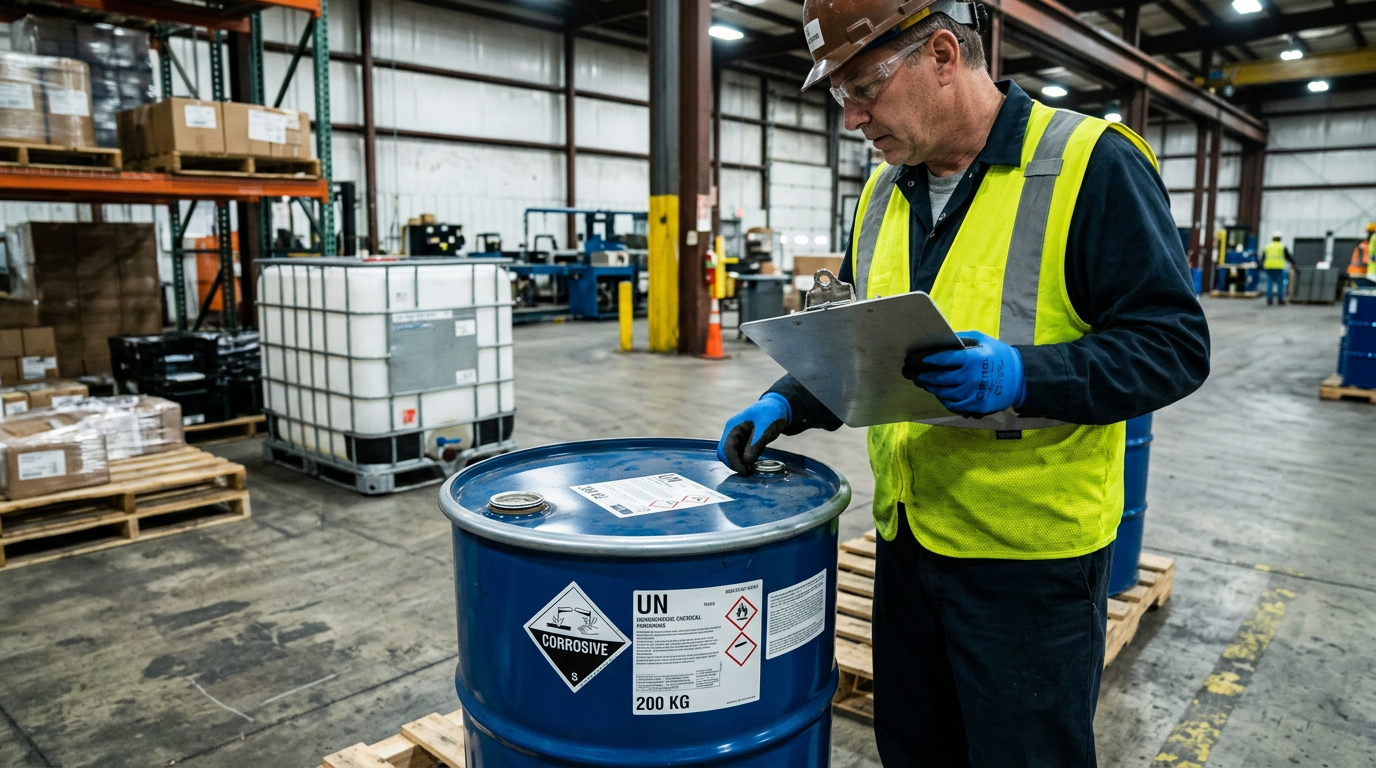

Receive and Inspect Incoming DOP
DOP is normally supplied in 200 kg drums or IBC totes, and the receipt-inspection step that catches aged-stock drift is the one most generic plasticizer SOPs leave out. Build the receipt step around four checks performed before the drum or IBC is released to storage:
- Container and gasket spec match the procurement order. Confirm the seal elastomer is appropriate for long-term phthalate contact before signing the bill of lading.
- Visual: color and clarity. Fresh DOP is a clear, slightly viscous liquid. Yellowing or cloudiness signals oxidation or water contamination upstream.
- Water content (Karl Fischer) on aged stock. Phthalate plasticizers absorb moisture slowly, and water in the compound shows up as porosity in finished flexible PVC.
- Peroxide value on stock more than one year old. Long-storage peroxide rise indicates ester degradation has begun; reject lots that exceed your incoming spec.
Receipt is where the procurement decision on gasket compatibility is verified. A drum arriving with the wrong elastomer seal is the time to refuse the load, not after a six-month storage failure.
Store DOP at Defensible Temperature, Humidity, and Gasket Specs

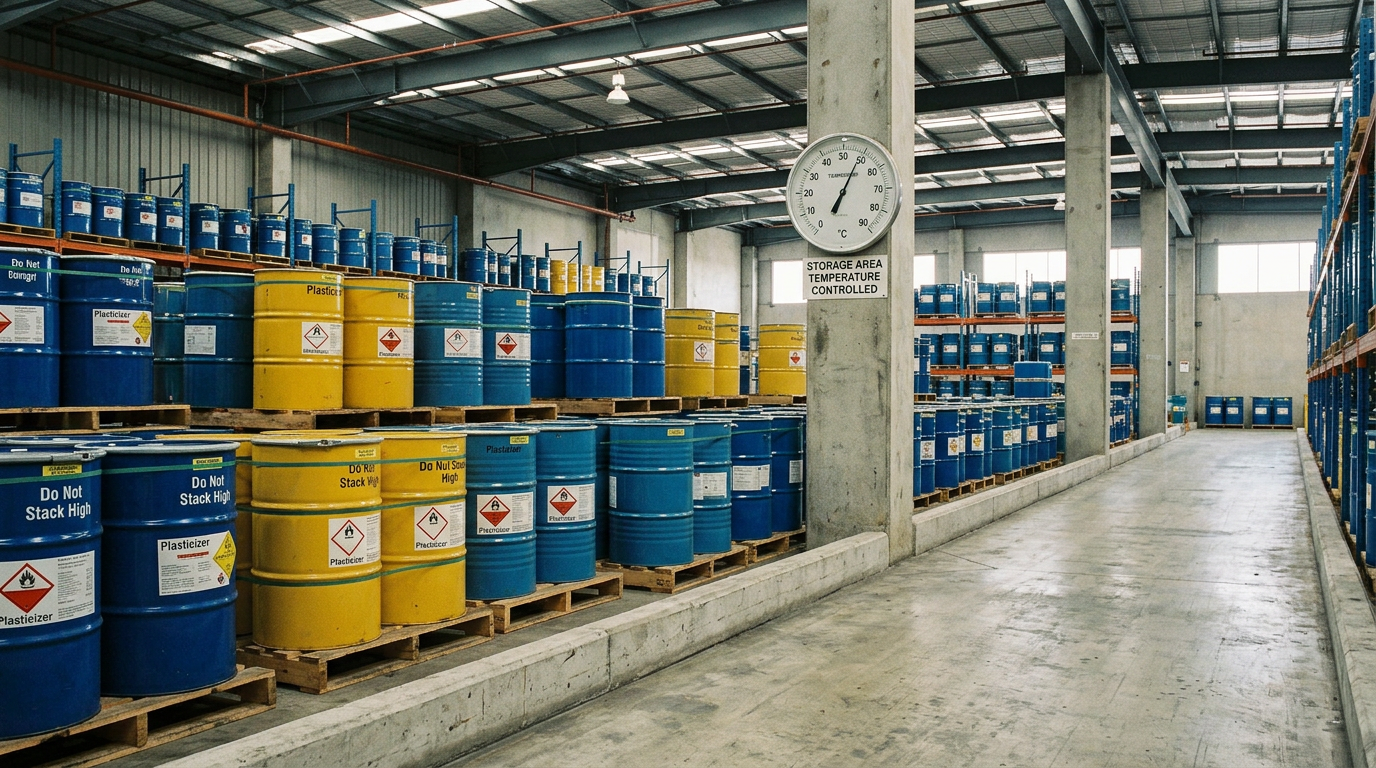

Store DOP below 40 °C with humidity excluded, and the material holds spec for at least one year — that is the envelope an inspector can verify, not “cool, dry, well-ventilated.” The temperature ceiling matters because DOP’s vapor pressure rises with temperature, increasing emission rate inside a closed warehouse and pulling worker exposure toward the DEHP DNEL. Humidity exclusion matters because water uptake compromises the dielectric and clarity properties of the finished compound.
Gasket selection inverts the procurement default. “Viton because it’s chemical-resistant” is the textbook error for phthalate service: most ester plasticizers, including phthalates, cannot withstand the post-cure cycles and temperatures FKM/Viton requires, and only TBEP is documented as a phthalate compatible with FKM.
The compatible elastomer family for DOP long-term contact is NBR (nitrile); EPDM is typically processed without plasticizers and is not appropriate for bulk DOP storage. Specify nitrile for drum bungs, IBC valve gaskets, and pump-body seals where DOP stays in vapor or liquid contact for months.
| Storage parameter | DOP-specific spec | Rationale |
|---|---|---|
| Temperature | Below 40 °C | Limits volatility-driven exposure; preserves shelf life |
| Humidity | Excluded | Prevents water uptake and porosity |
| Gasket elastomer | NBR (nitrile) | Documented phthalate-compatible family |
| Shelf life | At least 1 year | Industry-typical for sealed containers in envelope |
Inspect drum and IBC seals at six-month intervals on long-stored stock. Migration rate depends on temperature and contact time, and a gasket holding for three months in a cool warehouse may not hold for twelve.

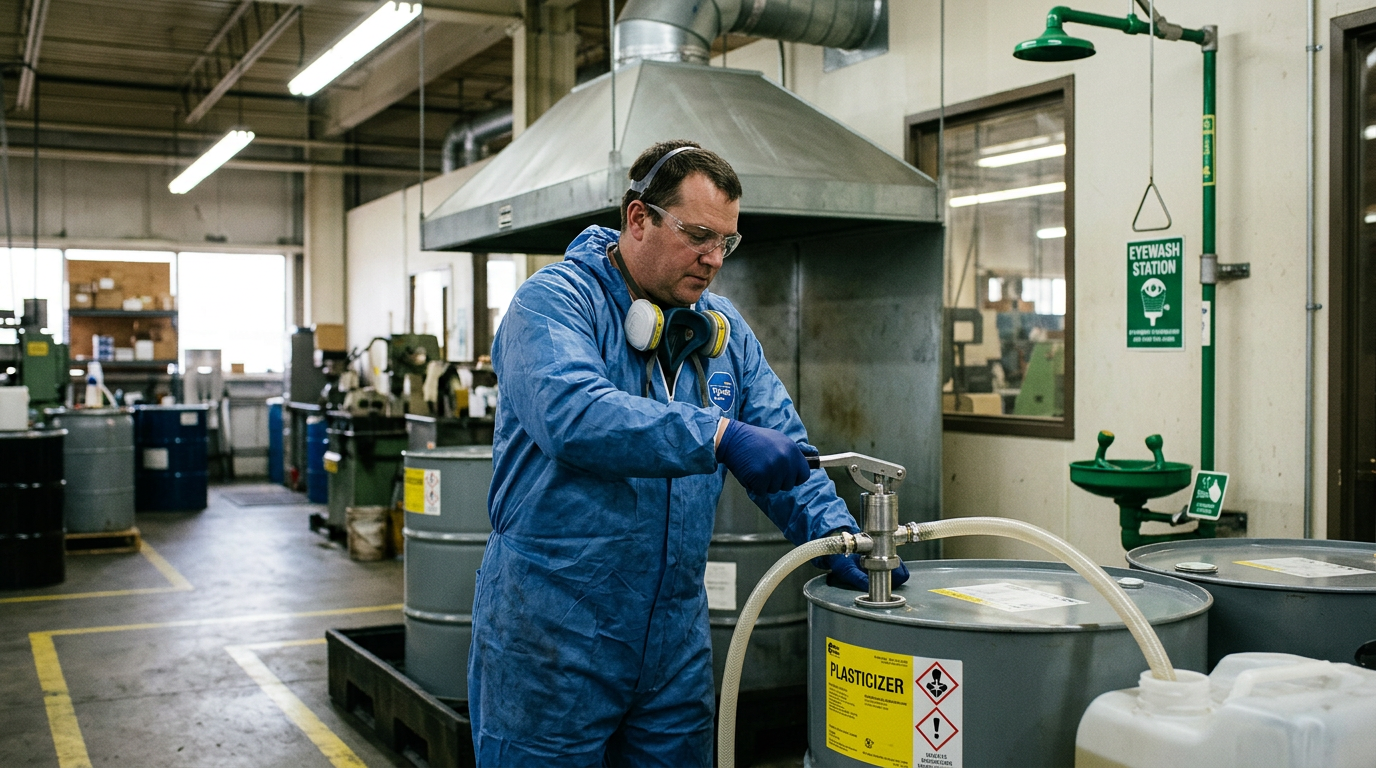

Handle DOP with PPE and Ventilation Anchored to the DEHP DNEL
The defensible ventilation target for a DOP handling area is the DEHP long-term worker inhalation DNEL, which ECHA-derived data places at approximately 1.974 mg/m³ (≈0.32 ppm). That number replaces “ensure adequate ventilation” with a design ceiling: facility air change rate is sized to keep the breathing-zone concentration during drum opening, transfer, and pumping below the DNEL. Confirm the value against the current registrant Chemical Safety Report before encoding it into a published SOP.
PPE specification follows the same shift from adjective to control value. “Wear chemical-resistant gloves” is not a defensible spec — name the material, thickness, continuous-use cap, and replacement trigger:
- Splash protection: nitrile gloves at 5 mil or greater. Below 5 mil, breakthrough may occur in under one minute against organic solvents per the Penn EHRS framework, and chemical breakthrough on nitrile can occur without visible degradation.
- Prolonged DOP contact (drum gauging, IBC sampling, pump line break): butyl rubber or laminate film is the documented alternative. Published ASTM F739 literature shows aromatic solvents can dissolve DEHP from nitrile glove material itself — the procurement-default glove is contributing DEHP to the contact surface, not blocking it.
- Replacement trigger: any contamination event, regardless of whether the glove looks degraded.
- Emergency wash: emergency eyewash and shower meeting ANSI Z358.1 within the immediate work area; safety glasses or face shield during transfer.
For a DOP spill, the response is mechanical: containment plus inert absorbent (vermiculite or commercial oil-absorbent), heavy-duty poly bag, classified hazwaste stream. DOP does not require chemical neutralization.

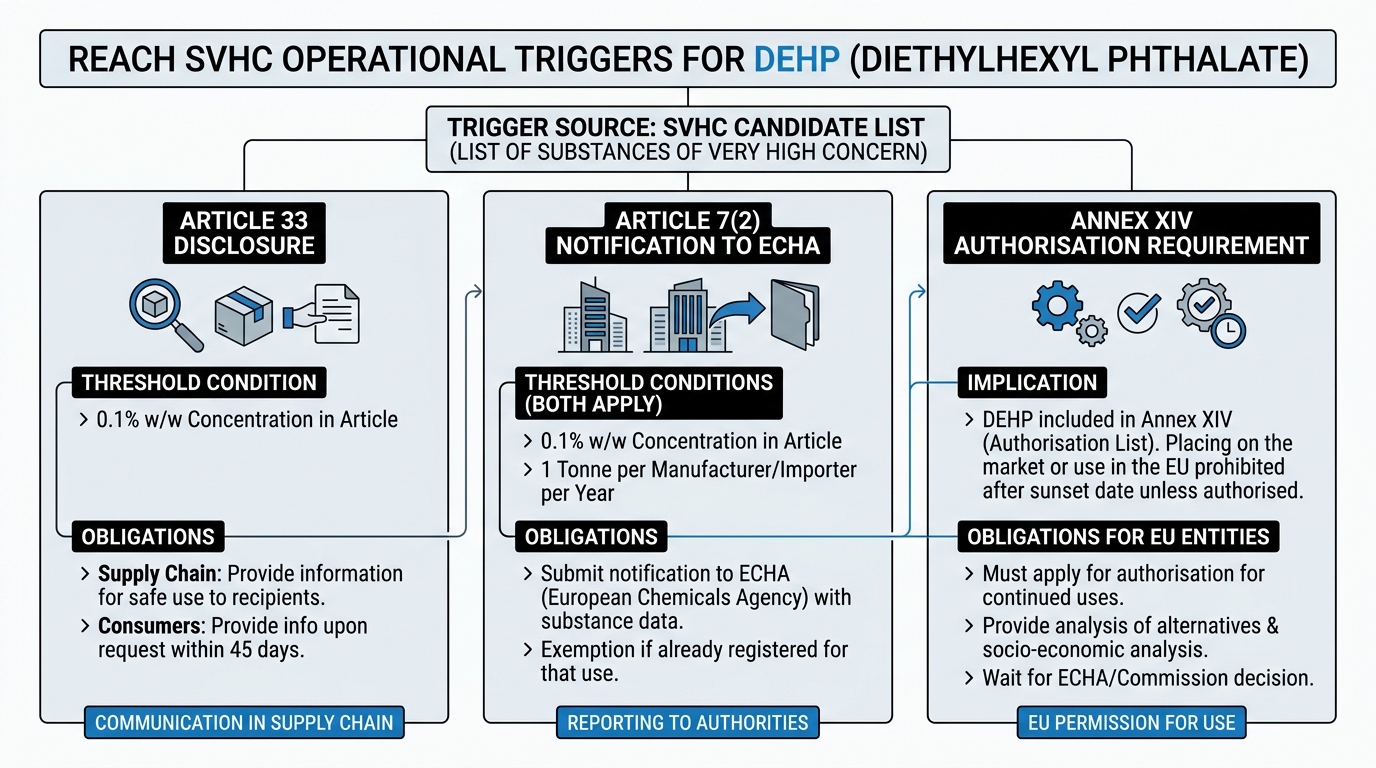

REACH SVHC Status for DOP: Three Concurrent Operational Triggers
Per REACH regulations, DEHP triggers three concurrent facility-level obligations, not one. The procurement-completed-the-paperwork mental model is wrong; the SOP must encode each trigger with its threshold check and documentation step.
Article 33 Disclosure
EU/EEA suppliers of articles containing SVHC at or above 0.1% w/w must communicate downstream within 45 days; the 0.1% threshold applies per article component (CJEU C-106/14), not across the assembled product. For a flexible PVC compounder, any compounded formulation leaving the site with DEHP at or above 0.1% in any component triggers Article 33 regardless of tonnage.
Article 7(2) Notification
When SVHC concentration exceeds 0.1% AND tonnage exceeds 1 tonne per year per producer or importer, mandatory ECHA notification within six months applies. SOPs conflating the two layers miss the case where Article 33 still applies below the 1 t/year threshold.
Annex XIV Authorisation
DEHP is entry #4 with sunset date 21 February 2015; the medical-device extension to 27 May 2025 (Commission Regulation 2021/2045) has also now passed. Use post-sunset is prohibited absent an active authorisation, so the SOP must reference the declared use against the phase-out and authorisation timeline.
Post-unload IBC containers carry their own residue procedure under IBC cleaning after DOP unloading, which feeds back into the Article 33 waste-classification trigger.
Next Steps for Updating Your Facility SOP
Audit your existing DOP SOP against the four layers above: storage envelope numbers, gasket elastomer specified by family (not by “chemical-resistant”), ventilation calculated against the DEHP DNEL, and three concurrent REACH triggers documented as facility actions. Where current SOP language carries adjectives (“cool, dry, well-ventilated”, “wear chemical-resistant gloves”, “REACH compliant”), replace each with the control value or regulatory threshold an inspector can verify. The highest-information-gain swap for DOP specifically is translating Annex XIV entry #4 into the three concurrent triggers — that is where every generic plasticizer SOP stops short.
