Raw materials account for roughly 68% of DOTP production costs. When 2-ethylhexanol prices swung violently in early 2024 after a single European supplier declared force majeure, every DOTP producer downstream felt it within weeks. Knowing that DOTP comes from purified terephthalic acid and 2-ethylhexanol is the easy part. The harder question — and the one that actually drives procurement decisions — is what specifications those feedstocks must meet, how much you need per ton of finished product, and where the supply chain breaks.
PTA and 2-EH: The Two Primary Feedstocks
DOTP (dioctyl terephthalate) is synthesized through direct esterification of two raw materials: purified terephthalic acid (PTA) and 2-ethylhexanol (2-EH). The stoichiometric reaction consumes 1.000 kg of PTA and 1.568 kg of 2-EH to yield 2.352 kg of DOTP, with water as the only byproduct. That clean reaction profile is one reason DOTP has become the dominant non-phthalate plasticizer.
Purified Terephthalic Acid (PTA)
PTA is the dicarboxylic acid that forms the backbone of the DOTP molecule. Its petrochemical pathway runs from crude oil through naphtha cracking to para-xylene (PX), which is then oxidized to produce PTA. This places DOTP feedstock pricing two steps removed from crude oil markets.
PTA is supplied as a white crystalline powder or pellets. The molecular structure explains why purity matters here: any residual 4-carboxybenzaldehyde (4-CBA) from incomplete oxidation carries through into the final ester product, degrading color and thermal stability. Fiber-grade PTA (used in polyester textiles) typically meets the purity threshold for DOTP production, though some producers prefer polymer-grade PTA for tighter color control.
2-Ethylhexanol (2-EH)
2-EH is the alcohol component, and it drives most of the cost variability in DOTP production. The supply chain starts with propylene, which undergoes hydroformylation (the oxo process) to produce butyraldehyde, followed by aldol condensation and hydrogenation to yield 2-EH.
This three-step synthesis makes 2-EH supply sensitive to propylene availability and oxo-process capacity. Global production is concentrated among a handful of large chemical companies, which creates the single biggest supply chain vulnerability for DOTP manufacturers.
Stoichiometric Ratios and Consumption Per Ton

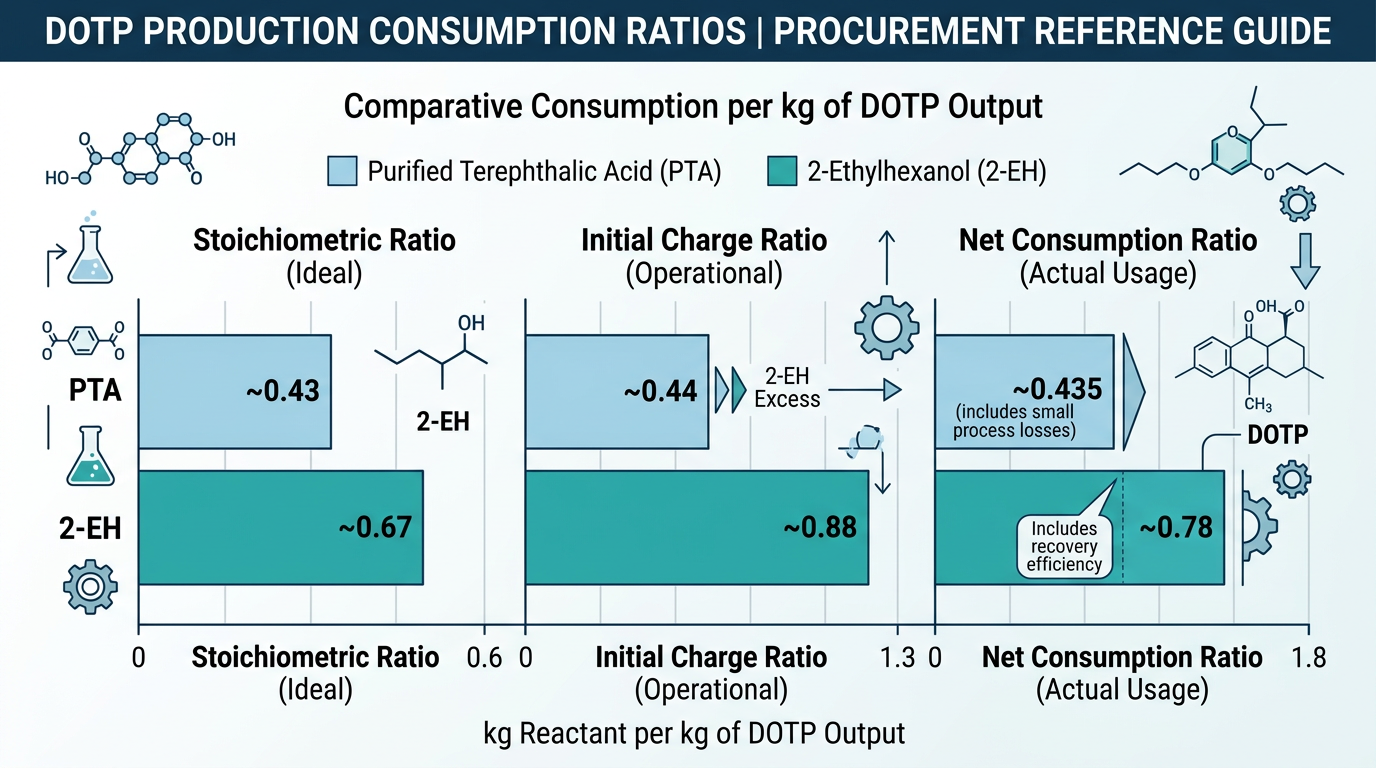

The textbook ratio of 1.000 kg PTA to 1.568 kg 2-EH reflects pure stoichiometry. No production plant runs at stoichiometric ratios.
In practice, the initial charge loads approximately 1.85 kg of 2-EH per kilogram of PTA — roughly 18% above stoichiometric. This excess is not waste. Esterification is an equilibrium reaction, and driving it to completion requires excess alcohol to shift the equilibrium toward the ester product. Water removal through azeotropic distillation assists this shift, but the alcohol excess remains essential for achieving target conversion rates above 99%.
After the reaction completes, unreacted 2-EH is recovered through vacuum distillation and recycled. Net consumption lands at 1.60-1.65 kg of 2-EH per kilogram of PTA, remarkably close to the stoichiometric requirement. For procurement planning, budget roughly 0.43 kg PTA and 0.70 kg 2-EH per kilogram of finished DOTP, accounting for recovery efficiency.
That 18% excess charge is where I see procurement teams make mistakes. They calculate raw material needs based on stoichiometric ratios and then wonder why the plant is short on 2-EH within the first month. Always budget against the initial charge ratio, not the net consumption figure, unless your recovery system is already proven.
Catalyst and Auxiliary Chemicals
The esterification reaction also consumes a catalyst and several auxiliary chemicals that the simplified equation omits.
The standard catalyst for DOTP esterification is titanium tetraalkoxide, typically titanium tetrabutoxide or titanium tetraisopropoxide, loaded at 50-200 ppm titanium by weight of the reaction mixture. Catalyst selection and loading affect both reaction rate and product color. Higher catalyst concentrations accelerate the reaction but risk darker product color from titanium residue. Most producers target 100-150 ppm as the practical optimum.
An inert gas purge — typically nitrogen at 2-5 volumes per volume of reaction mixture per hour — strips water from the reaction zone and maintains an oxygen-free atmosphere. The nitrogen feed is continuous throughout the 10.5-hour batch cycle at temperatures of 180-270 C and pressures of 1-4 bar gauge.

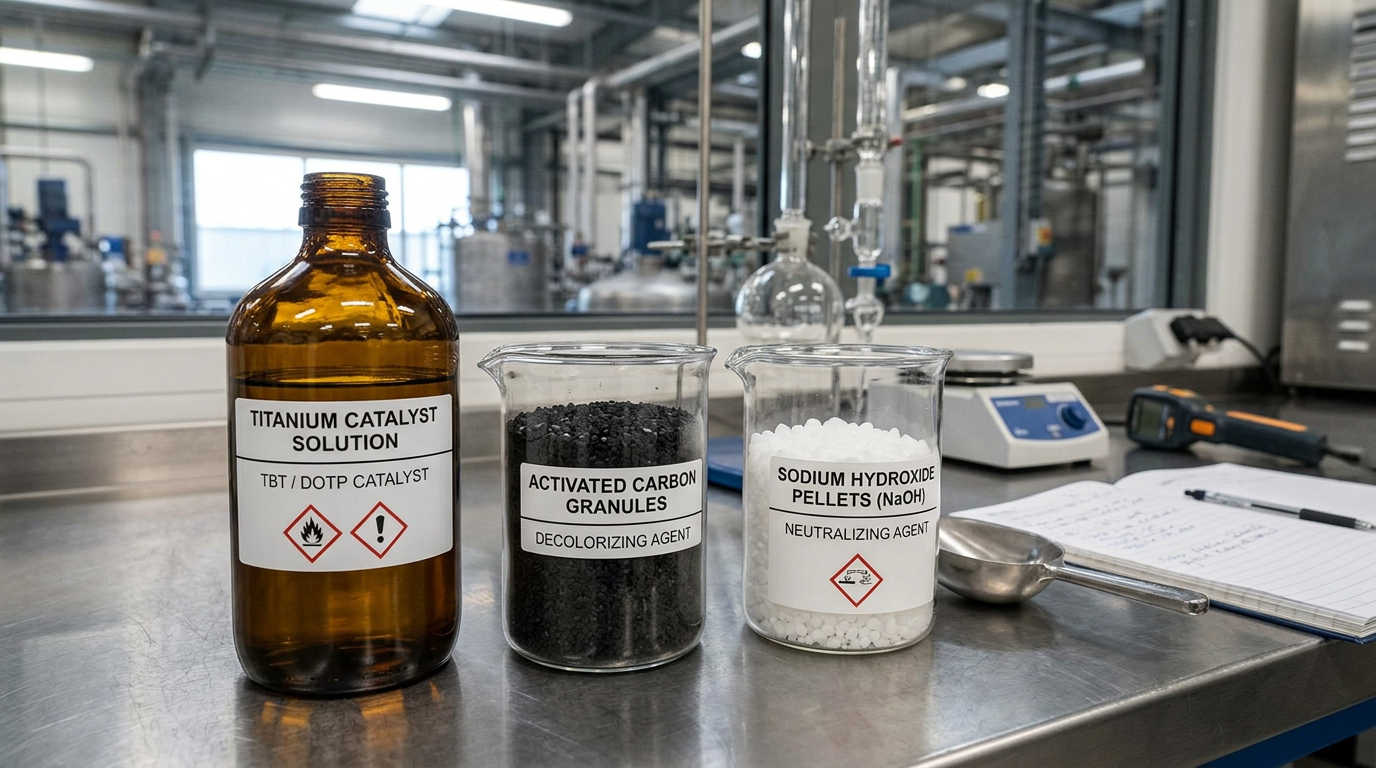

Post-reaction processing requires activated carbon for decolorization, filter aids for clarity, and neutralization agents (typically sodium hydroxide or sodium carbonate) to reduce residual acidity. These auxiliary materials make up a small fraction of total raw material cost but have outsized impact on final product quality.
Quality Specifications That Affect DOTP Performance
Naming PTA and 2-EH as raw materials is the simple answer. The specification details are where procurement decisions succeed or fail, because impurities in feedstock propagate directly into the finished plasticizer.
PTA Quality Parameters
PTA purity should exceed 99.0% for DOTP production. The critical impurity is 4-CBA content — fiber-grade PTA typically holds 4-CBA below 25 ppm, which is acceptable. Moisture content below 0.3% prevents hydrolysis side reactions during esterification. Color (measured as b* value) should be below 1.0 on the Hunter scale. I have seen batches with off-spec PTA color produce DOTP with a yellow tint that no amount of activated carbon treatment fully corrects.
2-EH Quality Parameters
2-EH purity above 99.0% is standard, with particular attention to water content (below 0.1%) and acid value (below 0.05 mg KOH/g). Aldehyde content is the specification most often overlooked in procurement — residual butyraldehyde above 0.1% causes odor issues in the finished DOTP that are impossible to remove downstream. The molecular structure explains why: aldehydes react during esterification to form low-molecular-weight esters with strong, persistent odors.
Process Monitoring Targets
During esterification, three parameters determine when the reaction is complete: acid number (AN) measuring unreacted PTA, alcohol content (AL) tracking residual 2-EH, and moisture held at 0.1-0.5% by weight. The endpoint is not a single number but a simultaneous target — the AL/AN ratio must reach its optimum while moisture stays below threshold.
Well-controlled esterification produces DOTP at 99.42% purity by gas chromatography, with combined impurities below 0.2%. Market grades range from 96% to 99.5% purity, and the difference traces directly back to raw material quality and process control. Specifying only the final DOTP purity without understanding what drove it there leaves procurement teams unable to diagnose quality drift at the source.
Supply Chain Dependencies and Sourcing Risks
DOTP raw materials sit deep in the petrochemical value chain, and that depth creates concentration risks most procurement teams underestimate.
Upstream Petrochemical Dependencies
PTA depends on para-xylene supply, which depends on naphtha cracking or catalytic reforming capacity. 2-EH depends on propylene supply and oxo-process infrastructure. Both feedstocks are ultimately tied to refinery operations, but through different intermediates — meaning a disruption in one rarely affects the other simultaneously. This asymmetry is actually an advantage for supply chain planning.
The emerging alternative feedstock route worth monitoring: PTA recovery from waste polyester (PET) through glycolysis or methanolysis. This recycled PTA route is gaining industrial traction, though quality equivalence data for DOTP-grade applications remains limited. As a chemist, I would want to see 4-CBA levels and color specifications verified batch-by-batch before qualifying recycled PTA for plasticizer production.
Geographic Concentration and Disruption Risk
In February 2024, a fire at OQ Chemicals’ syngas unit in Oberhausen, Germany forced the company to declare force majeure on 2-EH supply. European DOTP producers scrambled for alternative sources, and prices spiked within weeks. The incident demonstrated how a single facility failure can cascade through the entire DOTP and DOP supply chain.
China is adding 870,000 tons per annum of new 2-EH capacity in 2025, which shifts global supply dynamics sharply. Chinese 2-EH exports already reached 68,382 metric tons in the first eleven months of 2024. But geographic concentration in one region trades one risk for another — supply may be abundant, but trade policy adds friction. US anti-dumping duties on plasticizers finalized in October 2024 range from 7% (Malaysia) to over 80% (Turkey), reshaping which supply routes remain economically viable.
Supply chain diversification matters more than spot price optimization for 2-EH sourcing. A single-source strategy that saves 3-5% on feedstock cost provides no protection against a force majeure event that halts production entirely.
Raw Material Cost Structure

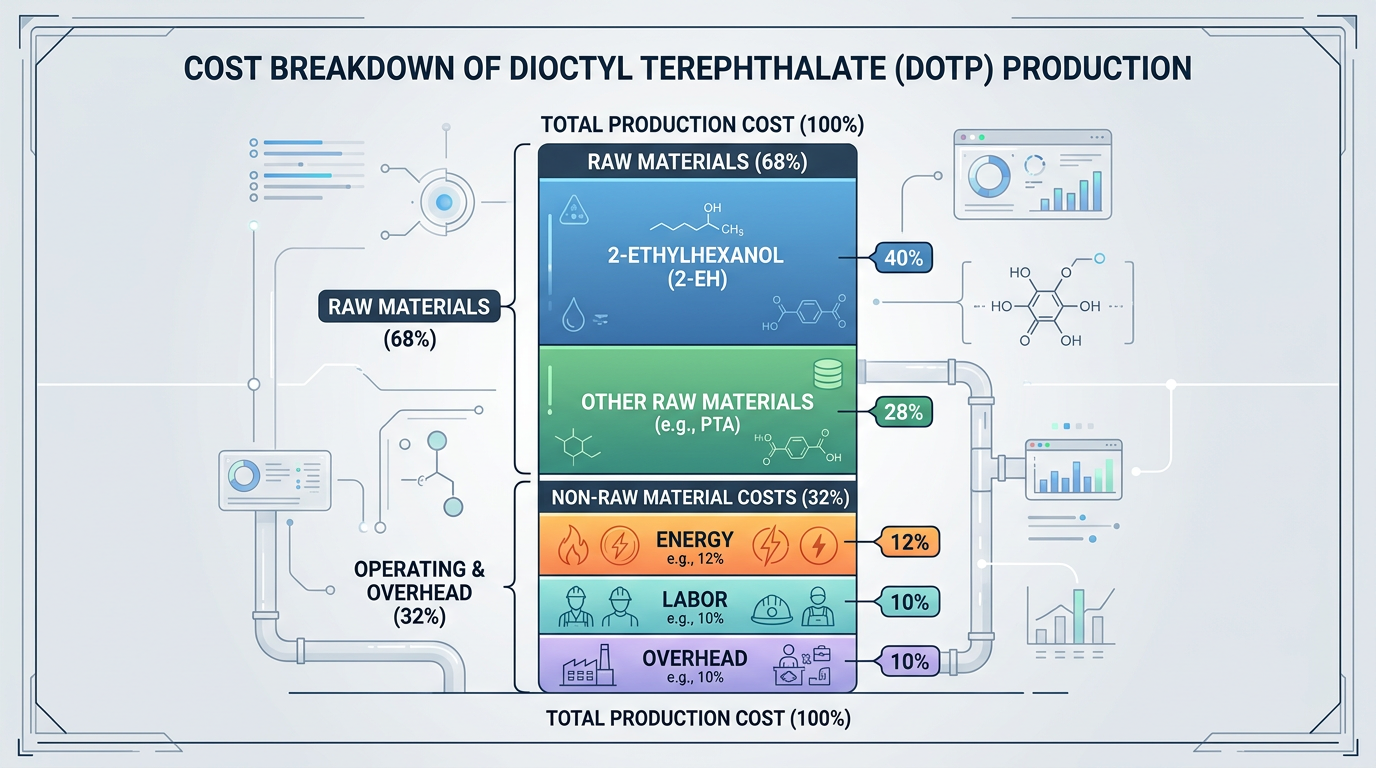

Raw materials account for 68.3% of total DOTP production expenses. Of that, 2-EH is the dominant cost driver — its price volatility alone caused a 22.4% variation in overall manufacturing costs in 2024.
China DOTP prices peaked at $1,618 per ton ex-works in January 2024, driven largely by 2-EH supply disruption. By year-end, prices had fallen as supply normalized. This pattern repeats: DOTP pricing tracks 2-EH feedstock cost with a lag of roughly 4-6 weeks.
For procurement budgeting, the PTA component is relatively stable because PTA markets are large (driven primarily by polyester fiber demand, not plasticizers) and well-supplied. The 2-EH component is where cost uncertainty concentrates. Hedging strategies, long-term supply agreements, and geographic diversification of 2-EH sourcing provide more cost stability than chasing spot market bargains.
Key Takeaways for Procurement
Raw material procurement for DOTP production is not a chemistry exercise — it is a supply chain risk management problem. The two feedstocks are straightforward, but the specifications, consumption ratios, and sourcing vulnerabilities behind them determine both product quality and cost predictability.
Budget against the 1.85 kg initial charge ratio for 2-EH, not the stoichiometric 1.568 kg. Specify PTA with 4-CBA and color limits, not just purity percentage. And treat 2-EH supplier diversification as insurance, not overhead. The 68% raw material cost share means that feedstock decisions ripple through every downstream quality and pricing conversation. Get the raw materials right, and the rest of DOTP production becomes manageable.
