Why does a PVC formulation that performs flawlessly in one plant show early yellowing in another, even when using identical stabilizer packages? The answer often lies not in the individual additives, but in how they interact with each other and with processing conditions.
Plasticizers make PVC flexible. Stabilizers prevent degradation during processing. But these two additive systems do not operate independently. The type and amount of plasticizer directly affects how much stabilizer you need, and certain combinations work synergistically while others cause problems. This interaction is the foundation of effective PVC formulation.
How Stabilizers Protect PVC During Processing
Stabilizers neutralize the hydrochloric acid (HCl) released when PVC is heated to processing temperatures of 170-180C. Without this protection, PVC degrades through a mechanism called “zipper elimination” – once degradation starts at one point in the polymer chain, it continues along the chain like a zipper opening.
Calcium-zinc stabilizers work by scavenging this released HCl. Calcium stearate reacts with HCl to form calcium chloride and stearic acid, removing the acid from the system. Zinc stearate does the same, but zinc has an additional advantage: it can substitute carboxylate groups for unstable chlorine atoms along the polymer chain, stopping the degradation sequence before it propagates.
The activation energy required to initiate degradation varies by stabilizer type. Research shows organic-based stabilizers (OBS) require 140 kJ/mol, compared to 132 kJ/mol for lead-based and 110 kJ/mol for calcium-zinc systems. Higher activation energy means better initial protection, though all three systems provide adequate stability when properly formulated.
The Interaction Between Plasticizers and Stabilizers
Types of plasticizers affect stabilizer performance in ways that go well past simple coexistence. Some plasticizers actively contribute to stabilization, while others increase stabilizer demand.
Epoxidized soybean oil (ESBO) is the best example of this synergy. ESBO does double duty: it plasticizes PVC while simultaneously scavenging HCl through its epoxide ring structure. The epoxy group also restores labile chlorine atoms back into stable positions in the polymer chain. At 1-5 phr, ESBO improves both thermal stability and mechanical properties.

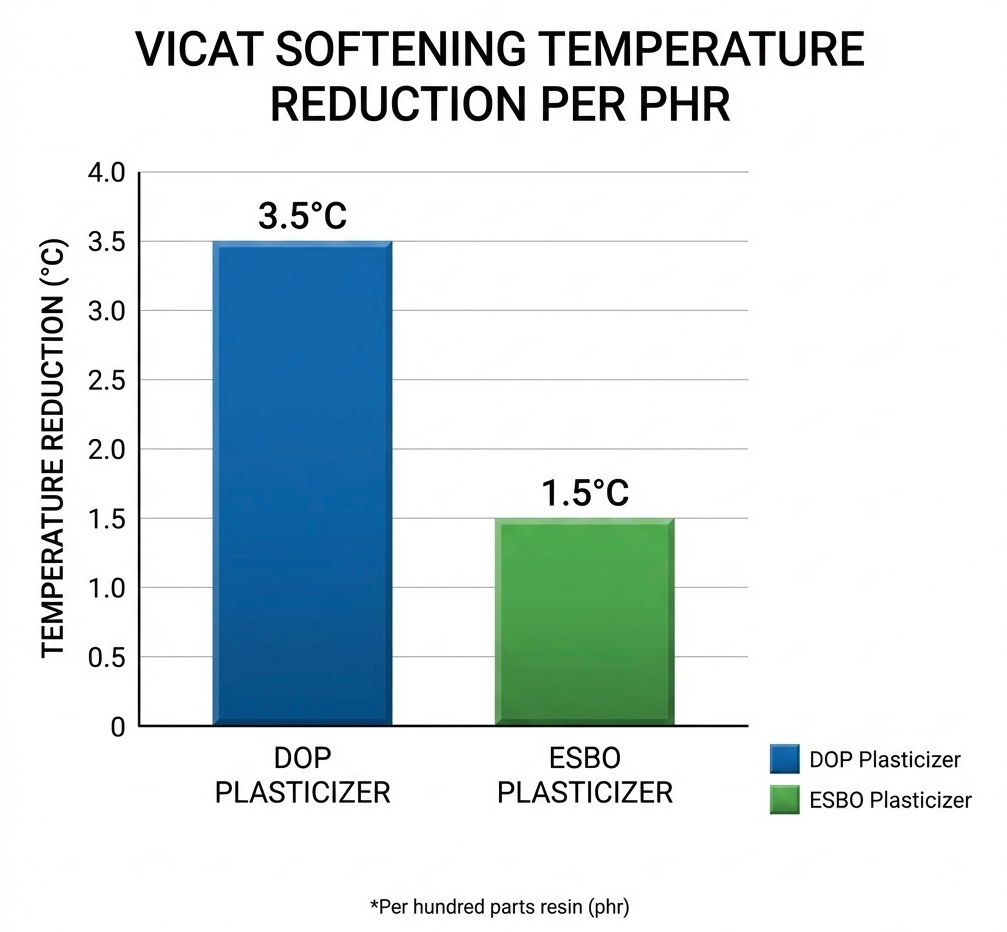

The thermal performance difference is measurable. For every phr of standard DOP plasticizer, the Vicat Softening Temperature drops by 3.5C. ESBO causes only a 1.5C reduction per phr. This means ESBO allows higher service temperatures at equivalent plasticizer loading, or permits reduced stabilizer levels while maintaining the same protection.
Phosphite co-stabilizers show similar synergy with calcium-zinc systems. The combined effect of epoxy compounds and metal carboxylates exceeds what either provides alone. This is why the formulation balance – the interaction between components – determines performance more than any single additive choice.
Selecting Compatible Combinations
Not all plasticizer-stabilizer combinations work equally well. Selection requires matching the additive system to application requirements while avoiding known incompatibilities.
Stabilizer-Plasticizer Compatibility Quick Reference
Secondary plasticizers have compatibility limits that affect formulation stability:
| Plasticizer Type | Maximum Loading | Notes |
|---|---|---|
| Chlorinated paraffin | 15-20 phr | Exudes above this level |
| Aliphatic esters (DOA, DOS) | 25% of total plasticizer | Higher ratios cause bloom |
| ESBO | 3.0 phr maximum | Bleeding risk above this level |
Exceeding these limits causes visible problems: oily surface films, reduced mechanical properties, and potential product recalls.
Application-Based Selection
Service temperature determines plasticizer selection, which then influences stabilizer requirements:
| Heat Rating | Suitable Plasticizers | Stabilizer Considerations |
|---|---|---|
| 60C | DIOP, DOP, DINP, DIDP | Standard Ca-Zn or Ba-Zn systems |
| 90C | DUDP, DTDP, TOTM | Increased stabilizer loading; consider ESBO co-stabilizer |
| 105C | TIOTM, TOTM | Maximum stabilizer package; ESBO essential |
TOTM requires 15-25% higher loading than DOP to achieve equivalent softness. This increased plasticizer content means the stabilizer system must also be adjusted upward to maintain protection during processing.
For cable insulation, typical formulations use 50-60 phr plasticizer with 4-6 phr composite lead stabilizer (where regulations permit) or 6-8 phr calcium-zinc stabilizer for lead-free applications.
When properly designed, synergistic blends outperform single-plasticizer formulations. Research on tributyl citrate (TBC) and DOTP at 1:1 ratio achieved 95.51% transmittance with only 12.43% haze – better optical properties than either plasticizer alone – while maintaining thermal stability exceeding 180 minutes at 180C.
Signs of Incompatibility and How to Troubleshoot
When stabilizers and plasticizers do not work together properly, the symptoms appear during processing or in the finished product.

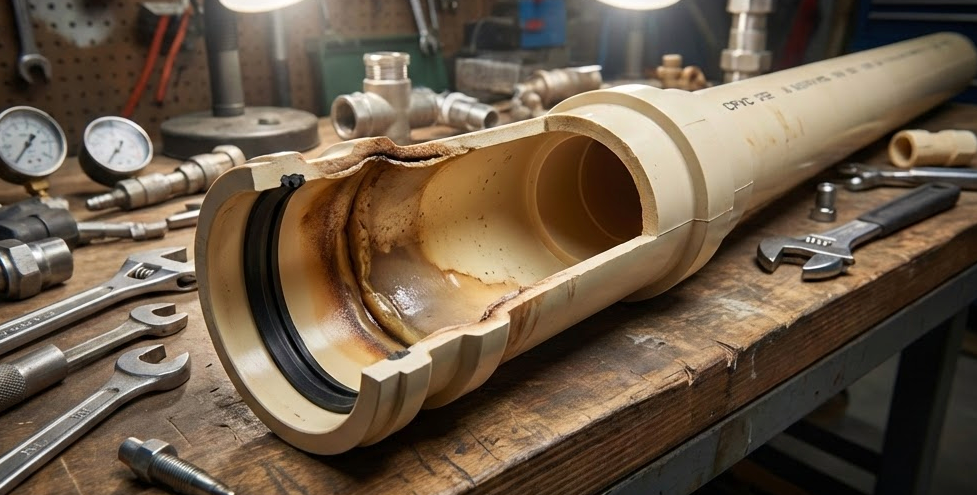

A CPVC pipe failure case illustrates the consequences. Phthalate plasticizers migrated from rubber gaskets into the rigid CPVC pipe material. The absorbed plasticizer caused macro-softening of the pipe wall, leading to eventual rupture. The pipe and gasket were both acceptable materials individually, but their interaction caused failure.
Processing problems may indicate formulation imbalance rather than incorrect stabilizer selection. Fillers like calcium carbonate can adsorb stabilizer molecules on their surface, reducing the effective stabilizer present in the PVC matrix. The formulation sheet may show adequate stabilizer, but the actual protection is lower than specified.
Moisture is a quiet destabilizer. PVC resin itself is not very hygroscopic, but fillers like CaCO3, wood flour, or even poorly stored stabilizer powders can carry moisture into the formulation. Trace copper or iron from equipment can accelerate decomposition, overwhelming stabilizers that would otherwise provide adequate protection.
When identical stabilizer packages produce different results across facilities, check these factors:
- Mixing speed: too low leaves stabilizer clumps; too high causes premature consumption through shear heating
- Peak mixing temperature: should be controlled to 120-130C
- Filler source and moisture content
- Equipment contamination with copper or iron
Getting the Balance Right
The interaction between stabilizers and plasticizers is predictable once you understand the mechanisms. Plasticizer type affects stabilizer demand. Some plasticizers like ESBO contribute to stabilization. Compatibility limits exist for secondary plasticizers. Processing conditions can reduce effective stabilizer levels below what the formulation specifies.
Incompatible plasticizers bleed out as oily films – a sign that the formulation balance needs adjustment rather than simply adding more of either component.
For specific plasticizer selection decisions in your application, start with the heat rating requirement, select primary plasticizer accordingly, then adjust the stabilizer package to match. Consider ESBO as a co-stabilizer for demanding applications. Test the complete system, not individual components.
