A sticky, wet compound coming out of the cooler mixer means one thing: the DOP never fully absorbed into the resin. I see this problem on at least one in every five production lines I visit, and it almost always traces back to the same handful of procedural mistakes during hot mixing. The fix is not complicated, but it requires getting the sequence, temperatures, and timing right — and knowing what to look for at each stage instead of blindly following a thermocouple reading.
Equipment Setup and Batch Preparation
Before adding anything to the mixer, confirm three parameters: fill level, blade speed, and resin grade compatibility.
Fill Level and Blade Speed
Fill the hot mixer to 70-75% of its net volume. Overfilling kills the vortex action that distributes DOP across resin particles. Underfilling wastes cycle time and energy. Set the hot mixer blade speed to 1300-1500 RPM — enough to create a strong vortex without flinging material above the deflector. The cooler mixer runs at roughly 450 RPM, just enough to tumble and cool without generating frictional heat.
Resin Grade Check
The K-value of your PVC resin determines how much plasticizer it can absorb and how quickly. Higher K-value resins (K-67 and above) have greater porosity — more open pores per grain — which means faster DOP uptake. Lower K-value resins (K-57 to K-60) have tighter grain structure, requiring longer absorption time or lower mixer speeds. If you are running a high-PHR formulation (above 50 PHR) on a low-porosity resin, expect cycle times to stretch well beyond the 7-12 minute standard window. Check resin porosity against your plasticizer loading before committing to a batch schedule.
Hot Mixer Procedure
Eight out of ten mixing failures I troubleshoot start in the hot mixer — wrong addition temperature, wrong speed, or wrong sequence. The order of addition follows the physics of how DOP penetrates PVC grain structure.

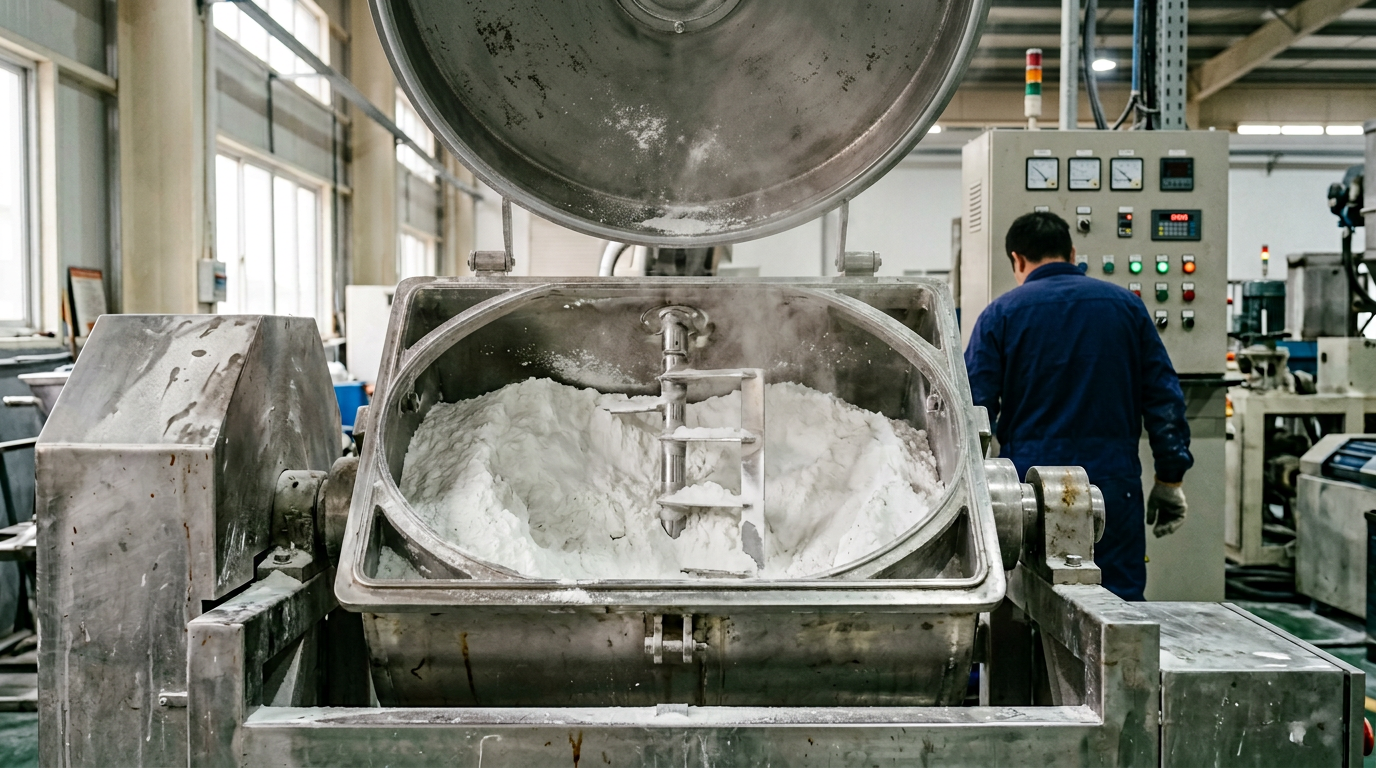

Initial Charge
Charge PVC resin at room temperature. Add thermal stabilizers and lubricants immediately. These dry powders disperse quickly under high-speed mixing and need the longest heat exposure to activate. Run the mixer at full speed. The friction from blade rotation heats the batch — no external heating needed at this stage.

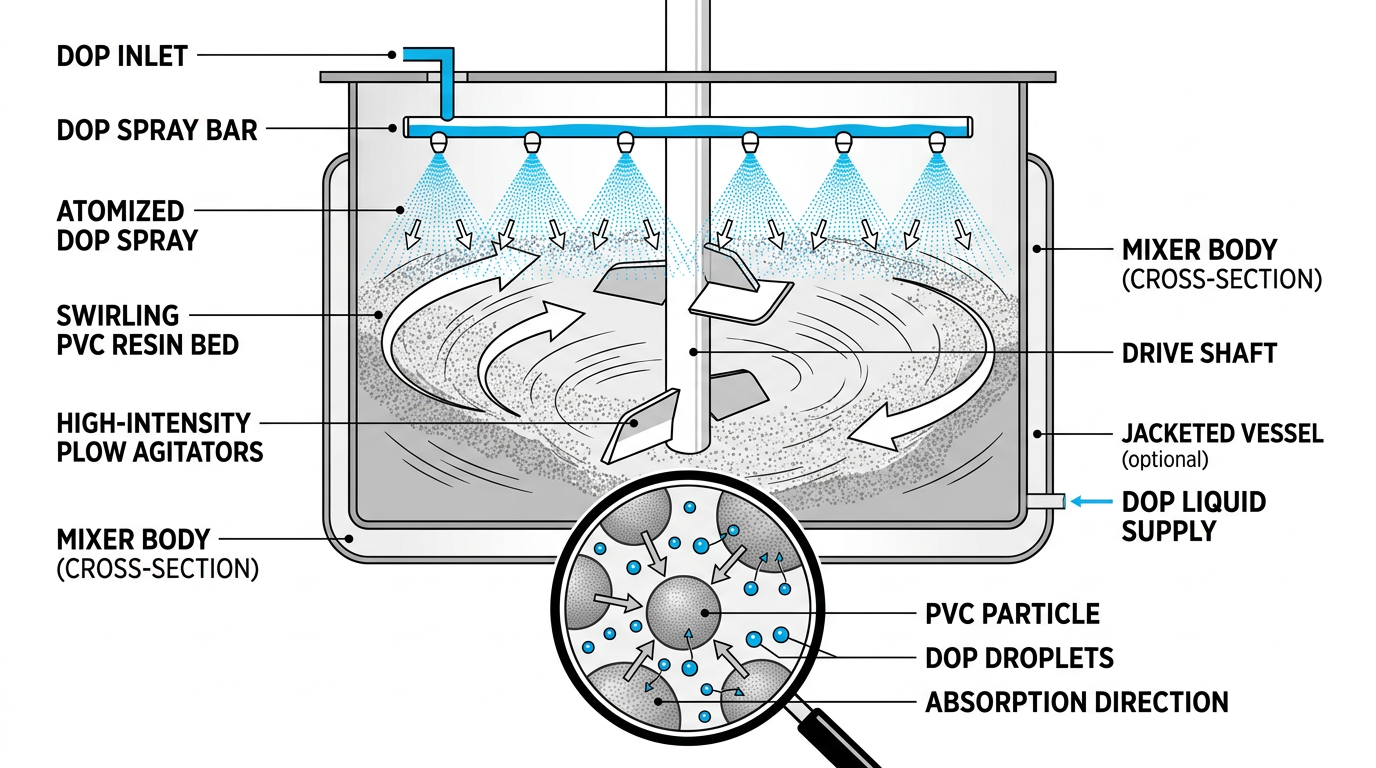

DOP Addition at 70-80C
When batch temperature reaches 70-80C, reduce mixer speed and begin adding DOP. This temperature range is not a suggestion — it corresponds to the glass transition zone where PVC grain pores physically open and allow plasticizer to penetrate the amorphous regions.
You will find competing advice on this temperature: some sources say 50C, others say 80C, others cite 200F. The disagreement exists because they reference different stages of the same absorption process. At 50C, DOP only wets the grain surface — it sits on the outside. At 70C, grain relaxation begins and pores start accepting liquid. At 80C (PVC’s Tg), rapid diffusion kicks in. DOP has a fusion temperature of 84C, which means once both the resin and the plasticizer reach this zone, absorption accelerates fast.
For most S-PVC resins at 30-50 PHR loading, start DOP addition at 70C and allow absorption to continue through the 80-84C zone. For high-PHR formulations above 50 PHR, start earlier at 60-65C and consider splitting the DOP into two portions — add 60% at the lower temperature, then the remainder after the first portion absorbs.

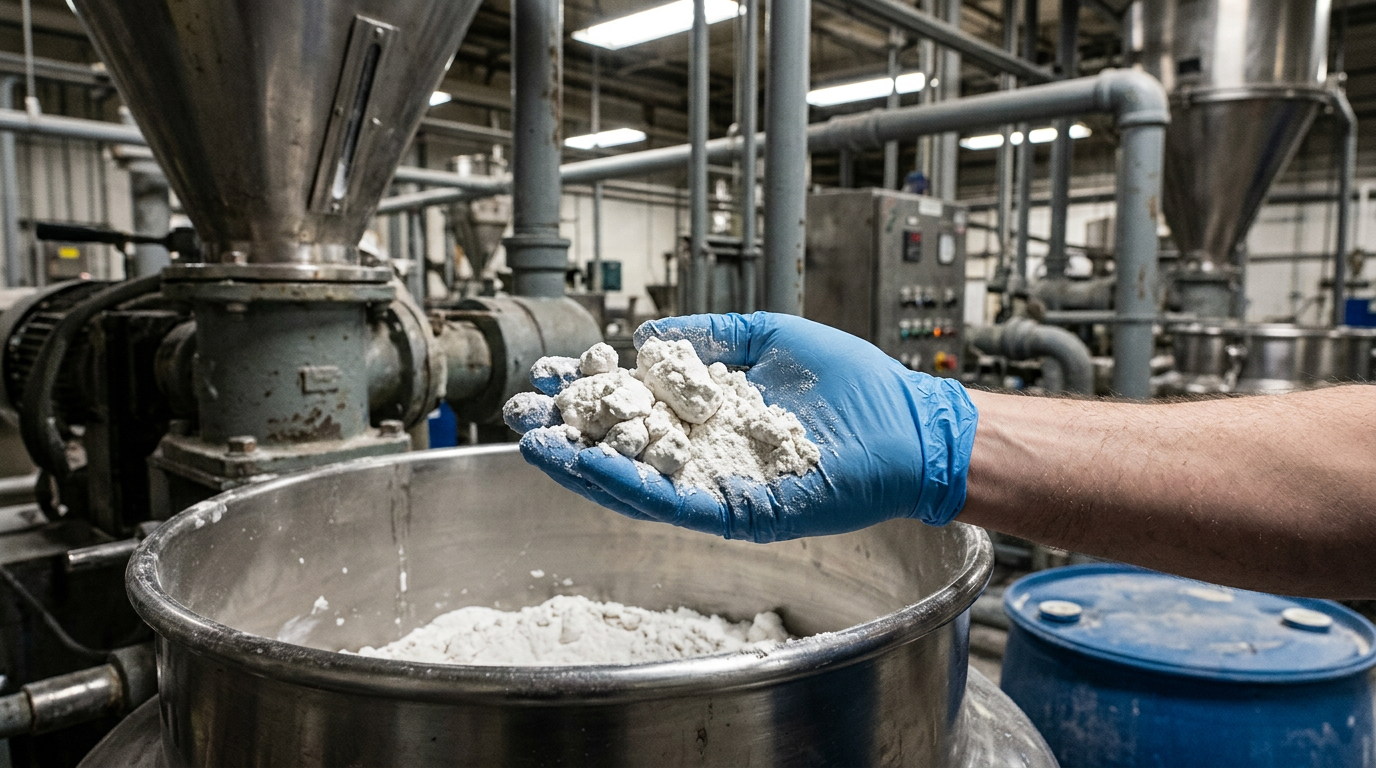

Speed reduction during DOP addition is essential, not optional. High blade speed disperses the plasticizer into a fine mist before the grains can absorb it. You end up with a wet, caked mass that takes far longer to dry off — or never fully dries. Drop to low speed (or use a two-speed approach: low during addition, high after all DOP is in) until the ammeter shows the characteristic absorption pattern.

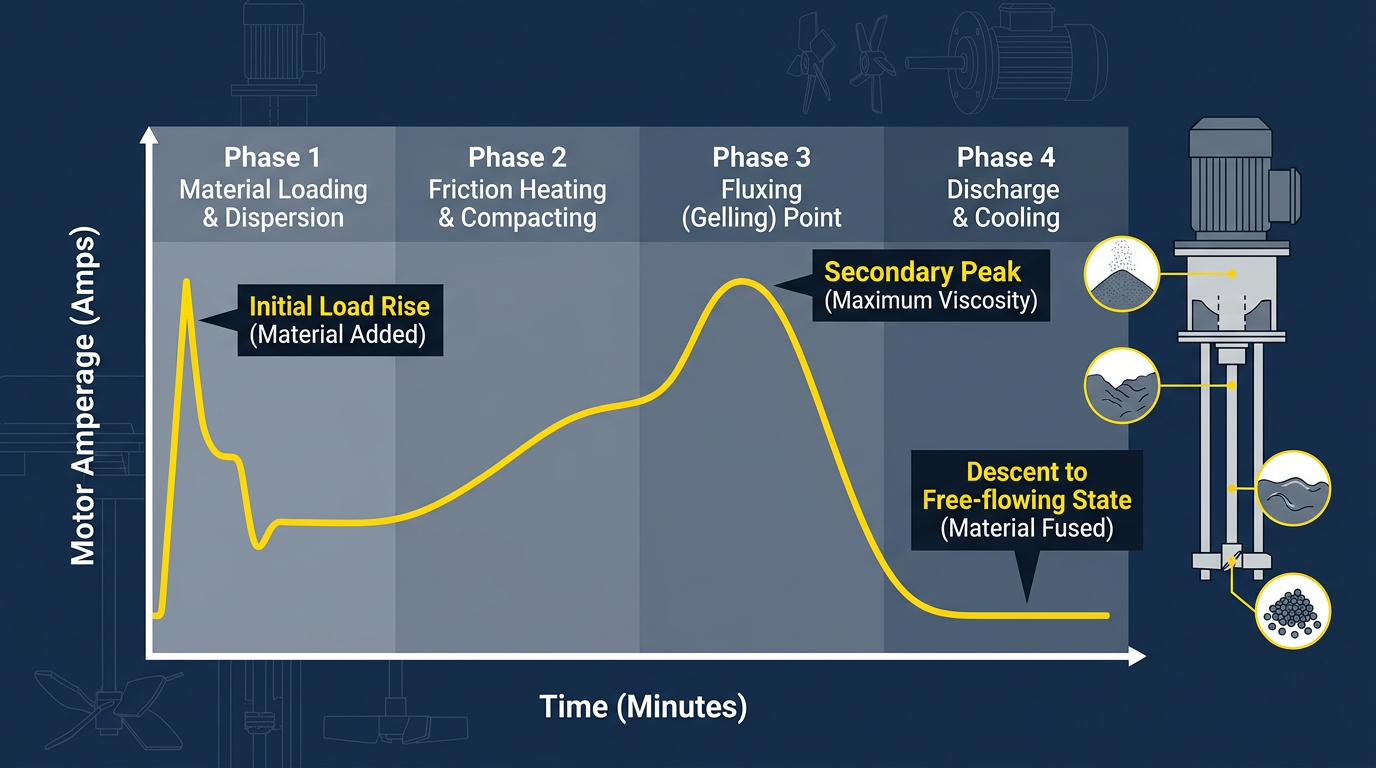

Reading the Ammeter
The motor load during DOP addition follows a four-phase pattern that is more reliable than temperature for judging absorption:
- Load rises — DOP adds weight and resistance as liquid coats the powder
- Load drops — agglomerates break down, material flows more freely
- Load rises again — swelling grains increase resistance as they absorb plasticizer
- Load drops and stabilizes — dry-off point reached; compound is free-flowing
When the ammeter settles at a stable reading after this sequence, the DOP is absorbed. If you discharge based on temperature alone, you risk pulling a batch before phase 3 completes.
Filler Addition and Discharge
After DOP absorption is confirmed (stable ammeter, free-flowing powder), hold the batch for one to three minutes before adding fillers and pigments. This hold time prevents filler particles from competing with PVC grains for the remaining free plasticizer. If filler goes in too early, it absorbs DOP that should be inside the PVC grain — and you get an under-plasticized compound with poor mechanical properties.
Add fillers at 90-100C with the mixer running at high speed. The total hot mixing cycle from initial resin charge to discharge should fall within 7-12 minutes. If your batch reaches discharge temperature in under seven minutes, extend the interval between batches — the compound likely has incomplete absorption even if the temperature reads correctly. If the cycle exceeds 12 minutes, check the thermocouple and inspect blade wear.
Discharge the compound at 110-120C into the cooler mixer. Exceeding 140C risks volatilizing stabilizer components and initiating thermal degradation, which shows up downstream as specks, discoloration, or fish-eye defects. The correct DOP dosage for your formulation determines how much thermal headroom you have — higher plasticizer loading lowers the compound’s heat sensitivity.
Cooler Mixer Procedure

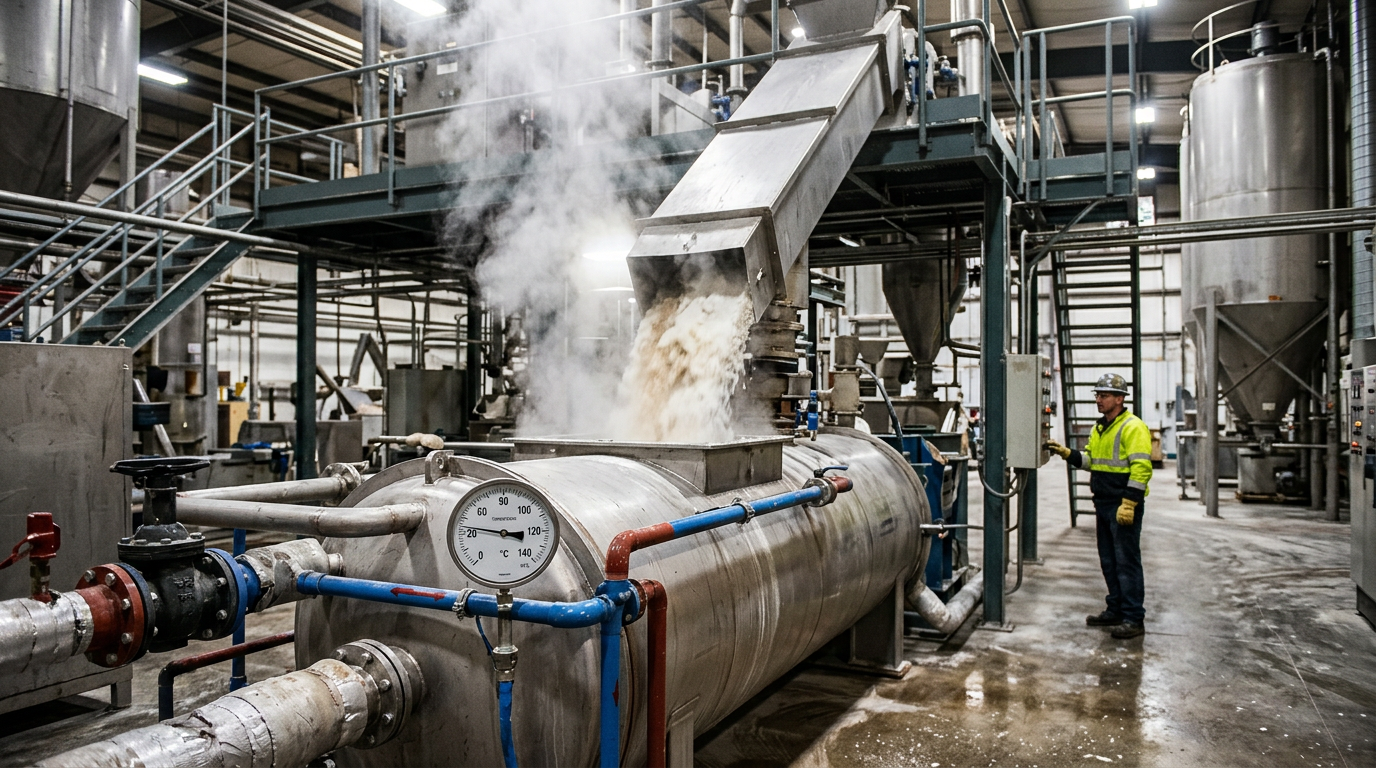

Discharge into the cooler mixer at 110-120C and start cooling immediately — delays let the compound sit at degradation-risk temperatures.
Cooling Parameters
Run cooling water at 13-15C through the cooler mixer jacket. Tumble the compound at approximately 450 RPM until it reaches 40-45C. Discharging above 45C risks moisture condensation during storage, which creates lumps and feeding problems at the extruder hopper.
Absorption Verification
Before sending a batch to storage, press a sample between two sheets of brown kraft paper. If the paper shows an oily stain, the DOP is not fully absorbed — the compound needs more cooling time or the hot mixing cycle was too short. A clean paper contact means the plasticizer is locked inside the grain structure.
Resting Period
After cooler discharge, store the dry blend in a sealed silo or container for at least 12 hours before processing. During this resting period, residual plasticizer continues migrating into the PVC grain interior. Apparent density improves from roughly 0.55 g/ml immediately after mixing to approximately 0.62 g/ml after 24 hours. Skipping this rest produces inconsistent extrusion output — the first batches off a fresh mix often run differently than later batches from the same lot. I recommend a 24-hour minimum rest for critical applications.
3 Mixing Mistakes That Cause DOP Absorption Failures
I troubleshoot these three failures more than all others combined. Each produces a compound that looks finished but performs poorly downstream.
Mistake 1: Adding DOP at Full Mixer Speed
Operators want fast cycle times, and the intuition is that high speed disperses plasticizer faster. The opposite is true. High-intensity blade tips atomize DOP into droplets too fine to settle onto grain surfaces — the plasticizer recirculates as a mist, coating the mixer walls and deflector instead of absorbing into PVC pores. The diffusion rate of DOP into PVC is slower than the heating rate of the mixer. Reduce RPM during addition, then return to high speed after all the DOP is charged.
Mistake 2: Using the Wrong Addition Temperature for Your Resin
A K-67 resin with 0.40 cc/g porosity absorbs DOP at 65C with ease. A K-58 resin with 0.25 cc/g porosity at that same temperature barely wets. There is no universal “correct” temperature — it depends on resin porosity and PHR loading. If you changed resin suppliers or grades and your compound suddenly comes out wet, the first thing to check is whether your addition temperature still matches the new resin’s absorption window.
Mistake 3: Adding Filler Before DOP Is Absorbed
Calcium carbonate and other fillers have enormous surface area. When they enter the mixer before DOP has fully penetrated PVC grains, filler particles absorb plasticizer that should be inside the resin. An apparently dry compound that is actually under-plasticized. Mechanical properties drop, and the extruder sees higher torque because the PVC never got its full plasticizer dose. Every PHR of DOP that goes to filler instead of resin shows up as reduced elongation and increased hardness.
Always confirm DOP absorption (ammeter stable, powder free-flowing) before charging any filler.
Key Takeaways
The procedure itself is straightforward — charge resin, stage additives by temperature, add DOP at 70-80C, discharge at 110-120C, cool to 40-45C. Where batches fail is in the judgment calls between those steps: reading the ammeter instead of relying on temperature alone, holding one to three minutes before filler addition, and matching your addition temperature to your specific resin’s porosity.
One thing I have learned after years of troubleshooting failed batches: the operators who produce the most consistent compound are the ones who can describe what their ammeter does during a good batch from memory. Build that baseline for your own equipment, and deviations will tell you exactly where the process drifted before the downstream extruder ever sees a problem.
