The most common reason PVC conduit installations fail inspection? Measuring to the bottom of the conduit instead of the top.
NEC requires 18 inches of cover for PVC conduit. Cover means the distance from finished grade to the top surface of the conduit, not how deep you dig the trench. For a 2-inch conduit, an 18-inch trench leaves only 16 inches of actual cover. That fails inspection.
This distinction trips up even experienced installers. Understanding NEC Table 300.5 and when exceptions apply will save you from digging twice.
What Is the Minimum Burial Depth for PVC Conduit?
PVC conduit requires a minimum of 18 inches of cover in most locations.

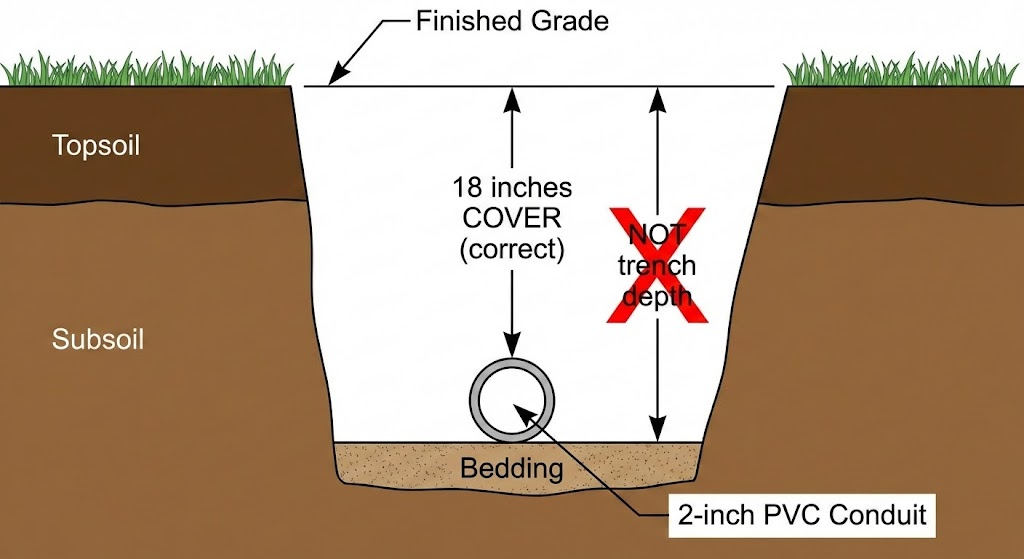

NEC Article 300.5 governs all underground wiring installations. The code defines “cover” as the shortest distance from the top surface of the conduit to the finished grade. This measurement point matters more than most people realize.
When digging your trench, add the conduit diameter to your minimum cover requirement. For 2-inch Schedule 40 PVC, you need an 18-inch cover plus the 2.375-inch outer diameter. Your trench must be at least 20.375 inches deep to the bottom.
Experienced electricians take this further. A Florida contractor on the Mike Holt Forum put it simply: “Go 20 inches to the top so there are no questions.” That 2-inch buffer above code minimum eliminates disputes with inspectors and provides margin for soil settling.
NEC Table 300.5 – Complete Burial Depth Reference
NEC Table 300.5 specifies minimum cover requirements for all conduit types and installation scenarios. The table applies to circuits of 0-1000 volts.
| Location | Direct Burial Cable | Rigid/IMC Metal | PVC/EMT Nonmetallic | GFCI 120V/20A Residential | Low-Voltage (30V or less) |
|---|---|---|---|---|---|
| Standard installation | 24″ | 6″ | 18″ | 12″ | 6″ |
| In trench below 2″ concrete | 18″ | 6″ | 12″ | 6″ | 6″ |
| Under a building | 0″* | 0″ | 0″ | 0″* | 0″* |
| Under 4″ concrete slab (no vehicle traffic) | 18″ | 4″ | 4″ | 6″** | 6″** |
| Under streets, highways, parking lots | 24″ | 24″ | 24″ | 24″ | 24″ |
| One/two-family dwelling driveways | 18″ | 18″ | 18″ | 12″ | 18″ |
| In solid rock with 2″ concrete cover | 2″* | 2″ | 2″ | 2″* | 2″* |
*Raceway required or Type MC cable identified for direct burial
**6 inches for direct burial; 4 inches in raceway
The table reveals why “18 inches for PVC” is only the starting point. Under a 4-inch concrete slab, your minimum drops to just 4 inches. Under streets and parking lots, it jumps to 24 inches regardless of conduit type.
All underground conductors must be rated for wet locations. Use THWN or THW wire. NEC 300.5(B) classifies all underground wiring as a wet location.
How Does Location Change Burial Depth Requirements?
Burial depth requirements vary significantly based on installation location. The wrong depth for your specific scenario will fail inspection.
Under Concrete Slabs

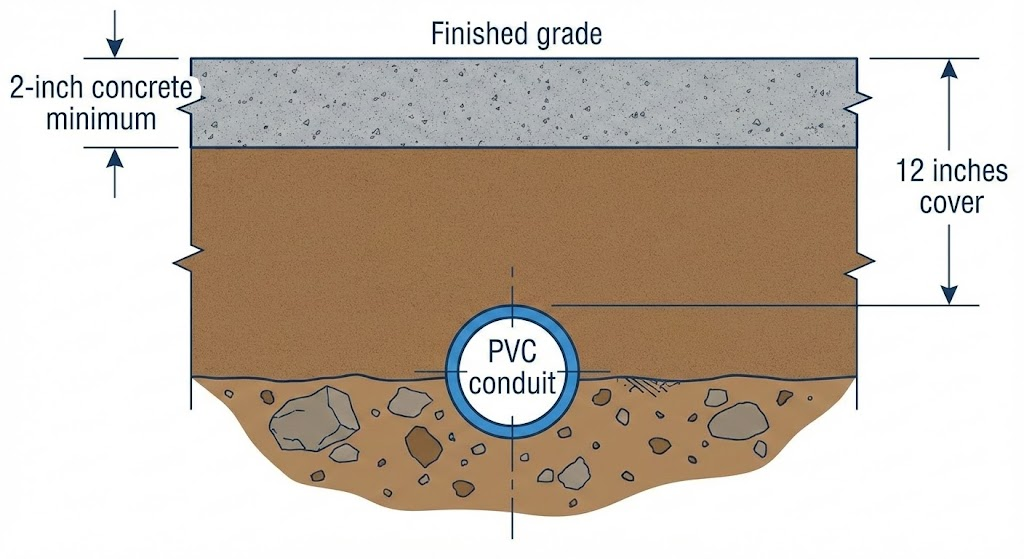

A 2-inch concrete slab above the conduit reduces PVC burial requirements from 18 inches to 12 inches. For 4-inch concrete slabs without vehicle traffic, minimum cover drops to just 4 inches. The concrete provides physical protection that offsets shallower burial.
Driveways and Vehicle Traffic Areas
Residential driveways at one or two-family dwellings require 18 inches of cover for PVC conduit. Streets, highways, and commercial parking lots require 24 inches for all conduit types. The increased depth protects against vehicle loads and compaction.
Under Buildings
Conduit installed under a building requires no minimum cover depth. However, the installation must use raceway. Direct burial cable under buildings requires specific MC cable types identified for that use.
Solid Rock Installations
When trenching through solid rock, minimum cover drops to 2 inches if you apply a 2-inch concrete layer over the conduit. This exception exists because solid rock already provides substantial protection.
Schedule 40 vs Schedule 80 – Which Do You Need Underground?
Schedule 40 PVC is permitted for standard underground burial installations. Schedule 80 is required where the conduit is subject to physical damage.
The practical distinction matters at transition points. NEC 300.5(D)(1) requires protection for conduit extending from minimum cover depth below grade to 8 feet above finished grade. Most jurisdictions interpret this to require Schedule 80 PVC for all stub-ups and exposed above-ground sections.

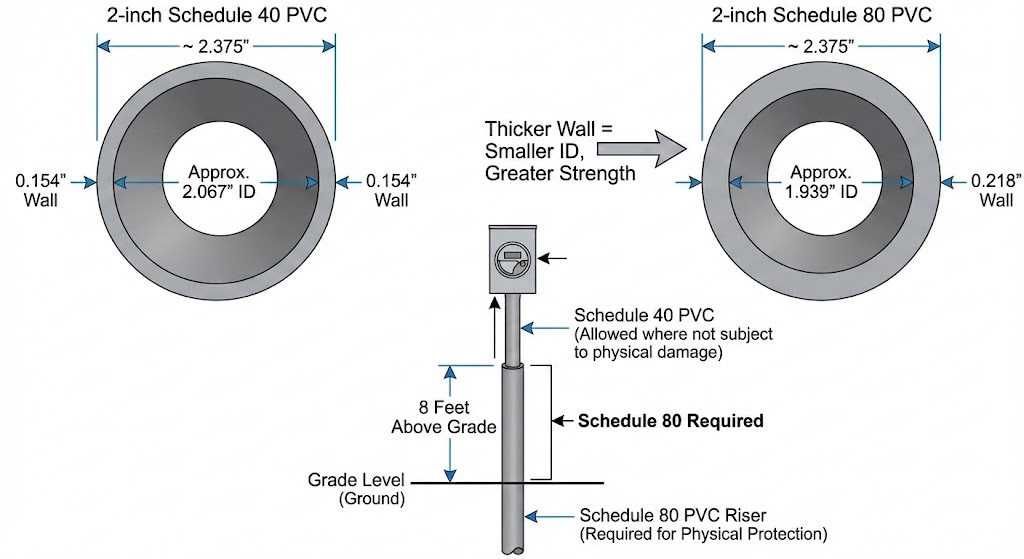

Schedule 80 has thicker walls than Schedule 40. A 2-inch Schedule 80 conduit has a 0.218-inch wall compared to 0.154 inches for Schedule 40. This extra thickness comes at a cost: smaller internal diameter means reduced wire fill capacity.
When transitioning from Schedule 40 underground to Schedule 80 at the riser, chamfer the Schedule 80 edges. The lip where conduits join can scrape wire insulation during pulling. This small step prevents conductor damage that would cause problems years later.
For most residential underground runs, use Schedule 40 for the buried portion and Schedule 80 only for the stub-up and any above-ground exposed sections. This balances cost, wire fill capacity, and code compliance.
Does PVC Conduit Need to Be Buried Below the Frost Line?
NEC does not require PVC conduit burial below the frost line.
This surprises many installers in cold climates. The frost line varies dramatically by region. Boston sits at 36 inches. Northern Minnesota and Alaska exceed 60 inches. Southern states may see only 12 inches. Yet NEC requires the same 18-inch minimum regardless of location.
Frost still affects installations in specific ways. Water that enters conduit can freeze and damage conductors. Frost heave can shift buried runs and stress risers. PVC becomes brittle in extreme cold and cracks more easily if struck.
Expansion fittings address frost-related movement. NEC 352.44(B) requires expansion fittings where length change is anticipated to be 1/4 inch or greater. Install these at building entries and risers where temperature differentials create the most movement.
Underground horizontal runs generally do not need expansion fittings. The surrounding soil constrains the conduit and prevents significant expansion or contraction.
How to Pass Inspection on Your First Try
Inspection failures delay projects and require rework. Most failures stem from a short list of preventable mistakes.
Common Inspection Failures:
- Inadequate cover depth – measuring to conduit bottom instead of top
- Wrong conduit schedule at stub-ups – using Schedule 40 where Schedule 80 is required
- Improper backfill – rocks, sharp objects, or corrosive materials touching conduit
- Missing expansion fittings at building entries
- Covering the trench before the inspector arrives
- No warning tape above the conduit run
- Open conduit ends without bell ends or fittings
The 2-inch buffer recommendation addresses more than just measurement margin. It accounts for soil settling after backfill compaction. Ground that looks level after installation may settle over years, reducing effective cover depth.
One area where inspectors disagree: whether pavers count toward cover depth. Some inspectors credit paver thickness as part of the cover. Others do not. If your installation relies on pavers for depth credit, confirm with your local inspector before backfilling.
Proper backfill matters as much as depth. Use sand or fine soil directly around the conduit. Rocks and debris can puncture PVC during compaction or from later ground settling. One electrician on Garage Journal shared an experience where direct burial cable in rocky soil lasted only 9 years before the insulation wore through from rock abrasion. The installation required complete replacement in conduit.
PVC Conduit vs Direct Burial Cable – Which Should You Use?
PVC conduit costs more upfront but provides significant advantages for permanent installations.
| Factor | Direct Burial Cable | PVC Conduit |
|---|---|---|
| Minimum cover depth | 24″ (or 12″ with GFCI) | 18″ |
| Installation time | Faster | More steps |
| Future wire additions | Impossible | Pull new conductors |
| Damage repair | Cut and splice | Replace conduit section |
| Physical protection | Insulation only | External barrier |
| Initial cost | Lower | Higher |
| Long-term cost | Higher if changes needed | Lower |
The depth difference alone often justifies conduit. Digging 6 fewer inches across a 100-foot run represents meaningful labor savings. In rocky soil, that difference compounds.
Direct burial makes sense for temporary or short-run applications where future changes are unlikely. For permanent infrastructure like service feeders, subpanel runs, or outbuilding feeds, conduit provides flexibility that proves valuable over decades.
Your Next Step
You now have the NEC requirements and practical guidance to install PVC conduit correctly. Before you start digging, call your local building department for a permit and confirm any local amendments to NEC burial depth requirements. Some jurisdictions have stricter standards than the national code.
