“I bumped the CaCO3 from 20 to 40 phr and the compound came out stiff as a board — same DOP level that worked fine before.” I hear versions of this from formulators every month. The filler ate their plasticizer, and the missing piece was always the same: how much extra DOP to add back. The oil absorption number (OAN) of your specific CaCO3 grade answers that question — and it varies by a factor of three between coated GCC and uncoated PCC. Once you know the OAN, you can estimate the plasticizer penalty before you even run a trial batch.
Why CaCO3 Steals Plasticizer During Mixing
During high-speed mixing, DOP absorption into suspension PVC follows a predictable four-stage sequence. First, plasticizer wets and adsorbs onto resin particle surfaces. Then it penetrates the porous grain skin through capillary action. Above 80 C — the glass transition threshold — DOP diffuses rapidly into the amorphous regions of the PVC grain, swelling it. Finally, the motor load peaks and drops as the dry blend completes.

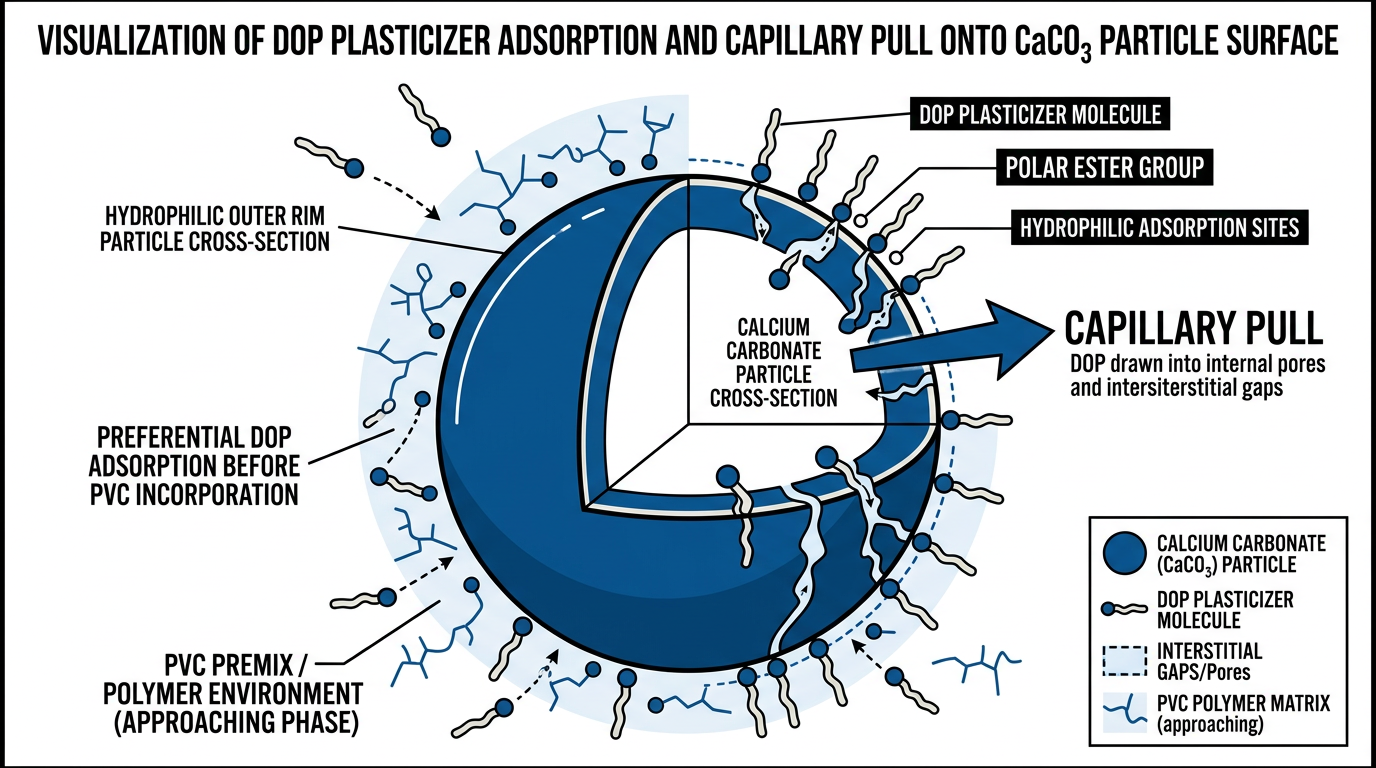

CaCO3 disrupts this process at Stages 1 and 2. Filler particles compete directly with PVC grains for liquid plasticizer during the initial wetting phase. High-surface-area fillers with porous structures — particularly precipitated calcium carbonate (PCC) — capture DOP in their internal pore network before the plasticizer ever reaches the resin. Less DOP reaches the critical diffusion stage that actually softens the PVC.

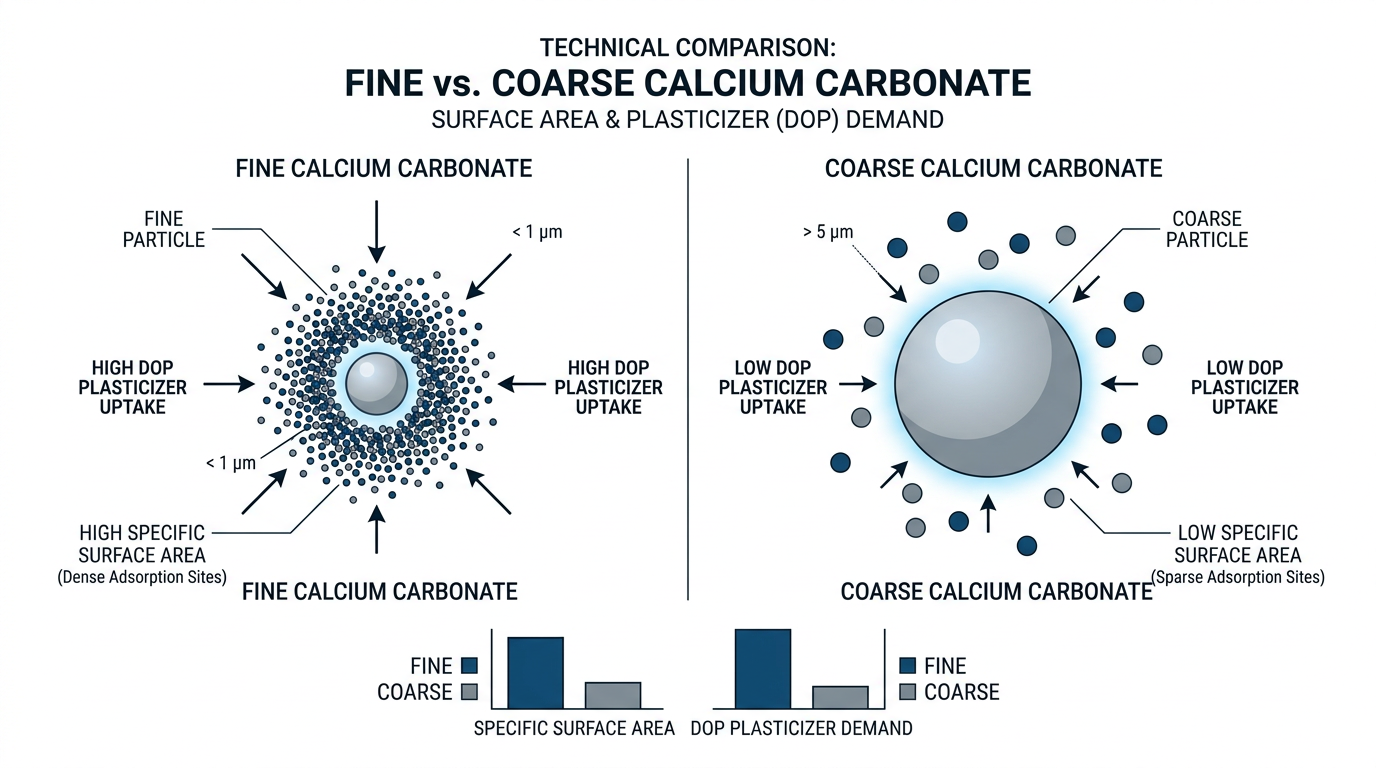

This is where CaCO3 grade selection creates a formulation trap. PCC looks attractive on paper — high purity, fine particle size, excellent whiteness. But its porous, high-surface-area structure absorbs plasticizer aggressively during mixing, starving the PVC resin. GCC, with its denser, more irregular morphology, does not absorb plasticizer to the same extent. For rigid UPVC where no plasticizer is present, PCC works beautifully. For flexible PVC, GCC is the functional choice specifically because it leaves DOP available for the resin.
The formulation ratio I recommend is to always match filler grade to compound type first, then adjust DOP second. Choosing the wrong CaCO3 grade creates a plasticizer deficit that no reasonable dosage increase can economically correct.
How Much Extra DOP Does Each CaCO3 Grade Absorb?
The oil absorption number — measured in milliliters of oil per 100 grams of filler by ASTM D281 — directly predicts how much plasticizer a filler grade will immobilize. Most CaCO3 suppliers publish OAN on their technical data sheets, but few formulators connect that number to their DOP budget.
| CaCO3 Grade | OAN (mL/100 g) | Relative DOP Demand |
|---|---|---|
| Coated (stearic acid treated) GCC | ~25 | Low |
| Ground calcium carbonate (GCC) | 40-60 | Moderate |
| Precipitated calcium carbonate (PCC) | 60-90 | High |
At 30 phr CaCO3 loading, switching from coated GCC (OAN 25) to uncoated PCC (OAN 80) means that filler is locking up roughly three times more DOP per unit mass. In practical terms, every 10 phr of uncoated PCC in a flexible formulation can demand several additional phr of DOP just to maintain the same Shore hardness — plasticizer that adds zero flexibility to the final product.
A rough estimation method: multiply filler loading (phr) by the OAN (converted to mL per gram), then express the result as the plasticizer volume trapped by filler. For a 40 phr loading of GCC with OAN 50, roughly 20 mL of oil per 100 g of compound filler is immobilized. That is DOP you must add on top of your baseline formulation.
Before adding to the mixer, ensure you have accounted for filler absorption in the total plasticizer charge. I have seen plants run months with a “mystery stiffness” problem that vanished once someone checked the OAN on the new filler shipment. The supplier had switched from a coated to an uncoated grade without flagging the change.
Treat the OAN as a mandatory line item in your formulation worksheet, not a footnote on the filler TDS.
Reducing the Plasticizer Penalty
Switch to Coated CaCO3
Stearic acid surface treatment is the most direct way to cut plasticizer waste from filler absorption. The fatty acid bonds chemically to calcium sites on the particle surface, and its hydrophobic aliphatic chain blocks pore access. The particle size and reinforcing behavior stay the same — only the surface chemistry changes. A PCC particle coated with approximately 3 wt% stearic acid drops from 60-90 to roughly 25-35 mL/100 g OAN. That single change can recover a large portion of the plasticizer penalty at moderate filler loadings.
The cost per kilogram of coated CaCO3 runs higher than uncoated. But for any formulation above 20 phr filler in flexible PVC, the DOP savings from reduced absorption typically outweigh the coating premium. Run the math on your specific formulation before defaulting to the cheapest filler.
Watch the Economic Crossover
Formulators add CaCO3 to cut cost, but the savings curve is not linear. Two hidden factors compound against you at high loadings.
First, higher filler loading raises compound specific gravity. To fill the same volume — the same pipe wall, the same sheet thickness — you need more mass. A compound at specific gravity 1.54 requires roughly 4.5% more material by weight than one at 1.47 to fill the same mold cavity.
Second, each additional phr of CaCO3 demands additional DOP that contributes zero flexibility. At some loading level, the combined cost of extra plasticizer plus extra compound mass plus reduced throughput exceeds the filler savings.
I have worked with processors who discovered their “cost-optimized” 60 phr filler formulation was actually more expensive per finished part than a 30 phr version — once they accounted for the DOP penalty, the volume correction, and the slower extrusion rate. Calculating effective plasticizer concentration in the final compound, not just the charge weight, reveals where the crossover sits for your specific product.
Key Takeaways
Request the OAN from your CaCO3 supplier before your next filler change — it is the one number that turns vague absorption warnings into a DOP adjustment you can calculate. Multiply OAN through your loading level and add the trapped volume back to your plasticizer charge. Where most formulations go wrong is not the initial recipe but the supplier change: a quiet switch from coated to uncoated CaCO3 shifts the OAN by 30-50 points, and the stiffness shows up weeks later when no one remembers the delivery note.
