A PVC bottle containing citric-based cleaner sat on a garage shelf for three years. Despite PVC’s excellent chemical resistance to citric acid, the bottle cracked at the base. The culprit was not the chemistry inside but the sunlight coming through the window.
This scenario illustrates why UV protection matters for PVC in outdoor or sunlight-exposed applications. The molecular structure of PVC makes it inherently susceptible to photodegradation, though the degradation process is inefficient enough that proper stabilization delivers excellent results.
How UV Degrades PVC

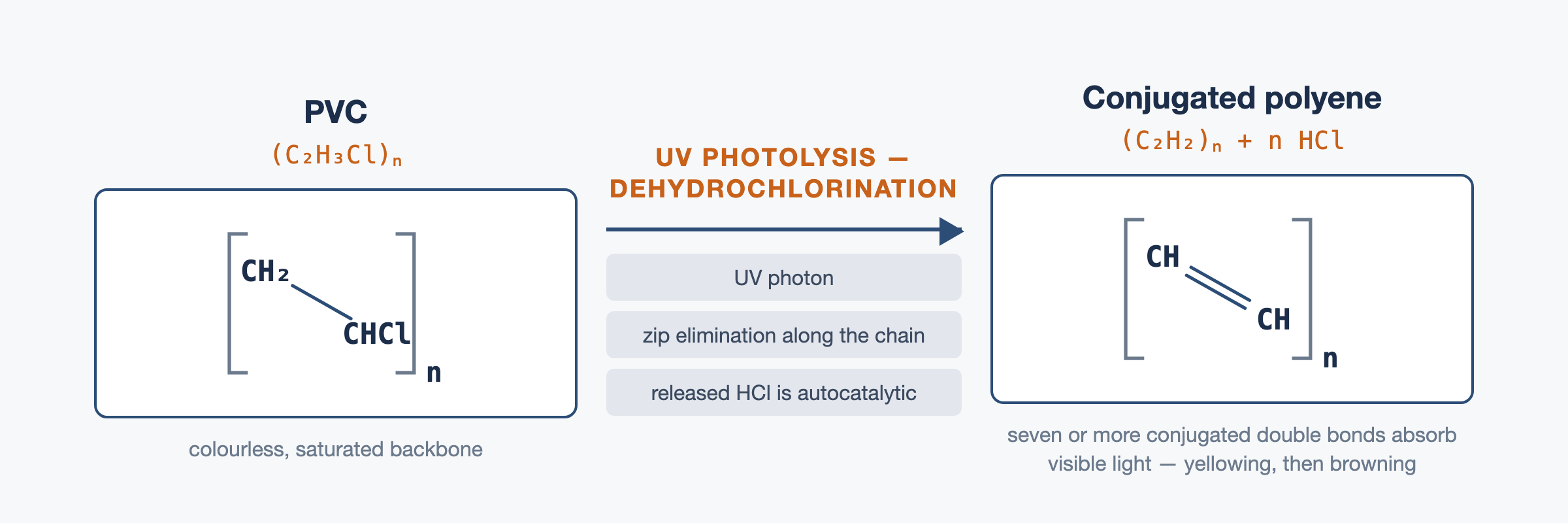

UV radiation triggers dehydrochlorination in PVC, releasing hydrogen chloride (HCl) and forming conjugated polyene sequences. These polyenes absorb visible light, causing the characteristic yellowing that signals early degradation.
This process is remarkably inefficient. Research shows the quantum yield of HCl evolution is only 0.011, meaning just 1 in 100 absorbed photons actually triggers dehydrochlorination. This inefficiency explains why UV absorbers work so well. Intercepting photons before they reach the PVC backbone prevents the chain reaction from starting.
In the presence of oxygen and moisture, the degradation accelerates through peroxidation pathways. An 11-year study of PVC roofing membranes quantified this damage: chlorine content dropped from 38.45% to 21.58% in exposed areas, while oxygen increased from 7.96% to 16.96%. The exposed membrane showed severe surface cracking, while protected sections retained integrity.
Chain scission dominates in most photodegradation scenarios, reducing molecular weight and causing embrittlement. One study documented molecular weight dropping from 250,000 to 35,000 after just 300 hours of UV exposure at 365 nm in unstabilized PVC. With proper stabilization, that same exposure only reduced molecular weight to 176,000.
Why HALS Fail in PVC
Hindered Amine Light Stabilizers (HALS) are the gold standard for polyolefins like polyethylene and polypropylene. In PVC, they often disappoint. The reason lies in the very degradation mechanism that makes PVC vulnerable.
HALS work by forming nitroxyl radicals that interrupt oxidation cycles. The problem is that HALS contain basic amine groups. When PVC degrades, it releases HCl. This acid protonates the amine, destroying the nitroxyl radical mechanism before it can protect the polymer. In my experience, compounders who transfer their polyolefin experience to PVC often learn this lesson the hard way.
Testing data shows HALS provide reasonable protection during the first 400 hours of UV exposure. After that, performance drops as accumulated HCl deactivates the stabilizer. For short-term applications, HALS might work. For long-term outdoor exposure, they are not reliable as standalone protection.
Two solutions exist. NOR-HALS (non-basic hindered amines) replace the basic nitrogen with ether linkages, preventing protonation. Alternatively, combining traditional HALS with acid scavengers and UV absorbers maintains the protective cycle. Either approach requires intentional formulation. Simply adding standard HALS at typical polyolefin loadings wastes money.
UV Protection Strategies
TiO2: The Primary Defense
Titanium dioxide remains the most effective UV protection for rigid PVC. The rutile form provides dual protection: absorbing UV radiation before it reaches the polymer matrix and scattering both UV and visible light to reduce penetration depth.
Loading levels depend on application requirements. Pipes intended for burial after brief installation exposure need 1.5-2 phr per Australian and New Zealand standards. Window profiles, siding, and other permanently exposed building products require 8-15 phr. This range reflects the different exposure intensities, not a disagreement among formulators.
The CSIRO demonstrated that yield stress remained unchanged after two years of outdoor exposure regardless of TiO2 concentration above the minimum threshold. Below 1.5 phr, protection drops sharply. Above approximately 10 phr, additional loading causes yellowing without improving protection. For profiles, 8-10 phr typically optimizes both UV resistance and color stability.
UV Absorbers: Benzotriazole vs Benzophenone
Organic UV absorbers complement TiO2 by targeting specific wavelength ranges. Benzotriazoles absorb across 270-400 nm and offer better compatibility with PVC than older benzophenone types. At 0.2-0.5 phr, they provide cost-effective supplemental protection.
Benzophenones absorb 260-350 nm and work well in unpigmented or lightly pigmented formulations. They are lower cost but also lower performance. For critical outdoor applications, benzotriazole types like UV-327 deliver better long-term results. For indoor applications with occasional sunlight exposure, benzophenone may suffice.
Testing UV Resistance
Standard tensile testing can miss UV degradation entirely. Tensile strength and modulus often remain stable while the material becomes dangerously brittle. The critical metric is fracture strain, which degrades dramatically before other properties change.
Research on outdoor-weathered polymers showed HDPE fracture strain dropping from 897% to 175% while tensile strength remained relatively stable. For PVC, this pattern means products can pass standard QC yet fail catastrophically in service. If you are qualifying UV-stabilized compounds, fracture strain testing per ASTM D638 provides earlier warning than tensile strength alone.
Accelerated weathering per ASTM G154 using fluorescent UV lamps correlates reasonably with outdoor exposure. Initial discoloration appears around 200 hours in unstabilized material. A two-year outdoor exposure limit is standard industry practice for storage. Material stored longer should be protected from sunlight or retested before processing.
Climate intensity matters significantly. Identical PVC pipes in Dhahran, Saudi Arabia showed 43% tensile strength loss after 24 months, while Florida exposure produced only 26% loss over the same period. For applications in high-UV regions, increase stabilizer loading or select higher-performance systems.
Final Considerations
The most common testing mistake I see is relying solely on tensile strength and color change. By the time these metrics shift noticeably, fracture strain has already collapsed. A profile that looks acceptable and tests within spec on tensile properties may have lost 80% of its impact resistance.
For compounders evaluating UV protection, fracture strain testing provides the clearest picture of remaining service life. ASTM D638 with elongation-at-break measurement catches degradation that standard QC protocols miss. This single test addition could prevent field failures that tensile testing would never predict.
