Most processors never run a resin test in-house. They accept the supplier’s certificate of analysis, file it, and find out a lot was borderline only when the defect shows up on the line weeks later.
Reading that certificate parameter by parameter — knowing which figure is a tolerance band and which is a ceiling, and which defect each out-of-spec value predicts — is the real incoming-inspection skill.
Which Parameters to Check on the CoA
Seven parameters decide whether an incoming suspension PVC lot is fit to run: K-value, apparent bulk density, volatiles, residual vinyl chloride monomer (VCM), fish-eye count, degree of polymerization, and aging whiteness. Each has a published acceptance value to compare the certificate figure against.
| Parameter | Acceptance value | Standard |
|---|---|---|
| K-value | K65-67 pipe, K55-57 fittings | ISO 1163 / GB/T 5761 |
| Degree of polymerization | 1050 ±50 | GB/T 5761-2018 |
| Apparent bulk density | 0.53 ±0.03 g/cm³ | GB/T 20022 |
| Volatiles (moisture) | 0.3% max | GB/T 2914-2008 |
| Residual VCM | 1.0 ppm max | GB/T 29814-2013 |
| Fish-eye count | 20 PC/400 cm² max | GB/T 4611-2008 |
| Aging whiteness | color change at 160°C/10 min | method-defined |
K-value sets molecular weight and processing viscosity, so everyone checks it first. The trap is treating it as a pass/fail gate on its own — a lot can sit dead-center in the window and still ship with high fines or low bulk density.
K-value is necessary, not sufficient. The K-value of PVC resin breakdown covers how the measurement runs.
Bulk density tells you how the resin will feed; a number below the band means fines. The bulk density of PVC resin drilldown explains why a K-66 pipe resin runs heavier (0.55-0.60 g/cc) than a K-70 soft-PVC resin (0.45-0.49 g/cc).
Volatiles, residual VCM, fish-eye count, and aging whiteness are the lines a quick scan skips as fine print — and where lot acceptance lives.
How to Read the CoA Value Correctly

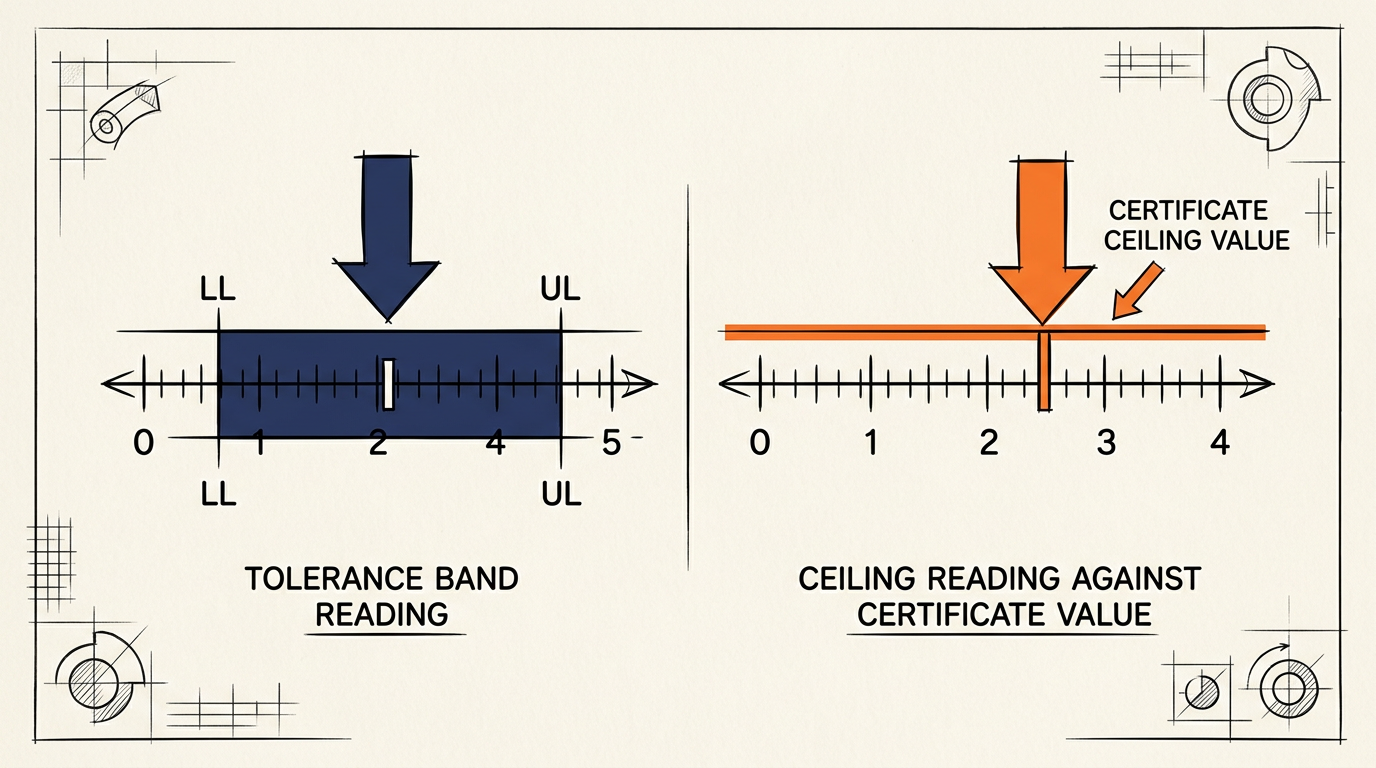

A certificate value is a range or a ceiling, never a single exact number, and reading it wrong is how good inspectors accept marginal lots. A figure with a ± sign (K-value 57±1) is a tolerance band; a figure stamped “max” is a ceiling.
A lot passes anywhere inside a band, but only below a ceiling — a value at the limit sits at the edge, not on target.
Read the tolerance exactly as printed. “K-value 57 ±1” means 56 to 58, not 55.6 to 58.4 — the ±1 is on the rounded figure, so do not widen the band for rounding.
That math is how a 55.8 lot slips through as “close enough.” Check the actual decimal value, not the rounded one.
The rationalization I hear most is skipping the incoming K-value test because “same supplier, same grade.” Two lots that both pass can sit a full point apart. A 2-point K-value mismatch produces about an 18% swing in melt viscosity — enough to turn a formulation that ran clean last month into one that throws fish eyes this month.
Verify incoming, and dial the formulation to this lot’s certificate, not the assumption.
That is why lot-to-lot CoA consistency beats any single figure. Bastone’s S-PVC and P-PVC grades (K57-K70) ship with a CoA covering all seven parameters, so the inspector reads every line, not just the headline.
Which Out-of-Spec Reading Predicts Which Defect
Each parameter is a leading indicator for a specific line defect, so an out-of-spec reading tells you what to test for before the defect appears. That lets you stop the bad lot at the dock instead of on the extruder.
- K-value off by ≥2 points shifts melt viscosity roughly 18% — expect fish eyes, scorch, or fill problems.
- Bulk density low means fines: poor flow, inconsistent feed, metering surge at the throat.
- Volatiles above 0.3% flash off in the barrel as gas marks, voids, and bubbles.
- Residual VCM above 1.0 ppm is a regulatory and odor failure, and a marker the resin was under-stripped.
- Fish-eye count above 20/400 cm² shows as visible ungelled specks in film or sheet.
- Aging whiteness poor (yellows fast at 160°C/10 min) flags weak thermal stability and early yellowing.
Porosity sits behind several of these. Low-porosity grains cannot absorb plasticizer into the core, so they stay ungelled and surface as fish eyes — the same defect K-value mismatch produces.
Cross-contamination does it too: a K-57 batch carrying stray K-67 grains won’t gel at the lower temperature. If fish eyes show on a lot that passed K-value, check porosity and cross-contamination next.
The hard part: bulk-average QC can pass while a few contaminated grains in millions still cause fish eyes. Particle size, bulk density, and porosity all read normal because the problem is statistical, not average — only lab processing that mimics your own conditions reveals it.

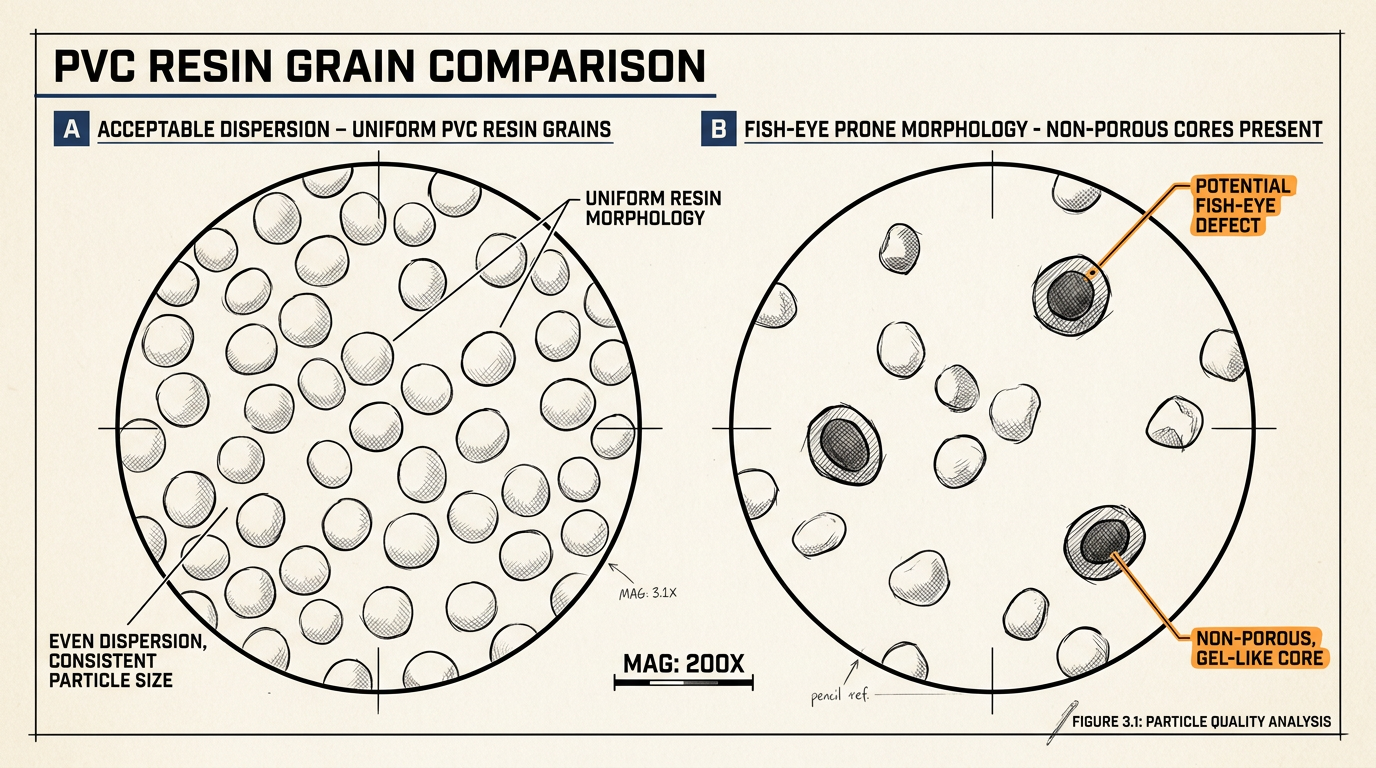

Disperse a sample in plasticizer for 30 minutes under an optical microscope: uniform grains are fine; grains with isolated dark, non-porous zones are fish-eye susceptible. A clean CoA does not rule out fish eyes. The fish-eye defects breakdown traces each root cause to the finished part.
What to Do When a Lot Is Borderline or Out of Spec
A lot reading at the edge of a ceiling gets quarantined and retested, not accepted on one certificate. The action depends on whether the deviation is on a band or a ceiling.
For a band parameter at the edge — K-value at 58 against a 56-58 band — run a confirming in-house test, then dial the formulation to the measured value rather than the band’s center. A 2-point K shift is recoverable if you adjust temperature for it; it is a scrap run if you learn it from the defect.
For a ceiling parameter at or over the limit — volatiles at 0.3%, residual VCM at 1.0 ppm — treat at-limit as reject-pending-retest, not a pass. Ceilings have no built-in margin; a lot at the ceiling has nowhere to drift but out.
Off-grade lots are the genuine edge case. They arrive without a clear production history, so the CoA is thinner, and a higher-than-spec melt flow batch causes processing trouble and weak parts.
Run the full incoming check yourself on off-grade — the cost savings vanish the moment one lot scraps a run. The same range-versus-ceiling reading carries to every additive; the plasticizer quality control specifications reference applies it to the plasticizer side.
Next Steps
Pull the certificate for your next incoming lot and read all seven lines before it reaches the floor — not just K-value. Mark which figures are bands and which are ceilings, and quarantine any lot sitting at a ceiling for a confirming test.
The shift that pays off is reading the CoA as a predictor, not a receipt — a K-value two points off is a viscosity warning on paper before it ever reaches the extrudate. Build the five-minute scan into receiving, and most defects you now diagnose on the line get caught at the dock instead.
