A 75°C cable batch passes Shore A but fails volume resistivity, and the lab supervisor wants to know which knob to turn. The phr split is fine. The calcium-stearate dose isn’t, and the discharge thermocouple drifted 8°C low on the previous shift — those two variables, not the DOTP loading, are why the resistivity reads in the 10⁹ range instead of 10¹².
Insulation phr ranges are well-published: 40-50 phr plasticizer, 6-8 phr stabilizer, 1-1.5 phr lubricant, ~10 phr filler. The upstream “why DOTP” decision is handled in the plasticizer selection guide for wire and cable PVC insulation. What separates a passing batch from a failing one is procedural discipline around three control variables: discharge temperature, addition order, and stabilizer-plasticizer compatibility.
Choose Your Starting Formulation Card by Temperature Class
The starting formulation depends on the cable temperature rating, not on a single recipe. Insulation grade sits in a 40-50 phr plasticizer / 6-8 phr stabilizer / 1-1.5 phr lubricant / ~10 phr filler envelope, with a 3 phr DOTP and 1 phr stabilizer adjustment between the 70°C and 90°C cards. Anchor to the rating, then revisit the plasticizer concentration only if line speed or wall thickness pushes you off-card.
70°C standard insulation
The starting recipe I run is PVC 100, DOTP 45, Ca-Zn stabilizer 7, calcium stearate 1.5, calcium carbonate 15. DOTP at 45 phr lands mid-window — soft enough for a 0.5-mm wall to bend through 6×OD, stiff enough to hold OD on a high-line-speed extruder.
75-90°C insulation
For a 90°C rating, drop DOTP to 42 phr and raise the Ca-Zn stabilizer to 8 phr. The lower load slows the volatilization curve at sustained service temperature; the extra stabilizer covers longer thermal exposure during accelerated aging. DOTP-only formulations cannot pass ISO 6722-1 Class B (105°C) — for sustained 105°C+ service, blend in DTDP or move to TOTM.
Thin-wall extra-flex
For appliance leads or retractile cords, push DOTP to 50 phr and accept the thermal trade. Above 50 phr, volume resistivity drops fast enough that you cap on the electrical side first — watch the resistivity number, not the Shore A.

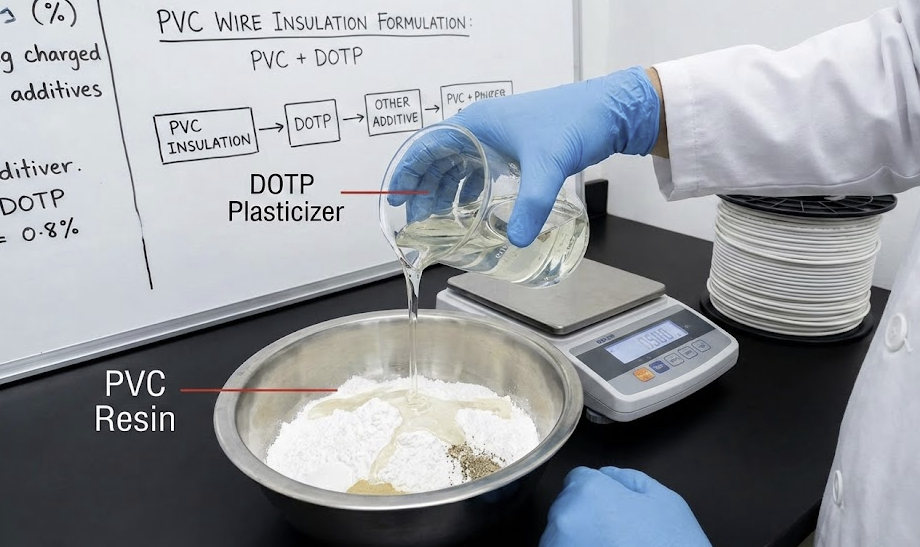

Pre-Heat Resin and DOTP to 80°C Before Adding Plasticizer
Plasticizer absorption is kinetic-limited diffusion into PVC pores, so the resin must reach 80°C before DOTP enters the mixer, and the DOTP itself should be pre-heated to 80°C to drop its viscosity. Yashodhan Kanade’s mixing-physics work makes this explicit: heat the resin alone for the first 1-2 minutes of high-speed mixing, watch the bowl thermometer, and only open the plasticizer port at 80°C.
If friction heat outpaces absorption, unabsorbed DOTP rides the resin surface to discharge — flowability tanks, fisheyes show up, and the batch reads as “wrong phr” when the phr is fine. Kanade’s drop-point rule covers this: complete absorption must finish before the drop point, and the drop point must sit below the plasticizer’s fusion temperature. Throttle mixer RPM if your DOTP load is at the high end of the card.
After DOTP, hold for 2-3 minutes before the next ingredient: stabilizer, then lubricant, then filler last. Filler before plasticizer is the most common addition-order failure I see — the filler agglomerates with unabsorbed plasticizer and produces the same fisheye signature as a cold-mix batch.
Mix the PVC Compound to a 120°C Discharge Temperature, Not by Time
Discharge by temperature, not by the clock. The 120°C discharge gate is the industry-rated index for hot-mix PVC, and a batch on a fixed 10-minute timer that discharges at 110°C fails where a thermocouple-gated batch passes.
If the mixer takes more than 12 minutes to reach 120°C, stop the line and check the instrument before adjusting the recipe. A drifted thermocouple, a worn blade, or a blocked steam jacket all read as “the formula isn’t gelling” when the real issue is upstream.
I’ve seen batches re-formulated three times to chase a phantom phr problem when the bowl thermometer was reading 8°C low — the formulation never moved, the thermocouple did. After discharge, transfer to a water-cooled mixer and bring the material to 50-60°C before storage.
Match the Stabilizer to DOTP, Not Just the Phr
Stabilizer-plasticizer compatibility is a defect predictor, not a checkbox. Ca-Zn chemistry is not interchangeable across plasticizers — a Ca-Zn grade tuned for DEHP can produce poor fusion, plate-out, or long-term exudation when paired with DOTP. The supplier should be tuning the synergistic additive package — polyols or epoxy compounds acting as plasticizer bridges — for DOTP service.
Calcium stearate caps at 1 phr; above ~1 phr at melt over 190°C, stearate phase-inverts and produces plate-out at the die land. Many recipes carry 1.5 phr by habit — drop to 1.0.
Ca-Zn systems also form water-soluble ZnCl₂ during thermal stress, which degrades volume resistivity directly. The stabilizer needs zinc-ion deactivators or chelators if your VR target sits above 10¹³ ohm-cm.
If the spec is non-phthalate and low-temperature flex, the plasticizer choice itself shifts — the DOA wire-insulation tutorial covers the cold-flex variant.
Run QC in Order: Volume Resistivity, Dielectric Strength, Shore A
QC sequence matters as much as the values. A failing batch reads differently depending on which test runs first, and out-of-order reading misroutes the diagnosis. Run them electrical first, mechanical last.
Resistividad de volumen
Volume resistivity (ASTM D257) is the most sensitive signal for over-plasticization, moisture, and stabilizer chemistry. Target 10¹² to 10¹⁴ ohm-cm.
A drop below 10¹¹ points at one of three things: DOTP load above the card by 5+ phr, residual moisture in resin or DOTP, or Ca-Zn stabilizer producing ZnCl₂. Check the moisture log first, the phr log second, the stabilizer chemistry third.
Rigidez dieléctrica
Dielectric breakdown (ASTM D149) reveals fusion quality and inclusion content rather than chemistry. A passing VR with a failing dielectric points at fisheyes, hard particles, or ungelled PVC the resistivity test averaged over — a mixing-temperature or addition-order failure, not a phr failure.
Shore A dureza
Shore A is the last gate. A fail here usually means the phr split is genuinely off — too soft means DOTP over-loaded, too hard means under-loaded or filler over-loaded. Don’t adjust phr on a Shore A read alone if VR or dielectric also failed; fix those first, retest hardness on the corrected batch.
Read Four Wire-Insulation Defects Back to a Formulation Variable
Each common defect maps to a specific procedural variable. Walk the diagnosis back to the variable below before adjusting the recipe — most “formulation problems” are addition-order, discharge-temperature, or stabilizer-pairing problems wearing a phr disguise.
Fisheye / specks / hard particles
For plasticized PVC, fisheyes come from low temperature, not high — the opposite of rigid PVC. Three root causes show up in this order: K-value mismatch (a K-57 + K-67 blend gels unevenly), calcium stearate above 1 phr causing phase inversion at >190°C, or DOTP added before the resin reached 80°C. Check the K-value certificate and the stearate dose first.
Plate-out at the die
Plate-out is low-molecular-weight material — usually calcium stearate or wax — separating onto the die land and showing as OD drift. Drop calcium stearate below 1 phr. Mineral spirits added drop-wise at the vacuum sizer clears active plate-out without a line stop, but the recipe-side fix is the stearate cap.
Plasticizer exudation
Exudation is the long-game defect — the cable looks fine at QC, oily surface bleed shows up months later in service. Root cause is Ca-Zn-DOTP incompatibility. The fix is upstream: a Ca-Zn grade with polyol or epoxy bridges tuned for DOTP, not a stabilizer-phr increase.
Low volume resistivity
Low VR is the over-plasticization or contamination signal. If the batch reads below 10¹¹ ohm-cm and the phr log is clean, suspects are moisture (resin or DOTP exposure to humid air), filler chemistry (uncoated calcium carbonate drops VR; stearate-coated raises it), and ESBO above 5 phr (secondary stabilizer up to 5 phr, electrical liability above).
The Mistake That Costs Most Failed Batches
The mistake I see most often is treating discharge temperature as a process default and addition order as a habit, instead of as the two control variables the QC result is reading. A 110°C discharge with the right phr and a 120°C discharge with the right phr produce different cable.
The lab will blame the phr every time, because phr is what gets logged. Log the discharge thermocouple reading next to the phr split on every batch card. The next time volume resistivity drifts, the answer is on the card before the lab opens the resistivity meter.
